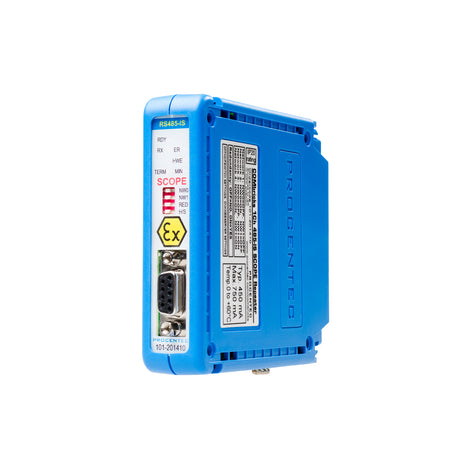

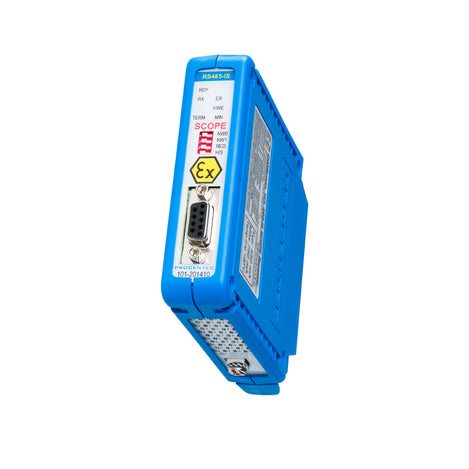

ComBricks RS485-Intrinsic Safety Scope Repeater

$675.00

Leave a review

SKU: GC-PB-CB-IS-485

MPN: 101-201410C

Manufacturer: Discontinued

Stock Status: Out of Stock

Delivery: Not available
Qualifies for Free shipping

THIS PRODUCT IS NO LONGER AVAILABLE.

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

The ComBricks RS485 is an Intrinsic Safety (IS) barrier that is used in potentially explosive atmospheres. This module offers the most advanced technology to remotely monitor IS segments over Ethernet and remain in the safe zones. The permanent mounting of the barrier allows the user to avoid contact after installation preventing hot permits or additional paperwork that would otherwise be necessary. It is intended to be installed outside the hazardous zones or in enclosed protection.

The RS485-IS complies with specification for PROFIBUS DP in IS while driving 31 RS485-IS devices. ProfiTrace and an Oscilloscope are also integrated for Intrinsic Safety.




Returns Not Accepted
All modules are certified for use in EX zones, and the chain of control between the Manufacturer and Authorized Distributor must be maintained at all times. Once a module is sold to an end customer, the chain of control is broken, and the module can not be resold to another customer - even in the case of unopened/unused products.

Features

  • Used in potentially explosive atmospheres
  • Used to remotely monitor from safe zones
  • Transparent for all PROFIBUS protocols


ATEX Electrical

  • Uo = 4.2 V
  • Io = 149 mA
  • Ui ≥ 4.2 V
  • Li ≈ 0 μH
  • Ci = Negligibly small
  • Output characteristic: Linear


ATEX Compliance

  • II (2) G [Ex ia Gb] IIC
  • EN-IEC60079-0: 2012
  • EN-IEC60079-11: 2012
  • EN-IEC60079-25: 2010
  • Certification number: DEKRA 12ATEX0192
  • Compliant with the PNO RS 485-IS Installation Guidelines V1.1

Documents and Drivers

Documentation

ComBricks RS485-Intrinsic Safety Scope Repeater Product Card View (PDF)
ComBricks RS485-Intrinsic Safety Scope Repeater Datasheet View (PDF)
ComBricks RS485-Intrinsic Safety Scope Repeater Installation Guidelines View (PDF)
ComBricks User Manual View (PDF)

Downloads

ComBricks DWG Drawing Download (ZIP)

Certification

ComBricks RS485-Intrinsic Safety Scope Repeater ATEX Certificate View (PDF)

Specifications

BACKPLANE

  • 4 Networks selectable with switches
  • 10 Modules (positioned in the first 10 slots)
  • 450 mA current consumption

CABLE LENGTH

1200 m cable length (depends on baud rate)

CERTIFICATIONS

ATEX Compliance

  • II (2) G [Ex ia Gb] IIC
  • EN-IEC60079-0: 2012
  • EN-IEC60079-11: 2012
  • EN-IEC60079-25: 2010
  • Certification number: DEKRA 12ATEX0192
  • Compliant with the PNO RS 485-IS Installation Guidelines V1.1

CHANNELS

  • 1 Bus channel
  • 31 devices/bus-loads per channel

CONNECTORS

1 DB9 connector

DIMENSIONS

120 x 103 x 25 mm

MPN

101-201410C

OSCILLOSCOPE

  • Frequency: 192 MS/s
  • Resolution: 27 mV
  • Differential Range: -3.49.. +3.49 V

PRODUCT WEIGHT

150 g (5.3 oz)

PROTOCOLS

  • Transparent for all PROFIBUS protocols
  • 9.6 kbps - 1.5 Mbps (auto detection)
  • 2 bits delay time (12 bits in redundant mode)
  • No address required
  • Bus redundancy (selectable)

TEMPERATURE RANGE

Operating Temperature : 0.6 ºC

VOLTAGE

ATEX Electrical

  • Uo = 4.2 V
  • Io = 149 mA
  • Ui ≥ 4.2 V
  • Li ≈ 0 μH
  • Ci = Negligibly small
  • Output characteristic: Linear
