Contactless-DB9/DC cable (CH1)
Contactless-DB9/DC cable (CH1)
Product Images

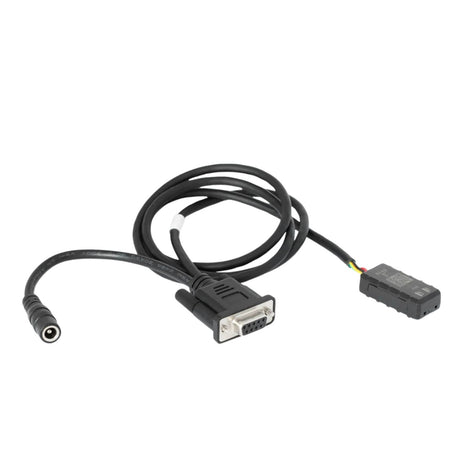

Contactless-DB9/DC cable (CH1)
$119.95
SKU: GC-CSS-CAN-READER
MPN: A032
Manufacturer: CSS Electronics ApS
We Have You Covered
Product Information
Product Description
Reading CAN bus data doesn't have to mean cutting wires. The Contactless CAN Bus Reader attaches directly to CAN H/L wiring and captures data through electromagnetic induction — no splicing or connector access required.
It operates in listen-only mode, leaving the bus entirely undisturbed. Warranty protection stays intact and cybersecurity compliance holds — the adapter draws no power from the bus and transmits nothing onto it.
Compatible with CANedge data loggers and CANsub interfaces. Built for fleet telematics and industrial applications where connector access is limited, including UN ECE R155-regulated environments requiring read-only network access.
Installation
Prepare the adapter:
- Open the housing carefully using a plastic pry tool
- Remove the backing from the double-sided tape
- Insert the CAN-H and CAN-L wires on the marked surface
- Close the housing until it clicks into place
The adapter is now ready to connect to your CAN logger or interface.
Connect your CAN logger or interface:
- Connect the DB9 cable to CH1 (or a secondary channel, if available) on your CAN logger or interface
- Connect the DC connector to a 10–30V power supply using a compatible DC power adapter
- Set the bit rate to match the target CAN bus — auto-detect is not supported
- Confirm your CAN logger or interface is not operating in silent mode
DB9 Adapter pinout
| DB9 (female) | Function | DC Connector |
| 1 | ||
| 2 | CAN-L | |
| 3 | GND | Outer |
| 4 | ||
| 5 | ||
| 6 | ||
| 7 | CAN-H | |
| 8 | ||
| 9 | VCC | Center |
Features
- Non-invasive connection — clips to CAN H/L wiring without cutting, splicing, or voiding warranties
- 100% listen-only mode — silent on the bus, with zero risk of disrupting CAN traffic
- No connector port required — works where OBD2, J1939, or standard ports are unavailable or inaccessible
- Protocol support — compatible with SAE J1939, OBD2, CANopen, NMEA, and High Speed CAN Bus (ISO 11898-2)
- Compatible devices — works with CANedge, CANsub, CANsub.4 (with DB25-4xDB9 adapter), and CANmod.router (with adapter cable)
- External DC power input — 5.5mm ID × 2.1mm CPD connector for stable, independent power supply
- Compact adapter head — 40 × 18 × 17 mm profile fits tight installation spaces
- Status LED — single indicator for quick connection verification
Specifications
Bit rate range
5K to 1M bps
Supply voltage
10–30V nominal
Current draw
<6.9 mA at 12V
Cable length (DB9-Molex)
100 cm (39 inches)
Cable Length (DB9-to-DC)
20 cm (7.87 inches)
Compatibility
High Speed CAN Bus (ISO 11898-2) incl. SAE J1939, OBD2, NMEA, CANopen
Note: CAN FD is NOT supported
Operating temperature
-25°C to +85°C (-13°F to +185°F)
Weight
80g
Adapter head
40 x 18 x 17 mm (1.57 x 0.7 x 0.7 inches)
Adapter DC Connector
5.5 mm (ID) x 2.1 mm (CPD) (0.21 inches (ID) x 0.8 inches (CPD))
IP Rating
IP30
