HWg Current Sensor 0-20mA 1W-UNI

$196.90

Leave a review

SKU: GC-HWG-CC-0-20

MPN: 600566

Manufacturer: HW Group sro

Delivery: Ships within 7-14 business days
Qualifies for Free shipping to the continental US

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

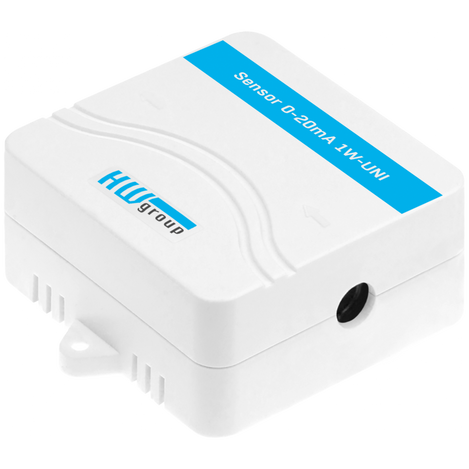

The 0-20mA 1W-UNI is an isolated DC current sensor for the 1Wire-UNI bus that measures currents in the 0-20mA range. Typically, it is used to connect an industrial probe with 0 to 20mA output with a discrete power supply (e.g. to measure the fuel level in a tank). The sensor current output is processed in a Poseidon2 or Ares unit (sold separately), and is accessible via LAN or GSM / LTE.

The sensor is equipped with an 8-points calibrating table/curve to set measured output appropriate to related industrial sensor. The calibration process is supported by 1W-UNI USB calibrator USB dongle (sold separately).

Note: Do not use this sensor with the HWg converter 4-20mA. Use the alternative sensor 4-20mA 1W-UNI.



Applications and usage:

  • Connecting industrial sensors to Poseidon or Ares systems

  • Connecting current transformers

  • Connecting electronic scales

  • Measuring the concentration of CO2 or other gases

  • Connecting pressure transducers or other industrial sensors

  • Signal converter – sensor to measure 0-20 mA from an external current source to 1-Wire UNI bus (RJ11) output.

Measuring Output

Measure the output current of any external industrial sensor that sources 0-20 mA (“source” type). For example, the output current of a current transformer.

Almost any industrial sensor can be connected to Poseidon2 or Ares units in this way. The values can be shared over LAN or GSM. When the current is out of a specified range, e-mail or SMS is sent. Can be connected to remote monitoring systems that are based on SNMP or Modbus/TCP.


  • The 0-20mA input is electrically isolated from the 1-Wire UNI bus (RJ11).

  • The sensor can be used in industrial environments.

  • Sensors can be daisy-chained (two RJ11 connectors).

  • Powered from the 1-Wire UNI bus (RJ11) or from an external power adapter.

  • Output reading in [mA] can be calibrated and/or converted to other units directly in the sensor.

Features

  • Input: 0-20mA (connect a “source” type of probe).
  • Electrical isolation: Yes
  • Protection: 63 mA fuse

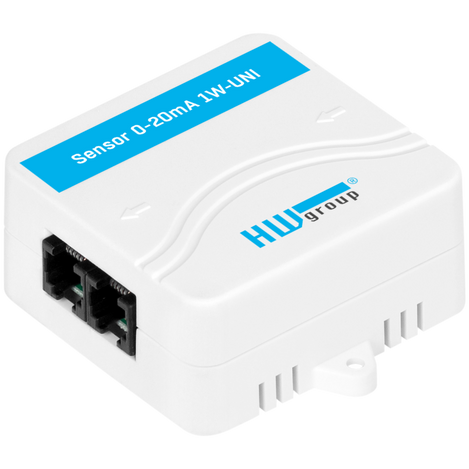

  • Interface: 1-Wire UNI (2x RJ11 for daisy-chaining)
  • Connects to: Ares 12/14, Poseidon2 or Poseidon 2250 (all sold separately)
  • Environment: Converter to be installed indoors
  • Power: Bus-powered (1-Wire UNI) – max. 2 sensors per active port

Documents and Drivers

Documentation

Sensor 0-20mA 1W-UNI Flyer

Sensor 0-20mA 1W-UNI EC declaration of conformity

Specifications

MEASUREMENT

Cable length

3 meter

Galvanic isolation

Yes

Units Converter

Yes

Calibrated Points

8

Number of values provided

1

CURRENT

Range

0–20 A

Accuracy

± 2% of the whole range

Resolution

0.1

Technology

Converter

POWER & DIMENSIONS

Connector

RJ-11 (from 1-Wire)

Power supply

5V

Consumption

20mA

Operating environment

-30°C - 85°C (-22°F ~ 185°F) / 0% RH – 100% RH

Storage Temperature

-30°C – 60°C (-22°F ~ 140°F) / 5% RH – 95% RH

Dimension (W x H x D)

79 x 68 x 30 mm (3.1 x 2.7 x 1.2 in)

Weight

120 g (0.26 lbs)

OTHER

Environment

Industrial

Installation

Table, Wall

Enclosure

IP23

Connector

RJ11
