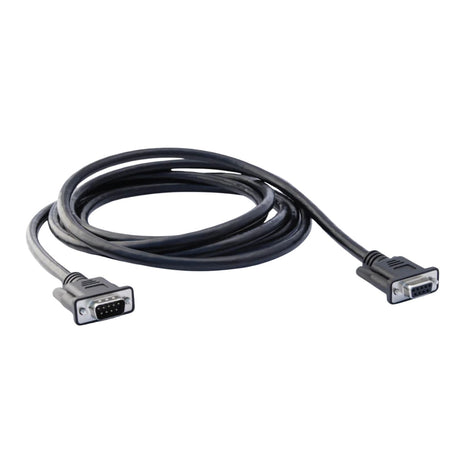

DB9-DB9 Extension Cable (3M)
DB9-DB9 Extension Cable (3M)
Product Images
DB9-DB9 Extension Cable (3M)
$48.95
SKU: GC-CSS-DB9-DB9-EXT-CABLE
MPN: A005
Manufacturer: CSS Electronics ApS
We Have You Covered
Product Information
Product Description
The DB9-DB9 Extension Cable gives you 3 meters of reach for any CAN bus (Controller Area Network) device with a DB9 connector. Use it to position a CAN logger or interface away from the main junction — useful wherever the target device sits in a hard-to-reach location.
Built to the CiA 303-1 pinout standard, the cable is non-terminated, so multiple units link end-to-end for greater reach. DB9 screw locks keep the connection secure. Maximum total bus length at 1 Mbps is 40 meters per CAN bus standards.
Adapter pinout
| DB9 (female) | Function | DB9 (male) |
| 1 | VCC (5V) | 1 |
| 2 | CAN-L | 2 |
| 3 | GND | 3 |
| 4 | LIN Data 1 | 4 |
| 5 | N/C | |
| 6 | GND (Optional) | 6 |
| 7 | CAN-H | 7 |
| 8 | N/C | |
| 9 | VCC | 9 |
Features
- 3-meter reach — extends CAN loggers and interfaces to remote or hard-to-access locations
- DB9 male-to-female — compatible with any CAN device using the standard DB9 pinout
- CiA 303-1 compliant — supports High Speed CAN, CAN FD, SAE J1939, OBD2, NMEA, and CANopen
- Non-terminated connectors — link multiple cables end-to-end for greater reach
- DB9 screw locks — secure connection in vibration-prone environments
- 22 AWG construction — 0.50 mm² conductors rated from -20°C to +80°C (-4°F to +176°F)
Specifications
Cable Length
3 m (9.8 ft)
Cable Thickness
22 AWG (0.50 mm2)
Connectors
9-pin D-sub (DB9) male to female
Operating temperature
-20°C to +80°C (-4°F to +176°F)
Weight
360G (0.79 lbs)
Compatibility
High Speed CAN Bus (ISO 11898-2) incl. CAN FD, SAE J1939, OBD2, NMEA, CANopen
