DT06-to-DB9/DB9 Adapter
DT06-to-DB9/DB9 Adapter
Product Images
We Have You Covered
Product Information
Product Description

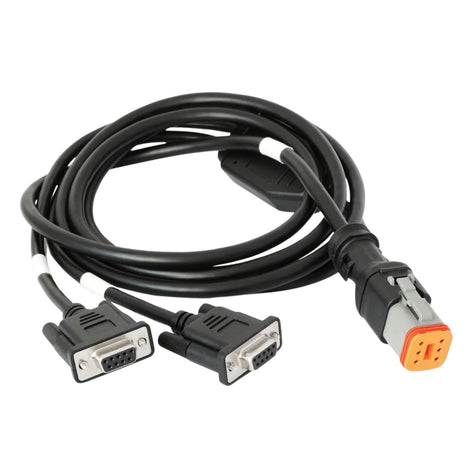

Connect a CAN logger or interface to your Volvo Penta engine in minutes. This adapter cable fits the DT06-6S Deutsch connector found on Volvo Penta marine engines and provides simultaneous access to both CAN channels — no splicing, no custom wiring.
Pair it with a CANedge data logger or CANsub CAN interface for plug-and-play recording or streaming of 2 x CAN networks in parallel. It also works with select equipment from Franz Kleine, MTS-Sandei, Kalmar, Terbert, and Sandvik.
Adapter pinout
| DT06-6S | Function | DB9 - CH1 | DB9 - CH2 |
| 1 | CAN-L (CH1) | 2 | N/C |
| 2 | CAN-L (CH2) | N/C | 2 |
| 3 | CAN-H (CH1) | 7 | N/C |
| 4 | GND | 3 | N/C |
| 5 | CAN-H (CH2) | N/C | 7 |
| 6 | VCC | 9 | N/C |
Features
- Dual-channel access — CAN 1 and CAN 2 routed to separate DB9 connectors for parallel logging
- Waterproof DT06-6S connector built for marine environments
- Lock mechanism for fast, secure installation
- Rugged 1.5m cable with overmolded DB9 connectors — built to hold up in the field
- DB9 pinout follows CiA 303-1 standard for compatibility with industry-standard CAN interfaces
- RoHS compliant
Specifications
Cable length
150 cm (59 inches)
Connectors
2 x 9-pin D-sub (DB9) female → DT06-6S female
Cable gauge
22 AWG (0.50 mm²)
Operating temperature
-20°C to +80°C (-4°F to +176°F)
Weight
280g
