ATOP EH7512 - 12-Port Managed Fast-Ethernet Switch, PoE, Gigabit Uplinks, Profinet Certified
ATOP EH7512 - 12-Port Managed Fast-Ethernet Switch, PoE, Gigabit Uplinks, Profinet Certified
Product Images
ATOP EH7512 - 12-Port Managed Fast-Ethernet Switch, PoE, Gigabit Uplinks, Profinet Certified: No PoE
$909.00
SKU: GC-ATOP-EH7512-4G-4SFP
MPN: 1P1EH751200004G
Manufacturer: Atop Technologies Inc.
POE Ports
-
$909.00
-
$969.00
-
$1,049.00
We've Got You Covered
1 year comprehensive warranty support for all products
30 day money back guarantee
*some exceptions apply
Product Information
Product Description
The EH7512 12-port Industrial Managed Fast-Ethernet switches are highly reliable and fault-tolerant. Being Profinet CC-B v2.33 certified, these switches are Automation and IoT ready. Profinet allows wired and wireless combinations for an array of connectivity options, providing a more effective backbone for your automation operations.
There are 8 10/100 BASE-T(X) RJ-45 ports and 4 Giga combo ports. With their high performance switching capacity, a network redundant self-recovery mechanism is less than 20ms on full load which allows you to scheme a reliable Ethernet network by building a redundant ring topology as your back-up solution.
The EH7512 switches comply with the IEC62443 standard for authentication interface management functions such as identifying users, user accounts and password policies,
A multifunctional web dashboard offers intelligent features such as Quality of service (QoS), Virtual LAN (VLAN), IGMP, Port mirroring and security.
Designed for Industrial rugged applications, these switches have a 5-pin terminal block to provide dual redundant power inputs with Reverse Polarity Protection, and two sets of relay which allow field engineers to build up a stand-alone fault alarm system. Its IP30 housing protection, wide operating temperature of -20 to 70°C and DIN-Rail mounting enable these switches to remain functional in industrial field applications.
Order Summary
SKU |
Ethernet |
POE Ports |
SFP Ports |
Manufacturer Part # (MPN) |
|---|---|---|---|---|
| GC-ATOP-EH7512-4G-4SFP | 8 10/100 | 0 | 4 | 1P1EH751200004G |
| GC-ATOP-EH7512-4G-4POE-4SFP | 8 10/100 | 4 | 4 | 1P1EH751200001G |
| GC-ATOP-EH7512-4G-8POE-4SFP | 8 10/100 | 8 | 4 | 1P1EH751200002G |
Features
- Up to 8 10/100 BASE-T(X) ports and 4 10/100/1000 BASE-T(X) Combo ports
- Up to 8 802.3af or 802.3at compliant PoE ports
- ERPS Ring (recovery time < 20ms @ 40 switches), STP/RSTP for network redundancy
- Remote management over Web browser, Telnet console, serial console, and Windows Utility
- CE/FCC/UL and NEMA TS-2 for Traffic control applications certified
- Profinet CC-B v2.33 certified and GSDML file provided
- Security features based on IEC62443-4-2
Documents and Drivers
Documentation
ATOP EH7512 12-Port Switch Datasheet
ATOP EH7512 12-Port Switch Hardware Installation Guide
ATOP Industrial Ethernet Switches Product Selection Guide
Specifications
Connector(s)
Removable 5-pin Terminal Block for power input

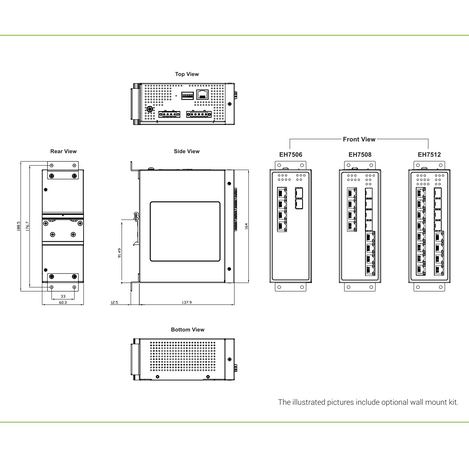

Dimensions
60.3mm x 137.9mm x 164mm
Housing
IP30 protection, metal housing
Humidity
5%~95%, 55°C (Non-condensing)
Indicators LED
PWR1, PWR2, Alarm, Run, Ring, Ring Master, RJ-45 Link/Speed, SFP Link, PoE
Input Current
- Max. 1.5A @ 18VAC
- Max. 2.0A @ 9VDC (without PD)
- Max. 3.2A @ 45VDC (Support up to 8 ports at 15.4W per PoE port)
- Max. 5.5A @ 51VDC (Support up to 8 ports at 30W per PoE port)
Input Voltage
- 9-48 VDC or 18~30VAC for Non-PoE models
- 45-57 VDC for 802.3af mode
- 51-57 VDC for 802.3at mode
Mounting
DIN-Rail, Wall Mount
MPN
1P1EH751200004G, 1P1EH751200001G, 1P1EH751200002G
Ports
- RJ45 Ports: 10/100/1000BASE-T(X) or 10/100 BASE-T(X) auto negotiation speed
- Fiber Ports: 100BASE-FX / 1000BASE-X SFP slot
Product Weight
Approx 1.2 kg (Max.)
Temperature Range
- Operating: -20°C~70°C (-4°F~158°F)
- Storage: -40°C~85°C (-40°F~185°F)
