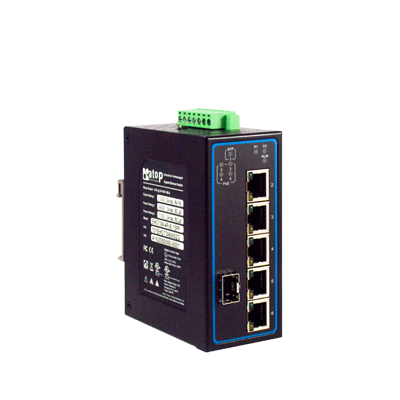

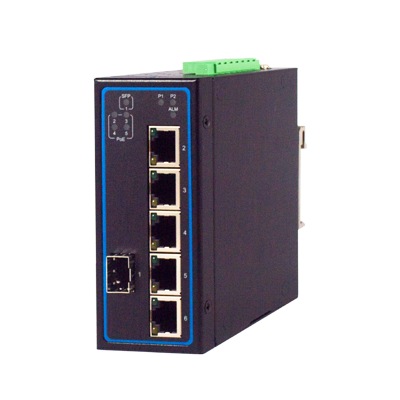

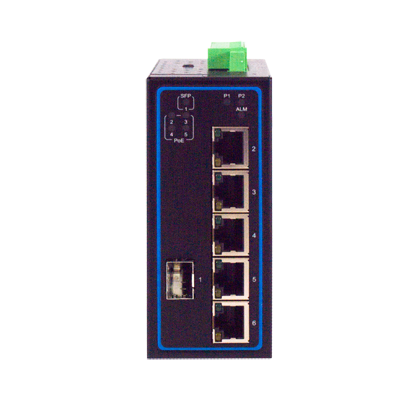

ATOP EHG7306 Switches - Industrial 6-Port Unmanaged Gigabit Ethernet, PoE: No PoE

$249.00

Leave a review

SKU: GC-ATOP-EHG7306-1SFP

MPN: 1P1EHG73060001G

Manufacturer: ATOP Technologies

Delivery: Ships within 1-2 weeks
Qualifies for Free shipping

PoE Ports

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

The EHG7306 is 6 Port Unmanaged Gigabit Ethernet Switch with PoE option. It is designed to work in mission critical environments such as mining and heavy industry.

The switch has 6-ports,  5 are 10/100/1000 Base-T(X) RJ45 ports and 1 is a 100/1000 Base-F(x) SFP port. With high performance and non-blocking switching capacity, EHG7306 can fulfill the increasing demand in industrial networking. Its PoE capability of 30W per port up to 4 ports simplifies the wiring in complex fields, where every cable is an added cost.

The equipped terminal block provide dual redundant power inputs with Reverse Polarity Protection and relay output which allows field engineers to build up a fault alarm system. Its IP30 housing protection and DIN-Rail mounting capacities enables it to handle most industrial field applications.



Order Summary



SKU

Ethernet

PoE Ports

SFP Ports

Manufacturer Part # (MPN)

GC-ATOP-EHG7306-1SFP 0
1 1P1EHG73060001G
GC-ATOP-EHG7306-4POE-1SFP 4
1 1P1EHG73060002G

Features

  • EHG730X series support maximum 5 x 10/100/1000 Base-T(X) RJ45 ports, 1 x 100/1000 Base-F(x) SFP port and 1 x 1000 Base-X SFP port*
  • Up to 4 802.3af or 802.3at compliant PoE ports
  • Support 10K Jumbo frames
  • Supports 802.3az Energy Efficient Ethernet for power savings
  • Works from -40°C~70°C
  • Failed power input alarm contact
  • Certified by UL 61010-2-201 and UL C1D2/ATEX Zone 2
  • EN50155 / EN50121-4 certified for Railway and Trackside applications

Documents and Drivers

Documentation

ATOP EHG7306 Series Industrial 6-Port PoE Unmanaged Gigabit Ethernet Switch Datasheet

ATOP EHG7306 Series Industrial 6-Port PoE Unmanaged Gigabit Ethernet Switch Hardware Installation Guide

Specifications

Connector(s)

Terminal Block

Dimensions

  • Non PoE: 32 x 90 x 110 mm
  • PoE: 45.3 x 89.6 x 110 mm

High Power Relay Outlet

24 V / 0.5A

Housing

IP30 protection according to EN 60529

Humidity

5%~95%, 55°C (Non-condensing)

Indicators LED

PWR1, PWR2, Alarm, RJ45 Act/Link, SFP Link, PoE

Input Current

  • System: 0.6A @ 12V
  • With PoE: 2.6A @ 51 V

Input Voltage

12-52 VDC

Mounting

DIN-rail or wall-mount

MPN

1P1EHG73060001G, 1P1EHG73060002G

Power Consumption

  • Max System: 7.2 W
  • Max with PoE: 130 W

Product Weight

  • Non PoE: 420g
  • PoE: 350g

Temperature Range

  • Operating: -40°C~70°C (-40°F~158°F)
  • Storage: -40°C~85°C (-40°F~185°F)
