ATOP EHG7307 Industrial PoE Unmanaged Gigabit Ethernet Switches



ATOP EHG7307 Industrial PoE Unmanaged Gigabit Ethernet Switches

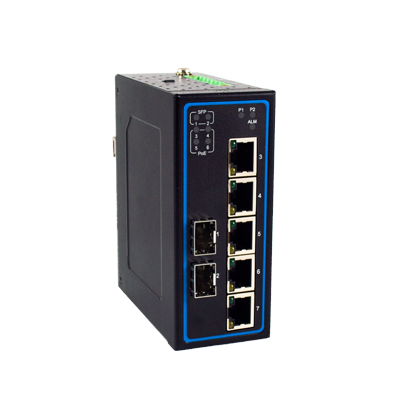

Product Images
ATOP EHG7307 Industrial PoE Unmanaged Gigabit Ethernet Switches: No PoE
$269.00
SKU: GC-ATOP-EHG7307-2SFP
MPN: 1P1EHG73070001G
Manufacturer: Atop Technologies Inc.
PoE Ports
-
$269.00
-
$369.00
We Have You Covered
Product Information
Product Description

The EHG7307 are PoE industrial Gigabit Ethernet switches designed to work in mission critical environments such as mining and heavy industry. These unmanaged switches support a maximum 5 x 10/100/1000 Base-T(X) RJ45 ports, 1 x 100/1000 Base-F(x) SFP port and 1 x 1000 Base-X SFP port.
With their high performance and non-blocking switching capacity, the EHG7307 switches are able to fulfill the increasing demand in industrial networking. With PoE capability of 30W per port up to four ports, the wiring is simplified in complex fields, where every cable is an added cost.
The equipped terminal block provides dual redundant power inputs with Reverse Polarity Protection and relay output allowing field engineers to build up a fault alarm system. Its IP30 housing protection, wide operating temperature of -40 to 70°C and DIN-Rail mounting capacities work in most industrial field applications.
Order Summary
SKU |
Ethernet
|
PoE Ports
|
SFP Ports |
Manufacturer Part # (MPN) |
---|---|---|---|---|
GC-ATOP-EHG7307-2SFP | 5 10/100/1000 | 0 |
2 (1 100/1000, 1 1000) | 1P1EHG73070001G |
GC-ATOP-EHG7307-4POE-2SFP | 5 10/100/1000 | 4 | 2 (1 100/1000, 1 1000) | 1P1EHG73070002G |
Features
- EHG7307 support maximum 5 x 10/100/1000 Base-T(X) RJ45 ports, 1 x 100/1000 Base-F(x) SFP port and 1 x 1000 Base-X SFP port
- Up to 4 802.3af or 802.3at compliant PoE ports
- Support 10K Jumbo frames
- Supports 802.3az Energy Efficient Ethernet for power savings
- Works from -40°C~70°C
- Failed power input alarm contact
- Certified by UL 61010-2-201 and UL C1D2/ATEX Zone 2
- EN50155 / EN50121-4 certified for Railway and Trackside applications
Documents and Drivers
Documentation
ATOP EHG7307 Switch Datasheet
ATOP EHG7307 Switch Hardware Installation Guide
ATOP Industrial Ethernet Switches Product Selection Guide
Specifications
Connector(s)
Terminal Block
Dimensions
45.3 x 89.6 x 110 mm
High Power Relay Outlet
24 V / 0.5A
Housing
IP30 protection according to EN 60529
Humidity
5%~95%, 55°C (Non-condensing)
Indicators LED
PWR1, PWR2, Alarm, RJ45 Act/Link, SFP Link, PoE
Input Current
- System: 0.6A @ 12V
- With PoE: 2.6A @ 51 V
Input Voltage
12-52 VDC
Mounting
DIN-rail or wall-mount
MPN
1P1EHG73070001G, 1P1EHG73070002G
Power Consumption
- Max System: 7.2 W
- Max with Poe: 130 W
Product Weight
350g
Temperature Range
- Operating: -40°C~70°C (-40°F~158°F)
- Storage: -40°C~85°C (-40°F~185°F)
