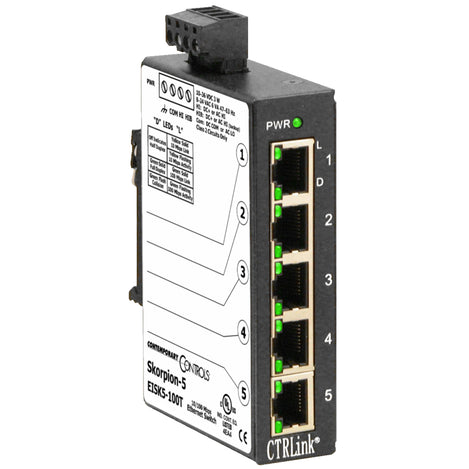

The EISK5 is a powerful, simple 5 port 10/100Mbps industrial ethernet switch that can address many factory and building applications. The small thin profile allows for easy DIN rail mounting and minimizes the use of panel space.
The EISK5 can use either AC or DC power, which connects directly to the terminal block connect on the top of the switch. Both standard power and a backup power supply can be used to provide redundant power to the switch and thus giving you a more reliable system.

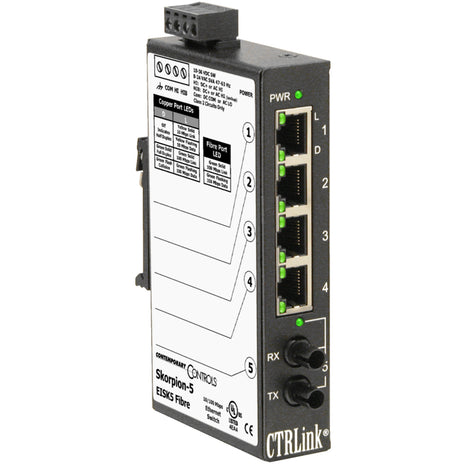

The EISK provides LED indicators for power and each individual Ethernet connection. The standard EISK has copper RJ45 connections, but a single fiber port is available using the SC (round) connector or ST (square) connector.
The fiber cable types are also available, MM (Multimode) and SM (single mode) for various distance requirements.
|Dimensions||100 x 26 x 70 mm|
|Enclosure||IP30, Metal Enclosure|
|Indicators led||Activity/Link & Data Rate|
|Mpn||EISK5-100T, EISK5-100T/FT, EISK5-100T/FC, EISK-100T/FCS|
|Speed||10/100 Mbps, Auto Sensing|
|Voltage||Input: 10-36 VDC (5-7 watts) or 8-24 VAC (47-63Hz) (5-7VA), redundant input|
