EISK8 - 8 Port 10 / 100 Industrial Switch
Industrial Switch - EISK8
Industrial Switch - EISK8 Fiber
Industrial Switch - EISK8 Fiber 2
EISK8 - 8 Port 10 / 100 Industrial Switch
Product Images

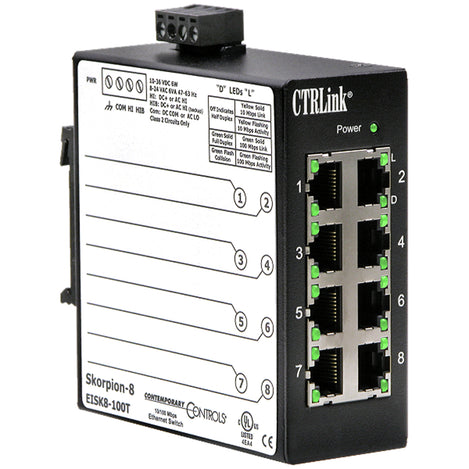

EISK8 - 8 Port 10 / 100 Industrial Switch: No Fiber Port
$168.00
SKU: GC-ENET-EISK8
MPN: EISK8-100T
Manufacturer: Contemporary Controls
Stock Status: In stock
Fiber Port
-
$168.00
-
$394.00
-
$507.00
-
$394.00
We Have You Covered
Product Information
Product Description
The EISK8 is a powerful, simple 8 port 10/100Mbps industrial switch that can address many factory and building applications. The small thin profile allows for easy DIN rail mounting and minimizes the use of panel space.
The EISK8 can use either AC or DC power, which connects directly to the terminal block connect on the top of the switch. Both standard power and a backup power supply can be used to provide redundant power to the switch and thus giving you a more reliable system.
The EISK provides LED indicators for power and each individual Ethernet connection. The standard EISK has copper RJ45 connections, but a single fiber port is available using the SC (round) connector or ST (square) connector.
The fiber cable types are also available, MM (Multimode) and SM (single mode) for various distance requirements.
Order Summary
SKU |
Fiber Port |
Manufacturer Part # (MPN) |
---|---|---|
GC-ENET-EISK8 | None | EISK8-100T |
GC-ENET-EISK8-SC-MM | (2 Ports) SC (Square) MM (Multimode) | EISK8-100T/FC |
GC-ENET-EISK8-SC-SM | (2 Ports) SC (Square) SM (Single Mode) | EISK8-100T/FCS |

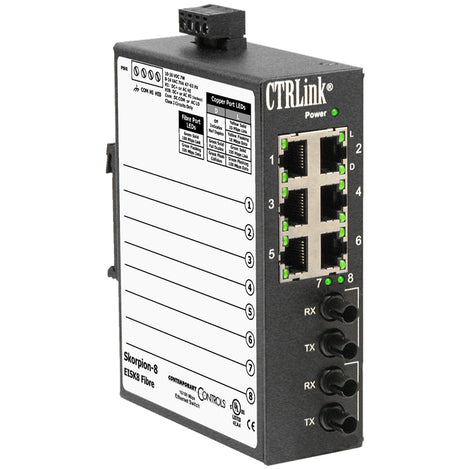

GC-ENET-EISK8-ST-MM | (2 Ports) ST (Round) MM (Multimode) | EISK8-100T/FT |
Features
- 8, 10/100 Mbps ports
- Optional 2 Fiber ports
- Ethernet activity, Power LED's
- Single DIN rail mounting
- Power connection using AC or DC with redundant backup support
Documents and Drivers
Documentation
EISK8 Datasheet
EISK8 Installation Guide
Specifications
Control Signals
Temperature: -40°C to +85°C
Enclosure
IP30, Metal
Firmware
Input: 10-36 VDC (5-7 watts) or 8-24 VAC (47-63Hz) (5-7VA), redundant input
Humidity
5% to 95% (non-condensing)
Mounting
- RoHS: Lead Free
- CE Mark: European Emissions
- C-UL, CSA 22.2: Industrial Control Equipment
- UL508: Industrial Control Equipment
MPN
EISK8-100T, EISK8-100T/FT, EISK8-100T/FC, EISK8-100T/FCS
Pins
- Copper: 6 or 8 RJ45, Auto MDIX
- Fiber: 0 or 2, SC or ST connectors, SM or MM fiber type
Protocols
Activity/Link & Data Rate
Speed
10/100 Mbps, Auto Sensing
Temperature Range
-10°C to +60°C (14°F to 140°F)
Voltage
110 x 41 x 70 mm
