#{ '$' + (selectedVariant.price/100).toFixed(2) } $46.35

Encrypted Xport Serial to Ethernet Extended Temperature


MPN: XP1002000-05R

Delivery: Ships same or next business day

Availability: in stock

30 day Money Back Guarantee *Some Exceptions Apply

Warranty: 1 year Comprehensive support for all products

Authorized North America Distributor Stamp

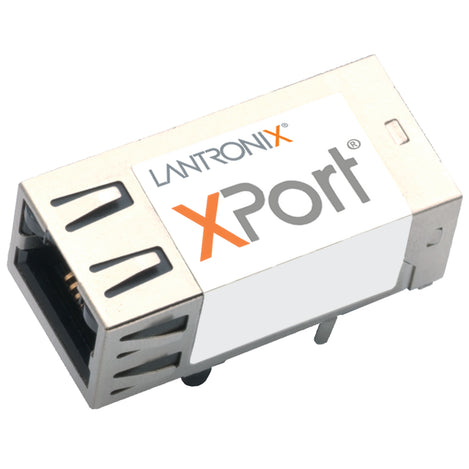

Same as the regular version of XPort except encryption is supported (128 bit AES US Government, Rijndael approved). Change your serial port into an Ethernet port with no changes to your embedded software. The XPort is a device server packaged inside a single RJ45 connector. The XPort will take your serial data stream and convert it to Ethernet packets. A web server is also built in to XPort, which allows you to design your own pages and interface with your product from the Internet. The XPort has three available pins that can be used as general purpose Inputs or Outputs.   Grid Connect specializes in Customizing XPorts!

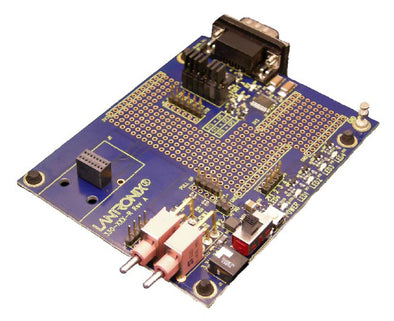

The XPort has a evaluation board available which allows the user to develop custom applications for the XPort.

We provide complete technical support for this product with knowledgeable engineers that know how to use the product. We offer phone support and on-line chat support during regular business hours.

Baud rate Serial: Up to 921 Kbaud
Interfaces Network: 10/100M Ethernet
Mpn XP1002000-05R
Pins 3 Input/Output pins available for custom program use
Temperature range Operating: -40°C to +85°C


XPort Product Brief View (PDF)
XPort Data Sheet View (PDF)
XPort User Guide View (PDF)
XPort Integration Guide View (PDF)
Web Enabling Your Device Server View (PDF)


Current DeviceInstaller Lantronix Website
Current Com Port Redirector Lantronix Website


We have the best technical support engineers that know how to use our products. If our Tech Support cannot solve your problem, we will contact the design engineer or manufacturer to help find a resolution.
