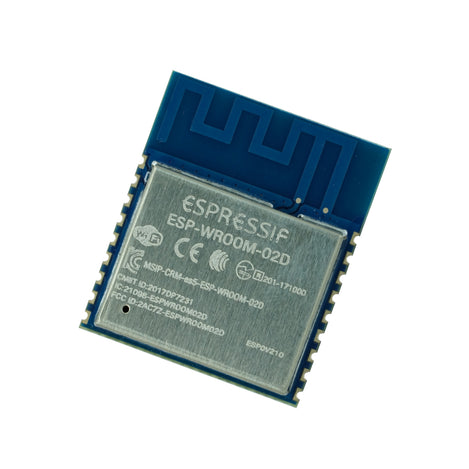

ESP-WROOM-02D - Low-Power Wi-Fi Module with PCB Antenna
ESP-WROOM-02D - Low-Power Wi-Fi Module with PCB Antenna
Product Images
ESP-WROOM-02D - Low-Power Wi-Fi Module with PCB Antenna: 2MB Flash
$1.10
SKU: GC-ESP-WROOM-02D
MPN: ESP-WROOM-02D-N2
Manufacturer: Espressif Systems
Stock Status: In stock
Flash Memory
-
$1.10
-
$1.22
-
$3.05
We Have You Covered
Product Information
Product Description
The ESP-WROOM-02D is a low-power Wi-Fi 802.11 b/g/n module with optimized RF performance and an internal PCB antenna. It’s low power consumption and compact size (18 x 20 x 3.2 mm) makes the device perfect for space restricted Internet of Things (IoT) applications.
Created around the ESP8266EX chip, the device offers a Tensilica L106 32-bit RISC processor and a maximum clock speed of 160 MHz. The integrated chip supports SPI flash memory with options of 2MB or 4MB.
80% of the processing power is available for development and customizations through the Real-Time Operating System (RTOS) and Wi-Fi stacks. A large collection of sample code and information is available on GitHub.
Common applications include:
- Internet of Things (IoT) solutions
- Home automation
- Industrial wireless control
- Wearable electronics
- Sensor networks
- Wi-Fi location-aware devices
Order Summary
SKU |
Flash Memory |
Operating Temperature |
Manufacturer Part # (MPN) |
---|---|---|---|
GC-ESP-WROOM-02D (SALE) | 2 MB | -40ºC to 85ºC (-40ºF to 185ºF) | ESP-WROOM-02D |
GC-ESP-WROOM-02D-N4 | 4 MB | -40ºC to 85ºC (-40ºF to 185ºF) | ESP-WROOM-02D-N4 |
GC-ESP-WROOM-02D-H2 | 2 MB | -40ºC to 105ºC (-40ºF to 221ºF) | ESP-WROOM-02D-H2 |
Features
- Wi-Fi 802.11 b/g/n
- Integrates with the ESP8266EX chip
- Internal PCB antenna
- Optimized RF performance
- 2 MB or 4 MB SPI flash memory
- Tensilica L106 32-bit RISC processor
- 26-MHz crystal oscillator
- Secure (encrypted) over the air (OTA) upgrades
- SRRC, FCC, CE (RED), IC, NCC, KCC, TELEC (MIC) certified
- Programmable RAM/ROM interface (iBus)
- Programmable Data RAM interface (dBus)
- AHB interface accesses the register
Documents and Drivers
Documentation
ESP-WROOM-02D Datasheet
ESP8266 Datasheet
ESP8266 Quick Start Guide
Downloads
ESP8266 AT Bin
Specifications
Antennas
Internal On-Board PCB Antenna
Certifications
- RF: SRRC, FCC, CE (RED), IC, NCC, KCC, TELEC (MIC)
- Green: RoHS, REACH
Dimensions
18 mm x 20 mm x 3.2 mm
Firmware
- Upgrade: UART Download / OTA (via network)
- Download and write firmware via host
Frequency Band
Wi-Fi frequency: 2.4 GHz ~ 2.5 GHz (2400M ~ 2483.5M)
Interface(s)
- UART/HSPI/I2C/I2S/IR Remote Control
- GPIO/PWM
Memory
2 MB or 4 MB
MPN
ESP-WROOM-02D
Pins
18
Power
- Average Current: 80 mA
- Minimum Current: 500 mA
Protocols
- Wi-Fi: 802.11 b/g/n (802.11n up to 150 Mbps)
- Network: IPv4, TCP/UDP/HTTP/FTP
Security/Protection
- Security: WPA/WPA2
- Encryption: WEP/TKIP/AES
Software
- Supports Cloud Server Development
- SDK for custom firmware development
Temperature Range
- Operating: -40ºC to 85ºC (-40ºF to 185ºF)
- Storage: -40ºC to 85ºC (-40ºF to 185ºF)
- High Temp option: -40ºC to 105ºC (-40ºF to 221ºF)
Timers
On board clock: 26 MHz crystal
Voltage
Operating: 2.7V ~ 3.6V
