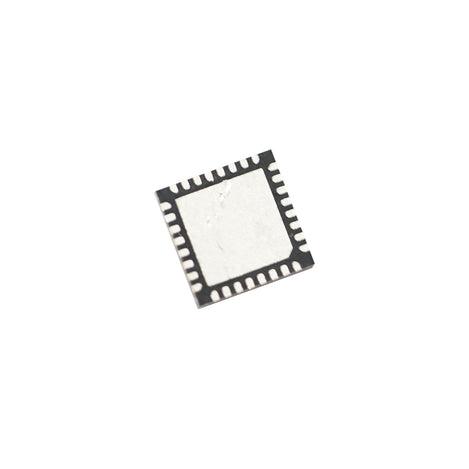

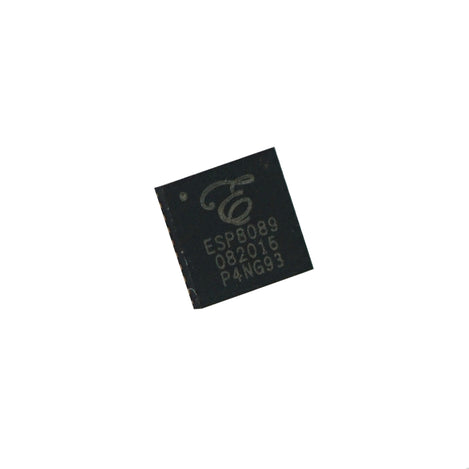

ESP8089 - 2.4G Wi-Fi SoC

$0.72

Leave a review

SKU: GC-ESP8089

MPN: ESP8089

Manufacturer: Espressif Systems

Stock Status: In stock

Delivery: Ships same or next business day
Free shipping to the US on orders over $100
Closeout: Limited quantity available.
NOT recommended for new designs

We Have You Covered

Price Match delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

This product is NOT for new designs.


Order quantity is limited to in-stock amounts.



Minimum Quantity Required: 10 chips.

----------------------------------------------------------

The ESP8089 is a highly integrated 2.4GHz Wi-Fi SoC with a compact 5x5mm footprint, and is great for use in mobile phones, portable MP3/4 players, cameras, camcorders, tablets and more.

The ESP8089 is a 2.4GHz 802.11 b/g/n Wi-Fi networking offload engine for application processors connecting via the high-speed SPI/SDIO interface. With built-in processing and storage, the chip is capable of integrating with the host platform and requiring minimal external circuitry or integrated antenna switches, RF balun, power amplifiers, low noise receiver amplifiers, or filters.

It offers dual low power modes ideal for battery powered devices. Typical current consumption is less than 12uA in sleep mode and less than 1.0mW (when DTIM=3), and as low as 0.5mW (when DTIM=10) when connected to a Wi-Fi network.



The ESP8089 has the following advanced features:

  • Advanced signal processing
  • Adaptive radio biasing for low-power operation
  • Fast sleep/wake context switching for energy-efficient VoIP
  • Spur cancellation and radio co-existence features for cellular/Bluetooth/802.11 interference mitigation

Features

  • Wi-Fi Direct (P2P), Miracast, SoftAP
  • Integrated TR switch, balun, LNA, power amplifier and matching network
  • Integrated PLL, regulators, and power management units
  • +19 dBm output power in 802.11 b mode
  • Power down leakage current of < 10 μA
  • Wake up and transmit packets in < 22 ms
  • Standby power consumption of < 1.0 mW (DTIM3)
  • A-MPDU & A-MSDU aggregation & 0.4 μs guard interval
  • SDIO 2.0, SPI, UART
  • STBC, 1×1 MIMO, 2×1 MIMO

Documents and Drivers

Documentation

ESP8089 Datasheet

Specifications

Adjacent Band Rejection

  • OFDM, 6 Mbps : 37 dB
  • OFDM, 54 Mbps : 21 dB
  • HT20, MCS 0 : 37 dB
  • HT20, MCS 7 : 20 dB

Certifications

FCC

Dimensions

5mm x 5mm

Frequency Band

2412 MHz to 2484 MHz

Interface(s)

SPI/SDIO Interface

MPN

ESP8089

Pins

16 GPIO pins

Power

Tx Power:

  • WiFi 802.11 b: +19 dBm
  • WiFi 802.11 g: +16 dBm
  • WiFi 802.11 n: +16 dBm

Power Consumption

<1.0 mW (DTIM3)

Power Supply

  • Digital/IO: 1.8V - 3.3V
  • Digital NC: 1.1V - 2.5V

Temperature Range

-40°C to +150°C (40°F to +302°F)

Timers

RTC timer

Transmit Power

2.4 GHz transmitter

Voltage

  • Input Low: -0.3V to 0.25×VIO
  • Input High: 0.75×VIO to 3.3V
  • Input Leakage: 50 nA
  • Output Low: 0.1×VIO
  • Output High: 0.8×VIO
