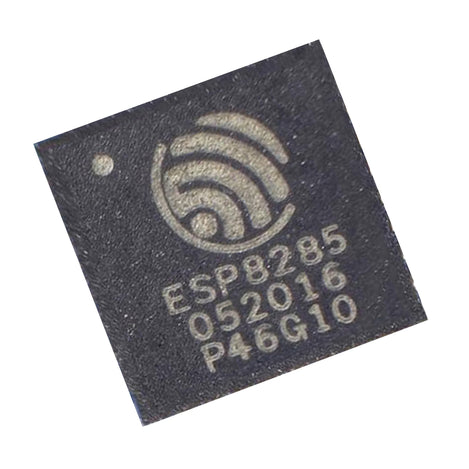

ESP8285 Wireless 802.11 b/g/n/e/i Chip

$1.66

Leave a review

SKU: GC-ESP8285

MPN: ESP8285

Manufacturer: Espressif Systems

Delivery: Ships within 7-14 business days
Shipping is Free on orders over $100

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Minimum Quantity Required: 10 chips.

----------------------------------------------------------

Authorized North America Distributor Stamp

The ESP8285 is a compact, low-power, Wi-Fi SoC solution designed for the Internet of Things (IoT). This wireless chip follows the 802.11 b/g/n/e/I WLAN MAC protocol along with the latest Wi-Fi P2P and TCP/IP. The chip can also be applied to a micro-controller and a Wi-Fi adaptor through SPI/SDIP or I2C/UART interfaces.

With the Tensilica’s L106 Diamond series 32-bit microcontroller (MCU) the chip is often integrated with external sensors and other application-specific devices through the 17 GPIOs. It offers reliable performance as a standalone application or as the slave to a host MCU.

The Espressif Systems’ Connectivity Platform (ESCP) enables the following features:

  • Fast switch between sleep and wake-up mode
  • Adaptive radio biasing
  • Advanced signal processing
  • Spur cancellation
  • Radio co-existence mechanisms for common interference mitigation

Examples of major applications include:

  • Home automation
  • Smart lights and plugs
  • IP cameras
  • Baby monitors
  • Sensor networks
  • Security ID tags
  • Mesh networks
  • Industrial wireless control
  • Wearable electronics
  • WiFi location-aware devices
  • WiFi position system beacons

Features

  • 802.11 b/g/n/e/i support
  • Wi-Fi Direct (P2P) support
  • WPA/WPA2 PSK, and WPS driver
  • WMM power save U-APSD
  • Multiple queue management to fully utilize traffic prioritization
  • UMA compliant and certified
  • 802.1h/RFC1042 frame encapsulation
  • Seamless roaming support

Documents and Drivers

Documentation

ESP8285 Chip Datasheet

Specifications

Antennas

PCB Trace, External, IPEX Connector, Ceramic Chip

Connector(s)

IPEX Connector

CPU

Tensilica L106 32-bit micro controller

Dimensions

5 mm x 5 mm (QFN32-pin)

Firmware

UART Download/OTA (via network)

Frequency Band

2.4G ~ 2.5G (2400M ~ 2483.5M)

Interface(s)

  • UART/SDIO/SPI/I2C/I2S/IR Remote Control
  • GPIO/ADC/PWM

Memory

1 MB

MPN

ESP8285

Networking Standards

FCC / CE / TELEC / SRRC

Pins

17 GPIO pins

Power Consumption

0.5 μA to 170 mA

Product Power Supply

Digital/IO (2.7V ~ 3.6V)

Protocols

  • Wi-Fi: 802.11 b/g/n/e/I
  • Network: IPv4, TCP/UDP/HTTP/FTP

Security/Protection

  • Software Security: WPA / WPA2
  • Software Encryption: WEP/TKIP/AES

Software

  • Development: Supports Cloud Server Development/Firmware and SDK for fast on-chip programming
  • Configuration: AT Instruction Set, Cloud Server, Android/iOS app

Temperature Range

-40ºC to 125ºC (-40ºF to 257ºF)

Timers

RTC timer

Voltage

2.7V ~ 3.6V
