Ethernet TCP / UDP to RS232 / 422 / 485 Industrial Device Server - DR2

Leave a review

SKU: GC-DR2

MPN: XSDRSN-03

Manufacturer: Lantronix

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

Convert your serial (RS232, RS422 or RS485) device(s) to 10/100 Ethernet with the DR2. This adapter does the job with no changes to your software.

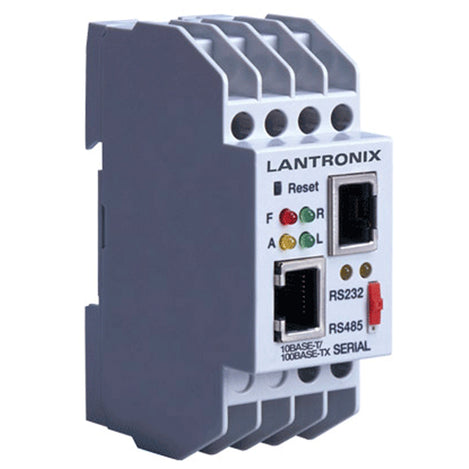

The DR2 is an industrial device server packaged in a DIN-rail mountable plastic housing. The DR2 takes your serial data stream and converts it to Ethernet packets with no changes to your software. A Web Server is also built-in, which allows you to design your own pages and interface with your product from the Internet.

Flexible configuration options allow the DR2 to be set up locally using the serial port, or remotely over Ethernet using Telnet or a common web browser.

SOFTWARE:
The DR2 works out of the box and comes with COM Port Redirector which allows you to redirect a PC serial port to Ethernet.

Features

Features:


  • Configurable serial interface supports RS-232, RS-422, or RS-485
  • Isolated serial and Ethernet (RJ45) ports
  • Fm-approved for use in hazardous locations Class 2, Div. 2
  • Rugged housing

Documents and Drivers

Documents

DR2 Data Sheet (PDF)

DR2 User Guide (PDF)

Java App Note (PDF)



Downloads

Current DeviceInstaller (Link to Lantronix site)

Current Com Port Redirector (Link to Lantronix site)

Specifications

BAUD RATE

Serial Baud rates up to 115Kbps

CERTIFICATIONS

UL, CSA, TUV, FCC, CE, FM Class 1, Div. 2

CHARACTERS T

7 or 8 data bits

CONNECTOR(S)

  • Serial: Screw Terminals or RJ45
  • Network: RJ45
  • Power: Screw Terminals for power and ground

DIMENSIONS

90 x 60 x 36mm (inches: 3.54 H x 2.4 D x 1.4 W)

FLOW CONTROL

XON/XOFF

GTIN

783384236926

INTERFACE(S)

Network: 10BaseT/100BaseTx Ethernet

ISOLATION

  • 2000Vrms serial Isolation
  • 1500Vrms Ethernet Isolation

MPN

XSDRSN-03

SERIAL INTERFACES

375,369

SERIAL TYPES

372,370,371

STOP BITS

1 or 2

TEMPERATURE RANGE

Operating: 0°C to +70°C
