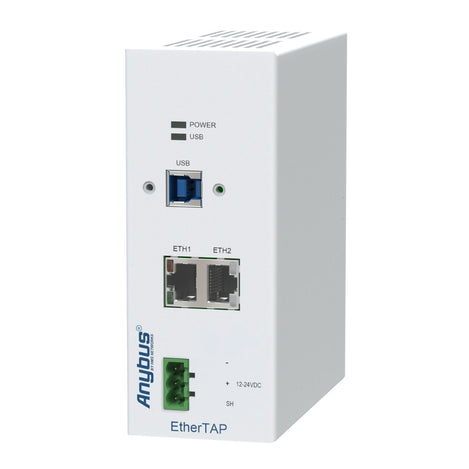

EtherTAP2 Din Rail Mount Ethernet Tap for use with Atlas2: 10/100 Ethernet

$2,795.00

Leave a review

SKU: GC-PN-ETHERTAP2

MPN: 513-20011A

Manufacturer: Anybus Diagnostics

Delivery: Ships within 4-5 weeks
Qualifies for Free shipping to the continental US

Speed

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

EtherTAP2 — Passive Industrial Ethernet Monitoring



The EtherTAP2 is an interface device for passive monitoring of Industrial Ethernet traffic. It is an essential tool for Industrial Ethernet engineering and commissioning activities, especially for verifying connections and performance of RT, IRT, and other real-time applications.

The EtherTAP2 significantly reduces the equipment needed for network analysis — only an Atlas, Mercury, or PC and one EtherTAP2 are required. This decreases both the complexity and the points of failure during analysis

Why EtherTAP2?

The monitor port of managed switches is unreliable for passive monitoring: it can be occupied, it may not forward all traffic, or it may drop messages due to switch overload. Additionally, the Ethernet port of a laptop can be overwhelmed by real-time applications when two channels are merged into one.

The EtherTAP2 solves these issues by providing a dedicated USB link to the monitoring device (such as Atlas2), and streaming captured messages through an accompanying driver that emulates an additional Ethernet port on the monitoring device. Critically, the EtherTAP2 also prevents the Atlas from sending out messages on its own initiative, which could otherwise jeopardize the real-time behavior and security of the monitored network.

Key Capabilities

•       Passive diagnostics — completely invisible to the monitored network

•       Cycle time per device measurement (in milliseconds)

•       Positive and negative message jitter reporting (as % of cycle time)

•       Dropped packet detection and counting

•       PROFINET alarm monitoring and reporting

•       Message recording in .pcapng format, compatible with Wireshark

•       Ethernet traffic statistics for Port A and Port B independently

•       Compatible with PROCENTEC Atlas, Atlas2, Mercury, and any Windows/Mac/Linux PC

•       Galvanically separated network connections

•       DIN-rail mountable



Compatible Platforms

Works with Atlas/Atlas2/Osiris PROFINET Analysis license, as well as with 3rd party solutions Wireshark, ClearSight, OptiView, NetSpector, OmniPeak, NetDecoder, Packetyzer and Ethertest.


Package Contents

  • EtherTAP2 device
  • USB 3.0 Cable
  • DIN Rail mount brackets


Order Options

 SKU Speed Manufacturer Part # (MPN)
GC-PN-ETHERTAP2 10/100 Ethernet 513-20011A
GC-PN-ETHERTAP2-1G 1G Ethernet 513-20021A

Features

  • Passive diagnostics around the clock monitors Industrial Ethernet traffic without any active participation in the network — completely invisible to connected devices
  • Message recording filtered based on your very own triggers
  • Cycle time analysis measures and report cycle time per PROFINET device in milliseconds, verifies periodic data transmission behavior
  • Jitter analysis reports positive/negative message jitter as a percentage of cycle time, detects early/late message with percentage values
  • Dropped packet detection counts PROFINET messages missing from the communication cycle
  • Alarm monitoring detects and counts PROFINET alarms — specific error messages issued by controllers or devices using the PROFINET protocol
  • Ethernet statistics collects and displays per-port (Port A and Port B) Ethernet statistics including network load, communication errors, and timestamp of last change
  • Network load analysis measures and displays the percentage of Ethernet bandwidth in use on the monitored link

Documents and Drivers

Documentation

EtherTAP2 10/100 Datasheet

EtherTAP2 1G Datasheet

EtherTAP2 User Manual

Specifications

Physical

Dimensions (W × D × H)

52 × 130 × 120 mm (2.0 × 5.1 × 4.7 in)

Weight

  • 10/100 Ethernet: 440 g (0.97 lb)
  • 1G Ethernet: 465 g (1.03 lb)

DIN Rail

35 × 7.5 mm 1.38 × 0.30 in — IEC/EN 60715 (DIN-rail clip included)

Environmental

Operating Temperature

-20°C to +60°C (-4°F to +140°F)

Storage / Shipping Temperature

-20°C to +85°C (-4°F to +185°F)

Relative Humidity

Max. 98%, non-condensing

Ingress Protection

IP20 (IEC/EN 60529, DIN 40 050)

Power Supply

Maximum Power Consumption

  • 10/100 Ethernet: Max. 2.6 W
  • 1G Ethernet: Max. 3.0 W

Primary Power Source

USB 3.0 (5 VDC)

USB Current @ 10 Mbit/s

Max. 520 mA

USB Current @ 100 Mbit/s

Max. 450 mA

USB Current @ 1000 Mbit/s

1G Ethernet: Max. 600 mA

Auxiliary Power Input

  • 10/100 Ethernet: 12–24 VDC, single input

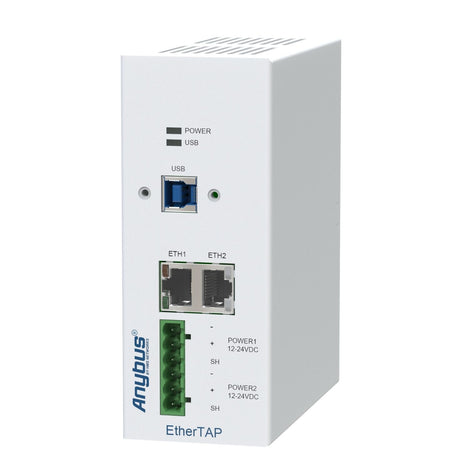

  • 1G Ethernet: 12–24 VDC, dual redundant inputs (POW1 & POW2)

Aux Current @ 10 Mbit/s

Max. 220 mA @ 12 VDC

Aux Current @ 100 Mbit/s

Max. 190 mA @ 12 VDC

Aux Current @ 1000 Mbit/s

1G Ethernet: Max. 250 mA @ 12 VDC

Reverse Polarity Protection

Yes

Aux Connector Pinout

Pin −: 0 V | Pin +: 12–24 VDC | Pin SH: Shield

Max Wire Diameter (Aux)

AWG 14 (2.5 mm²)

Ethernet Continuity on USB Loss

  • 10/100 Ethernet: Maintained — no interruption to Ethernet link
  • 1G Ethernet: Interrupted 1–2 seconds unless externally powered

Ethernet

Ethernet Connectors

2× RJ-45 (ETH1 and ETH2)

Maximum Cable Length

100 m (328 ft)

Link Speed

  • 10/100 Ethernet: 10 / 100 Mbit/s
  • 1G Ethernet: 10 / 100 / 1000 Mbit/s

Recommended Cable Type

Cat 5e FTP or STP (shielded/foiled twisted pair) UTP not recommended in industrial environments

Network Link

Galvanically separated

Network Latency @ 10 Mbit/s

  • 10/100 Ethernet: Max. 6,600 ns,
  • 1G Ethernet: Max. 7,600 ± 25 ns

Network Latency @ 100 Mbit/s

10/100 Ethernet: Max. 660 ns

1G Ethernet: 720 ± 24 ns

Network Latency @ 1000 Mbit/s

1G Ethernet: Max. 380 ± 8 ns

USB

USB Port Type

USB 3.0, Standard-B connector

Max USB Cable Length

5 m (16.4 ft)

10/100 USB Compatibility

  • 10/100 Ethernet: USB 2.0 or USB 3.0
  • 1G Ethernet: USB 3.0 required

System Requirements

Compatible Devices (plug & play)

Atlas, Atlas2 Plus (Linux), Mercury

PC Minimum Requirements

Dual Core CPU, 4 GB RAM, USB 3.0 port

Supported Operating Systems (PC)

Windows 7 / 8 / 10 (32-bit & 64-bit), macOS, Linux

Analysis Software

Osiris (PROFINET / EtherNet/IP diagnostics), Wireshark (.pcapng)

Network Adapter IP (PC setup)

192.168.0.1 | Subnet: 255.0.0.0 (Gateway/DNS: undefined)

Standards & Approvals

CE

EMC Directive 2014/30/EU, Class A

FCC

47 CFR 15 & ICES-003 (Issue 6), Class A

RoHS

Directive 2011/65/EU

EMC Emission

CISPR32

EMC Immunity

CISPR35
