Evaluation Kit for VPC3+S Controller

Leave a review

SKU: GC-DK-VPC3-S

MPN: PA006301

Manufacturer: ProfiChip

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

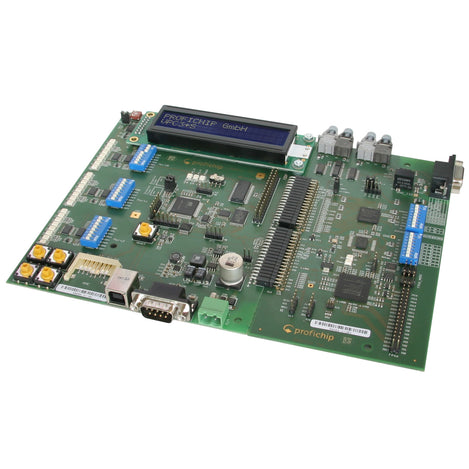

The evaluation kit for the VPC3+S PROFIBUS Slave Controller has all the necessary components to get connected to PROFIBUS-DP. The kit provides a complete PROFIBUS slave application which is easily adapted.

With the integration of the complete Profibus-DP protocol, 4 KByte communication RAM and the flexible processor interface, this kits allows the creation of state-of-the-art Profibus slave applications.

KIT INCLUDES:

  • PROFIBUS base board including RS485 and fiber optic interface
  • Support of parallel, SPI and IC2 interface modules
  • Extension board with Atmel 89C5132 microcontroller (USB C51-based Microcontroller, 64K Bytes Flash, In-System-Programmable via USB)
  • PROFIBUS -DP V1/V2 Firmware (C source code)
  • PROFIBUS -DP V0 demo software (C source code)

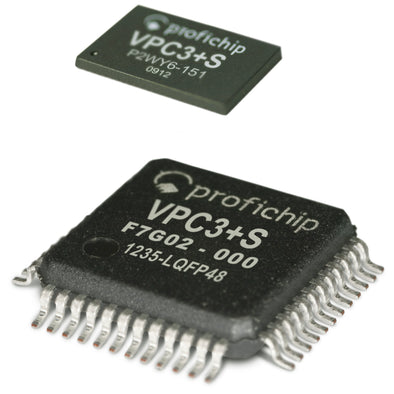

  • Two additional VPC3+S ASICs for test purposes
  • Complete plug´n´play PROFIBUS DP Slave unit based on VPC3+S including appropriate hardware and software (source code): Everything needed for PROFIBUS newcomers to reduce development time and cost

Features

  • Complete PROFIBUS slave application
  • Support of parallel, SPI and IC2 interface modules
  • PROFIBUS base board including RS485 and fiber optic interface
  • Extension board with Atmel 89c5132 Microcontroller (USB C51-based Microcontroller, 64k bytes flash, in-system-programmable via USB)
  • Firmware library and demo software
  • Connect your product right away

Documents and Drivers

Documentation

VPC+S Brochure

VPC+S Software Description

VPC+S User Manual

Specifications

Current

Consumption: max. 700mA

MPN

PA006301
