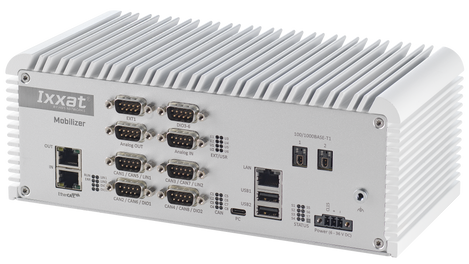

Mobilizer Pro 820 EtherCAT

$8,269.00

Leave a review

SKU: GC-IXT-MBLZ-PRO

MPN: 1.01.0143.08201

Manufacturer: Ixxat

Delivery: Ships within 4-5 weeks
Qualifies for Free shipping to the continental US

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

The Ixxat Mobilizer Pro 820/EtherCAT is a powerful, standalone automotive gateway that integrates Automotive Ethernet, LIN, SENT, K‑Line, EtherCAT, and eight CAN/CAN FD interfaces in a single compact device. Built around an i.MX 8M Plus quad‑core Cortex‑A53 processor running Linux, all application logic runs directly on the device; a PC is only needed for configuration, simulation, or data visualization.

This Mobilizer Pro 820 is ideal for data logging, protocol gateway tasks, and residual bus simulation in demanding automotive test environments, including end‑of‑line testing and test bench applications.

Configuration is handled through the Ixxat Advanced Configuration Tool (ACT). This tool is an intuitive drag‑and‑drop software package that requires no programming knowledge to adapt the gateway for different DUTs (devices under test).










Features








  • Multi‑protocol connectivity — combines Automotive Ethernet (100/1000 Base‑T1), EtherCAT, LIN, SENT, K‑Line, and 8x CAN/CAN FD in one device
  • Standalone operation — all application intelligence runs on the embedded platform itself; a PC is only required for configuration or visualization
  • Powerful embedded processing — i.MX 8M Plus, 1.8 GHz quad‑core Cortex‑A53 processor running Linux for high-performance, real-time handling
  • EtherCAT to CAN FD gateway — bridges in-vehicle networks to the automation layer for synchronized control and monitoring
  • DoIP support — Diagnostics over IP enables efficient transfer of larger data packets, improving on traditional DPDU-based flashing workflows
  • Residual bus simulation with security — supports alive counter and CRC functionality, with ACT plug-ins implementing OEM-specific SecOC security standards
  • Easy configuration — Ixxat Advanced Configuration Tool (ACT) offers drag-and-drop setup with no programming required
  • Flexible I/O — 6x digital in/out, 4x analog in, 2x analog out for integrating sensors and actuators alongside bus data
  • Galvanic isolation — protects the device and connected systems from overvoltage and electrical damage
  • Removable storage — SDXC slot for onboard data logging
  • Multi-configuration support — multiple test configurations can be stored and switched externally via the automation level, supporting batch-size-of-one production












          Documents and Drivers
















Documentation



Mobilizer Pro 820 EtherCAT Datasheet













Automotive Gateways, Mobilier, FRC-EP and CANnector Brochure




















Specifications











Parameter


Specification






Processor


i.MX 8M Plus, 1.8 GHz quad-core Cortex-A53






Operating system


Linux (embedded)






CAN / CAN FD


8x CAN/CAN FD






Automotive Ethernet


2x 100/1000 Base-T1






EtherCAT


1x EtherCAT interface






Ethernet


1x 10/100/1000 Base-TX






LIN


2x LIN






SENT


2x SENT






K-Line


Supported






Digital I/O


6x digital in/out (A/E)






Analog inputs


4x analog in






Analog outputs


2x analog out






USB


1x USB 3.0 (device), 1x USB 2.0 (host)






Storage


SDXC card slot






D-Sub connectors


8x D-Sub 9






USB connectors


2x USB Type A, 1x USB Type C






Ethernet connectors


3x RJ45






Automotive Ethernet connectors


2x IEC 63171-2






Power connector


1x Phoenix MC 1.5/3-STF-3.81 BK






Isolation – D-Sub connectors


1 kV DC (1 s), 500 V AC/60 Hz (1 min)






Isolation – LAN connection


1.5 kVrms/60 Hz, 2.25 kV DC (1 min)






Isolation – EtherCAT connection


1 kVrms (1 min)






Configuration software


Ixxat Advanced Configuration Tool (ACT), Windows 10/11






Diagnostics


DoIP (Diagnostics over IP) support






Security


Alive counter, CRC, SecOC-compliant ACT security plug-ins






Typical applications


Data logging, gateway, residual bus simulation, ECU firmware flashing, end-of-line testing
