Humidity Data Logger - Temperature & Humidity Sensor for AKCP Controllers: 1 ft cable

$80.00

5.0 stars 5.0 (1) See customer reviews

SKU: GC-AK-THS-01

MPN: THS01

Manufacturer: AKCP

Stock Status: In stock

Delivery: Ships same or next business day
Qualifies for Free shipping

Choose Type

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

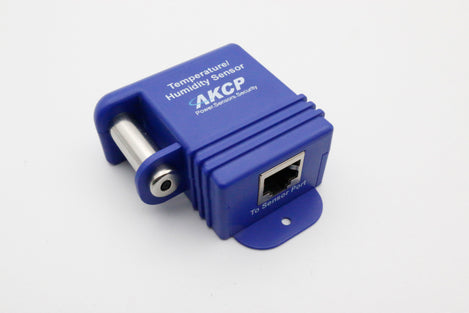

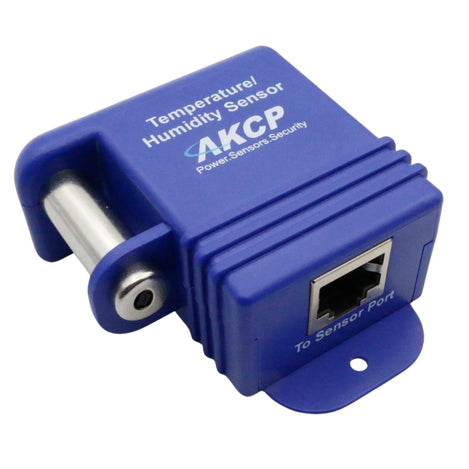

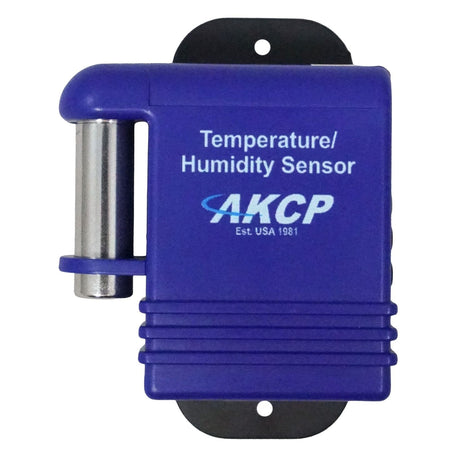

The Humidity Data Logger has both temperature and humidity measuring capabilities in a single sensor. This extends the capability of any sensorProbe or securityProbe by measuring temperature and humidity using only 1 RJ-45 jack.

When the sensor is plugged into the RJ-45 port, the sensorProbe will auto detect the sensor and will display temperature & humidity  for each port that contains a Humidity Data Logger.  A built in graph option is included on all sensorProbes for graphing temperature and humidity variations over a period of time.

Each sensor has its own SNMP OID so that data can be collected over the network and graphed using an external application like MRTG.

The temperature sensor can be read using included SNMP utilities to allow graphing and datalogging at 0.2°C resolution.

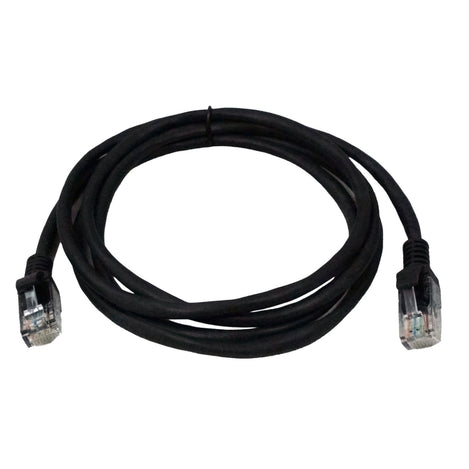

The CAT5 Enabled version allows you to place the sensor up to 1000 feet from the SensorProbe using standard CAT5 cable (5 ft cable included). There is also a waterproof version of the sensor available if there is a chance that the sensor end could be submersed in water.



Order Summary



Product Image

SKU

Product Options

Package Contents
CAT5 Enabled Image
GC-AK-THS-00
CAT5 Enabled

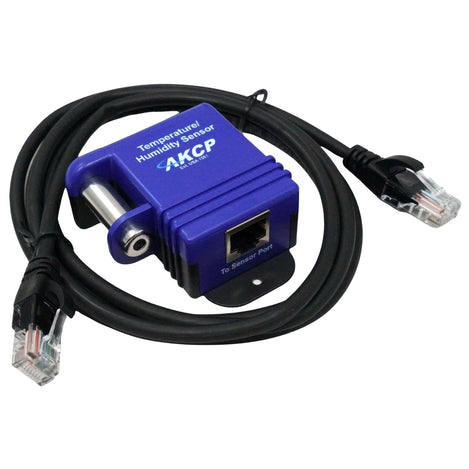

Temperature Data Sensor and 5 Ft cable with RJ-45 connectors
1 Ft Cable Image
GC-AK-THS-01
1 Ft Cable
1 Ft cable with sensor and RJ-45 connector
15 Ft Cable Image
GC-AK-THS-15
15 Ft Cable
15 Ft cable with sensor and RJ-45 connector
Water Resistant Pipe 15 Ft Image
GC-AK-THS-W15
Water Resistant 15 Ft Cable
15 Ft water resistant cable with sensor and RJ-45 connector

Features

  • sensorProbe and securityProbe controllers autodetect the presence of the dual sensor
  • Dual sensor only requires 1 port on controllers
  • Sensor element wettable without damage
  • CAT5 Enabled version allows you to add up to 1000' of CAT5 cable to the sensor
  • Own SNMP OID for data collection via network

Documents and Drivers

Documentation

Temperature & Humidity Sensor Datasheet
1 Ft. Cable 		View (PDF)
Temperature & Humidity Sensor Datasheet
CAT5 Enabled 		View (PDF)
Temperature & Humidity Sensor Datasheet
Waterproof 15 Ft. Cable		 View (PDF)
AKCP Sensor Selection Summary View (PDF)

Specifications

CAT5 ENABLED

Version allows you to add up to 1000' of CAT5 cable to the sensor.

COMMUNICATIONS CABLE

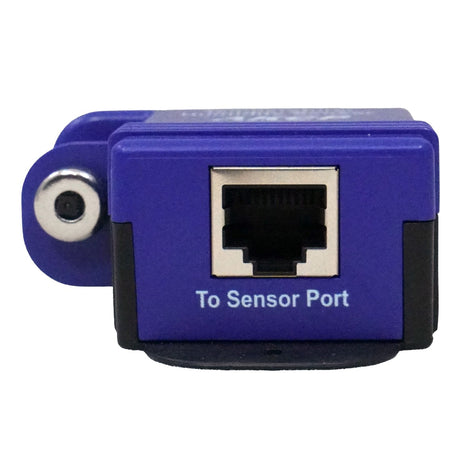

RJ-45 jack to dual sensor using UTP CAT5 wire.

MANAGEMENT

Sensor element wettable without damage

MEASUREMENT ACCURACY

    Temperature:
  • Maximum: ±2.3 at -40°C (±4.1 at -40°F)
  • Minimum: ±0.4 at +25°C and ±1.7 at +75°C (±0.9 at +25°F and ±4 at +167°F)
    Humidity
  • 25°C (77°F) ±3%

MEASUREMENT RANGE

  • Temperature: -40°C (-40°F) to +75°C (+167°F)
  • Humidity: 0 to 100% Relative Humidity

MEASUREMENT RATE

One reading per second

MEASUREMENT RESOLUTION

  • Temperature: 1°C (1°F)
  • Humidity: 1%

MPN

THS00

POWER CONSUMPTION

  • Temperature: Typical 10.70 mWatt, 2.14 mA sensorProbe autodetects the presence of the temperature sensor
  • Humidity: Typical 7.25 mWatt, 1.45 mA

PRODUCT POWER SUPPLY

Powered by the sensorProbe. No additional power needed.
