ZAC-1023-2 - Industrial Wireless Access Point Bridge 802.11 b/g/n: External Antenna

$195.00

5.0 stars 5.0 (1) See customer reviews

SKU: GC-IND-WIFI-AP-EXT

MPN: ZN-7200-2EI-O

Manufacturer: Discontinued

Stock Status: Out of Stock

Delivery: Not available
Qualifies for Free shipping

Antenna Type

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

ZAC-1023-2 is a feature rich industrial wireless access point which provides reliable connectivity in harsh industrial environments. Support for WMM, STP, and IGMP Snooping Protocols improves the reliability of this access point and makes it the perfect choice for industrial applications.

With the addition of 802.11n support, this industrial wireless access point provides 3 times the data rate of legacy 802.11g devices. It also encrypts data through 64/128/152-bit WEP encryption and also provides support for WPA, WPA2, and legacy 802.1x.

This access point device also acts as a wireless bridge, allowing you to connect wired devices over 802.11b/g/n wireless networks.

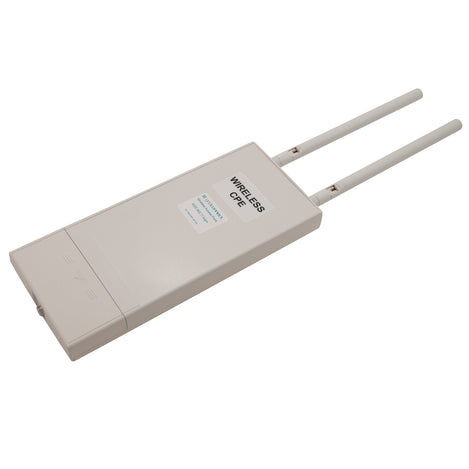

Two antenna options are available, internal and external. The external antenna option has 2 SMA-RP antenna connectors and includes 2 5 dBi Omni antenna. The internal option has an internal 9 dBi directional antenna.



Order Summary

SKU

Antenna

Manufacturer Part # (MPN)
GC-IND-WIFI-AP-INT Internal Antenna ZN-7200-2EI
GC-IND-WIFI-AP-EXT External Antenna ZN-7200-2EI-O

Features

  • IEEE802.11b/g/n Compliant
  • WEP/WPA/WPA2 / IEEE 802.1x Authentication Support
  • IGMP Snooping and Spanning Tree Protocol Support
  • IP55 Waterproof Certified
  • Internal 9 dBi Directional Antenna (Internal Option)
  • 2 External 5 dBi Omni antenna (External Option)
  • Supports Distances Up To 2 Km
  • Passive 24V PoE Power

Documents and Drivers

Internal Antenna Option


ZAC-1023-2-9 Quick Installation Guide (PDF)
ZAC-1023-2-9 Data Sheet(PDF)

External Antenna Option


ZAC-1023-2 Quick Installation Guide(PDF)
ZAC-1023-2 Data Sheet(PDF)


Specifications

ANTENNAS

  • Embedded 9dBi directional antenna (Vertical, Horizontal) (Internal Option)
  • Equipped SMA-RP antenna connectors and 5dBi Omni antenna (External Option)

CERTIFICATIONS

  • US FCC Part 15 sub B & C
  • EN 60950, EN300328 V1.8.1, EN301489 -1/-17, EN55022/24 compliant and CE Mark

COMMUNICATION

Data Rates:

  • 802.11b – 11 Mbps, 5.5 Mbps, 2, 1 Mbps
  • 802.11g – 54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12, 9, 6 Mbps
  • 802.11n – HT20 MCS0~15, HT40 MCS0~15

DIMENSIONS

  • Internal option: 205mm x 64mm x 61mm
  • External option: 110.98mm x 255.6mm x 47.65mm

INCLUDED IN BOX

  • Access Point / Bridge Unit
  • 2 External Antenna (External Option)

INTERFACES

  • Wireless – IEEE 802.11 b/g/n
  • Ethernet – IEEE802.3u MDI / MDIX 10/100 Fast Ethernet

MANAGEMENT

  • Telnet, SNMP, FTP
  • Password Changes
  • Firmware Updates
  • Configuration Files
  • Radio on/off
  • WMM/Regatta Mode
  • Output Power Control
  • Fragmentation Length
  • Beacon Interval
  • RTS/CTS threshold
  • DTIM Interval

MATERIAL

Case: IP55 waterproof certification

MODULATION TECHNIQUES

  • DSSS / BPSK / QPSK / CCK / DQPSK / DBPSK
  • 802.11b/g/n: OFDM
  • 802.11n: OFDM

MPN

ZN-7200-2EI, ZN-7200-2EI-O

OPERATION MODES

Access Point, Wireless Client Mode, Bridge Mode, Access Point Repeater

POWER

Transmitted Power:

  • 802.11b – 27 dBm
  • 802.11g – 25 dBm
  • 802.11gn HT20 – 30 dBm
  • 802.11gn HT40 – 29 dBm
Device Power:
  • DC 24Volt / 1.0A

    • Passive 24V PoE

POWER CONSUMPTION

<12W

PRODUCT WEIGHT

500g

PROTOCOLS

Spanning Tree and IGMP snooping protocol support

RECEIVER SENSITIVITY

  • 802.11b Sensitivity – 96dBm @ 1Mbps; -90dBm @ 11Mbps
  • 802.11g Sensitivity– 94dBm @ 6Mbps; -75dBm @ 54Mbps
  • 802.11n HT20 – 94dBm @ MCS0; -74dBm @ MCS7
  • 802.11n HT40 – 91dBm @ MCS8; -71dBm @ MCS15

SECURITYPROTECTION

  • WPA/WPA2-Enterprise encryption for a highly secure wireless network
  • WEP/WPA/WPA2/ IEEE 802.1x authentication support

STORAGE SPECIFICATIONS

  • Temperature: -40°C to +70°C (-40°F to +158°F)
  • Humidity (non-condensing): 10 ~ 95% RH

TEMPERATURE RANGE

  • Temperature: -20°C to +70°C (-4°F to +158°F)
  • Humidity (non-condensing): 10 ~ 95% RH
