IO-Link Diagnostic Tool
IO-Link Diagnostic Tool
Product Images
We've Got You Covered
1 year comprehensive warranty support for all products
30 day money back guarantee
*some exceptions apply
Product Information
Product Description
The IO-Link Diagnostic tool is used for troubleshooting and maintaining IO-Link Networks. It analyzes both the physical layer electrical signals, and the protocol layer data messages. The data can be viewed on the byte level, the M-Sequence level, and even on an application level.

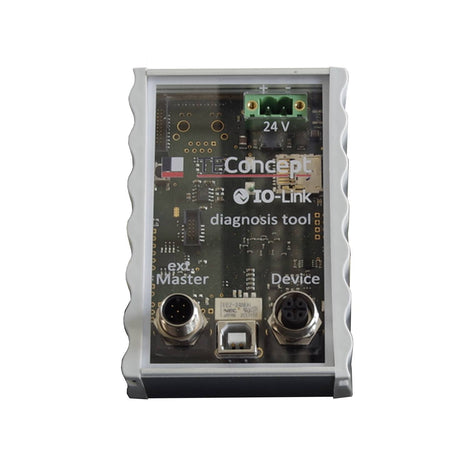

The product consists of an IO-Link Interface module that connects to the IO-Link network on one side, and connects to a Windows PC via USB on the other side. Windows PC software provides the analysis based on the information from the Interface Module.
Features
- Logical and electrical issue detection
- High speed, IO-Link synchronized ADC
- Timing precise software UART decoding
- Sophisticated filtering and search features
- Recording to hard disk / SD-card
- Serial decoding in analogue waveform view
- Analog time signal view for UL+, IL+, UCQ, ICQ
- Timing accurate IO-Link signal analysis
- Byte-, frame-, protocol- or IODD-based decoding
- Device image collection of all data sent
- Eye diagram view separated for Device/Master
- Data storage image collection
- Interactive rulers for analogue measurements
Documents and Drivers
Documentation
IO-Link Diagnostic Tool Product Information
Specifications
MPN
IGS-CDE-DIAG
