IO-LINK Physical Layer Tester
IO-LINK Physical Layer Tester

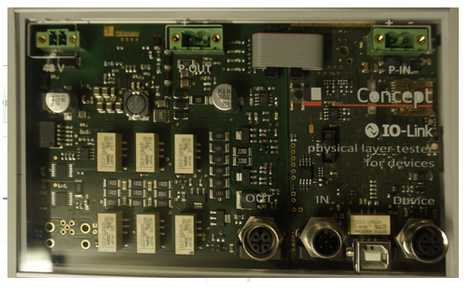

Product Images
IO-LINK Physical Layer Tester
$22,000.00
SKU: GC-TEC-IOL-PLT
MPN: ITO-CTE-PLTDML
Manufacturer: TEConcept GmbH
We've Got You Covered
1 year comprehensive warranty support for all products
30 day money back guarantee
*some exceptions apply
Product Information
Product Description
The PLT is based on a high-speed multi-channel A/D converter that measures voltages and currents on both the C/Q and the L+ line. For every test case, specific snapshot of signals are taken and stored. In order to generate these signals, the PLT includes all necessary elements, such as an IO-Link Master, adjustable voltage and current sources, and line simulations.
These snapshots are visualized in an oscilloscope-like view. They are mostly analyzed in a semiautomatic way where measurements are taken by moving graphical cursors that are linked with voltage and current values. The evaluated values are entered / copied into predefined fields and used for a automatically generated test reports.
Features
- Compliant to IO-Link Test Specification V1.1.2
- User calibration support
- IODD support
- Integrated IO-Link Master
- Integrated Line Simulation
- Semiautomatic measurement procedure based on recorded waveforms
- SIO – Mode tests supported
- BIT – and UART Eye-Diagrams
- Test Report Generation (PDF)
- All test results are stored in a reloadable test data file
Advantages
- All components to run physical Layer Tests are included
- Substantial reduction of test effort and test duration
- Automatic test report generation
Documents and Drivers
Documentation
Physical Layer Tester Datasheet
Specifications
Interface(s)
Windows-based graphical user interface
MPN
ITO-CTE-PLTDML
Power Supply
48V power supply, USB cable
Standards
Compliant to IO-Link Test Specification V1.1.2
