This product is discontinued and no longer available.

Suggested replacement: IP7-FX IP Intercom and Paging Module

IP Ethernet Intercom IP7 STx OEM Modules

Leave a review

SKU: GC-IPIC-IP7-ST-BRD

MPN: IP7-ST-BRD

Manufacturer: Digital Acoustics

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Digital Acoustics IP7 OEM module provides integrators and OEM's a complete solution to facilitate two-way audio communications and paging in embedded systems. IP7 board level products and our ICC Core modules offer full range of features found in the IP7 series of products.

Using Digital Acoustics’ patent-pending technology, OEM intercom modules offer audio/digital connectivity and OEM options through application specific "Personality Modules".

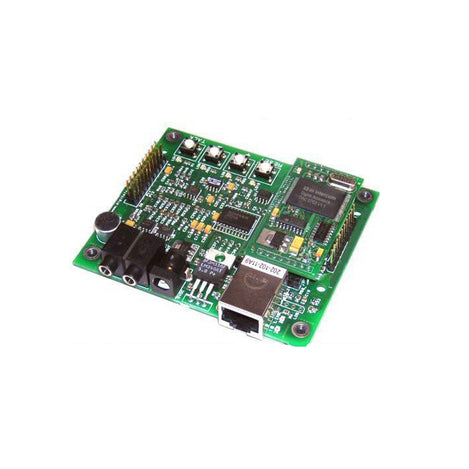

Presently, only the IP7-STx OEM module is being offered. It is essentially the IP7-STx without the metal case (board only) and is intended for OEMs or integrators that want to embed the IP7-STx into their own design.

Features

  • Self contained Ethernet Intercom board
  • Programmable interfaces for Push to Talk
  • User defined indicators and signals
  • Integrated RJ45 10/100 BaseT
  • Integrated Microphone with advanced AGC
  • Static IP assignment or automatic via DHCP
  • 3.5mm jacks for Mic In and Speaker Out
  • 2x 10 .1" Pin header array for additional connections
  • Integrated diagnostics and network optimization
  • Requires 5-9VDC Power
  • Includes TalkMaster(TM) LE PC Software

Documents and Drivers

Documentation

IP7-STx Board Datasheet

Specifications

Dimensions

98 mm x 91mm x 35mm (3.85. x 3.59 x 1.37 in)

MPN

IP7-ST-BRD

Power

  • Auto Sensing External Power 9VDC - 32VDC DC @ 5 watts
  • PoE (802.3af) Requires 7 watts from PSE
