$1,083.00
IP Intercom Bundle – Call Station to Gate/Truck-Scale
IP Intercom Bundle – Call Station to Gate/Truck-Scale
Product Images
IP Intercom Bundle – Call Station to Gate/Truck-Scale
$578.00
SKU: GC-IPIC-GTP
MPN: GC-IPIC-GTP
Manufacturer: Digital Acoustics LLC
We Have You Covered
Product Information
Product Description
The IP Intercom Bundle for Call Station to Gate or Truck-Scale is an all-in-one bundle for an intercom connection between a PC based console and an intercom/call station. The PC serves as the master console station and the exterior door station completes the 2-way communication between locations.

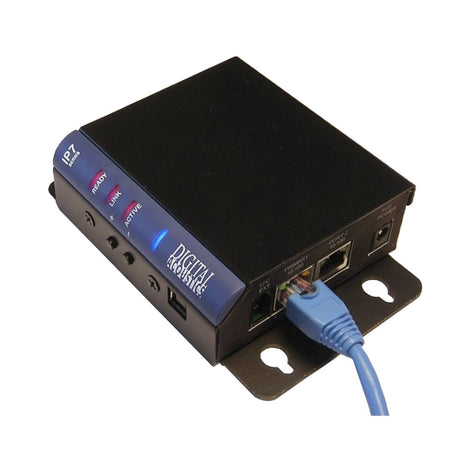

The included IP7-FX Intercom Module is a multipurpose system that offers an on-board relay and sensor for door/gate access controls, allowing for remote monitoring and control over secure entrances.

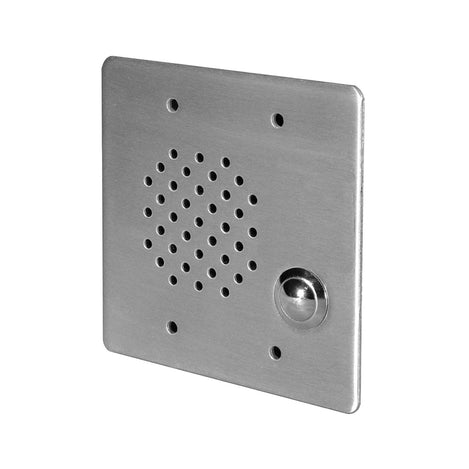

The exterior door station station is a tamper resistant, 2.5-inch square frame speaker, with push-to-talk button for outdoor use.
Kit Includes:
Product Image |
Part |
SKU |
Manufacturer Part # (MPN) |
---|---|---|---|
1 - IP7-FX Intercom and Paging Module | GC-IPIC-IP7-FX | IP7-FX | |
1 - External Door Station | GC-IPIC-DOOR-QM4 | PNL-CIS-4/8 |
This bundle is ideal for truck scales, for communicating with the driver and the scale office. Set up is easy with the provided Windows PC Software.
Features
- Local or Worldwide Ethernet or Internet Connection
- External Door Station for Push-to-Talk and Speaker
- On-Board Relay for Door/Gate Access control
- Simple configuration using PC software
- Simple installation using 10/100M Ethernet
- High Quality Voice/Audio with Push-to-Talk button and speaker interface
- Desk unit features Volume Up, Volume Down, and Monitor/Open buttons
- Desk unit status LEDs (Active, Link, Monitor and Talk)
Documents and Drivers
Documentation
IP7-FX Intercom Module Datasheet
CIS4/8 External Intercom Door Station Datasheet
Specifications
Audio Connection
- Line In: Nominal 1V p/p
- Line Out: Pro Audio (2 Volts Peak to Peak)
Audio Latency
<200ms Auto-Adaptive
Connection Modes
- TalkMaster™ Focus Endpoint
- SIP 2.0 Endpoint
- Hybrid TalkMaster™ Focus/SIP 2.0 Endpoint
- Direct Mode
- Singlewire Informacast
Connector(s)
Network: 2x RJ-45
Connector IO
3.81mm DIN Pluggable, RJ45, USB-B, RJ10
Core
ICC-512 50 MIPS System on a Chip
Fault Management
Advanced Fail-ForwardTM fault detection
Microphone
Balanced, Pseudo-differential / AGC > 40dB
MPN
GC-IPIC-GTP
Network Interface
10/100 Base-T Ethernet, Auto-MDIX
POE Standard
802.3af (15.4W)
Programmable IO
Flash programmable via USB, Ethernet
Protocols
TCP, UDP, RTP, SIP, ICMP, IGMP Multicast
Serial Interfaces
373,369
Speaker Out
8 Watts (PoE or 12VDC) 25 Watts (24VDC)
