IT Rack Temperature/Humidity Thermal Map Sensor String

$90.00

Leave a review

SKU: GC-AK-THMS-V2

MPN: THMS-V2

Manufacturer: AKCP Co Ltd.

Delivery: Ships within 7-14 business days
Shipping is Free on orders over $100

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

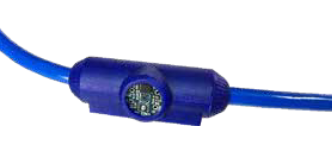

Authorized North America Distributor StampThis temperature/humidity sensor string is pre-wired for easy installation on your rack. It has a string of 4 sensors (3 temperature and 1 humidity) for easy placement on the top, middle and bottom - front and rear of a rack. This configuration gives monitoring of the air intake and exhaust temperatures, and the temperature differential from the front to the rear.

An interface box allows you to plugin a single string. When a single string is used only the front or rear, top middle and bottom temperature values are monitored.

Thermal Map sensors are compatible with all sensorProbe+ (SP+) base units. Sensors are provided with double sided VHB tape for mounting.

Extendable up to a maximum of 18 meters cable length, you can monitor multiple racks from a single IP address. The maximum number of thermal maps on a single SPX+ is 16.

Features

  • String of 3x Temperature and 1x Humidity sensor
  • Pre-wired for easy installation
  • Compatible with sensorProbe+ series only

Documents and Drivers

Documentation

IT Rack Temperature/Humidity Map Sensor String Datasheet

Specifications

Cable Length

Sensor can be extended from the RJ-45 Intelligent Sensor ports on the Base units up to 60 feet, or 18 meters using standard CAT5-6 LAN cable

Communications Cable

RJ45 jack to sensor using UTP CAT5e/6

Dimensions

75mm x 55mm x 27mm (2.95in x 2.16in x 1.06in)

Humidity

Min.20% – Max. 80% (Non-Condensing)

Measurement Accuracy

  • Maximum ±0.3 at -40ºC, minimum ±0.3 at +25ºC to +75ºC
  • Maximum ±0.6 at -40ºF, minimum ±0.6 at +77ºF and to +167ºF

Measurement Range

-40°C to +75°C (-40°F to +167°F)

Measurement Resolution

  • 0.1°C increments
  • 0.2°F increments

Mounting

VHB Tape

Power Source

Powered by the sensorProbe+ family units. No additional power needed.

Power Consumption

Typical 75 mWatt, 15 mA

Sensors

4

Temperature Range

-35°C to +80°C (-31°F to +176°F)
