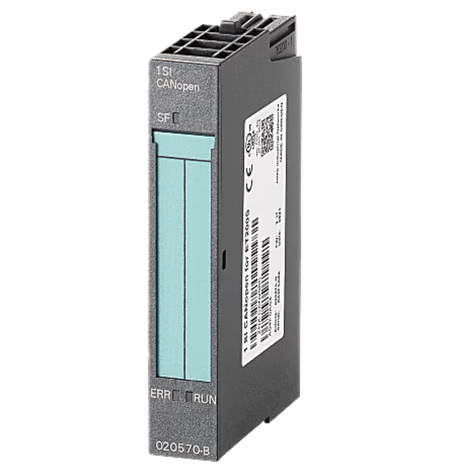

IXXAT 1 SI CANopen module for Siemens ET200S systems
1 SI CANopen is a compact module for SIMATIC ET200S modular I/O systems, offering an easy and cost-effective way to connect CANopen devices.
IXXAT 1 SI CANopen module for Siemens ET200S systems
Product Images
IXXAT 1 SI CANopen module for Siemens ET200S systems
$672.00
SKU: GC-IXT-020570-B
MPN: 020570-B
Manufacturer: Ixxat
We Have You Covered
Product Information
Product Description
The Ixxat 1 SI CANopen is a plug-in compact module for SIMATIC ET200S modular I/O systems that offers an easy and cost-effective way to connect CANopen devices. It enables seamless integration and control of CAN/CANopen networks via PROFIBUS or PROFINET, without extra gateways. Add in the possibility to connect up to 126 CANopen responder nodes in commander mode, and these capabilities will facilitate the expansion of automation systems , increase those systems efficiency, and offer scalable system expansion without significant cost increases.
The isochronous operation mode supports efficient real-time communication, which is essential for time-sensitive applications. This module can be smoothly replaced during operation without system shutdown, which minimizes downtime.
The 1 SI CANopen module supports transparent CAN 2.0A for custom protocol implementation and enhancing PLC programming efficiency with ready-made function blocks available in the SIMATIC STEP 7 portal.
Thanks to integration into the hardware catalog of the SIMATIC STEP 7 or TIA Portal configuration environment, this module has uncomplicated configuration.
Features
- CANopen connectivity for the SIMATIC ET200S system
- Cost-effective system expansion
- Real-time communication
- Hot-swapping capability
- Simplified configuration
- Support for transparent CAN 2.0A protocols
- Wide-ranging module support
Documents and Drivers
Documentation
1 SI CANopen for SIMATIC ET200S Datasheet
1 SI CANopen Module for ET200S User Manual
1 SI CANopen for SIMATIC ET200S Dimensions
CANopen Schematic with 1 SI CANopen Module
Application Note 1 SI Transparent CAN Function Blocks
Application Note 1 SI CANopen Function Blocks
Certificates
1 SI CANopen Conformance Certificate
Declaration of Conformity
Downloads
Application Note Function Blocks Transparent CAN Sample Program
1 SI CANopen Application Note Function Blocks
Specifications
Content of Delivery
- 1 SI CANopen module
- User manual
Available as download:
- Anybus Configuration Manager - CANopen, function blocks, configuration files
Dimension (W x H x D)
15 x 81 x 52 mm (0.6 x 3.2 x 2.1 in)
Weight
33 g (0.07 lbs)
Mounting
DIN rail mount (bracket included)
Current Consumption Type Value at Vcc Nom (mA)
33 mA (24 V DC)
Input Voltage (V)
24 V DC +20/-15%
Isolation
Galvanic isolation on sub-network interface
Temperature
- Operation: 0 °C ~ 60°C (32°F ~ 140°F)
- Storage: -40°C ~ 75°C (-13°F ~ 158°F)
- Relative Humidity: 5 to 95 %, non-condensing
Enclosure
IP20, Plastic
Configuration
The Ixxat 1 SI CANopen module is integrated into the SIMATIC STEP 7 or TIA Portal and offers easy network configuration thorugh the Anybus Configuration Manager - CANopen tool. The configuration can be uploaded and stored in the PROFIBUS or PROFINET PLC or the ET200S I/O system CPU, with the option to hot-swap 1 SI CANopen modules while the ET200S is powered.
Certifications & Standards
- CE
- UL
- WEEE Category: IT and telecommunications equipment
- ETIM Classification: EC001604
- Protection Class IP: IP20
Connectors / Input / Output
plug-in module
CAN Features
CAN Mode: Transparent CAN 2.0A mode
CAN Baud Rate: 20 kBit/s to 1 Mbit/s
CANopen Supported Functionality
Connects max. 126 CANopen responder nodes per module in commander mode
