This product is discontinued and no longer available.
LoRa Wireless Temperature and Humidity Sensor
LoRa Wireless Temperature and Humidity Sensor
Product Images

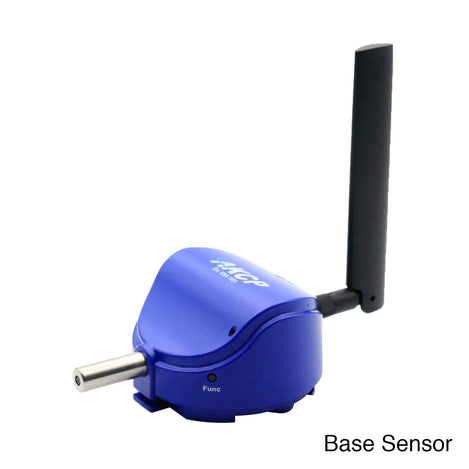

LoRa Wireless Temperature and Humidity Sensor: Base Sensor
SKU: GC-AK-LBTH
MPN: LBTH
Manufacturer: AKCP Co Ltd.
Sensor Version
-
$240.00
-
$255.00
-
$268.00
-
$280.00
We Have You Covered
Product Information
Product Description
The LoRa™ Temperature and Humidity Sensor is a wireless, weatherproof sensor with an external LoRa antenna for maximized broadcasting strength. Easily pair the sensors with the L-DCIM gateway to monitor and track data over time as well as receive real-time alerts on status changes.

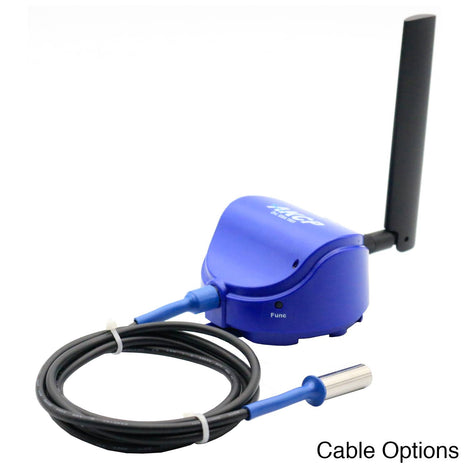

With an IP54 rated enclosure the sensor is able to withstand harsh environments and is capable of broadcasting in low-signal areas with the advanced LoRa technology (up to 10 km in open space and 250 meters in buildings). For optimal placement of the sensors, they are available with multiple cable lengths of 5 Ft., 10 Ft., and 15 Ft.
The sensor can be powered by four (4) internal batteries or by an external micro-USB power source, leaving the batteries for back-up support. The batteries are guaranteed a 10-year life-span when broadcasting every 15 minutes.
Common Applications Include:
- Data Centers
- Pharmaceuticals
- Hospitals
- Warehousing
- Cold Storage
- Distribution Centers
Order Summary
Product Image |
SKU |
Sensor Version |
Manufacturer Part # (MPN) |
---|---|---|---|
GC-AK-LBTH DISCONTINUED |
Base Sensor | LBTH | |
GC-AK-LBTH-5 DISCONTINUED |
5 Ft. Cable | LBTH-5 | |
GC-AK-LBTH-10 DISCONTINUED |
10 Ft. Cable | LBTH-10 | |
GC-AK-LBTH-15 DISCONTINUED |
15 Ft. Cable | LBTH-15 |
Features
LoRa™ radio technology
- Increased signal penetration
- Maximixed signal distance
- "Listen before talk" to minimize packet collisions
- Frequent broadcasting
- Battery or USB Powered
- 10 year guaranteed battery life
- Multiple cable lengths for optimal sensor placement
- IP54 rated casing for all environments
- DIN rail, magnets, or wall mounting options
Documents and Drivers
Documentation
LoRa Temp. & Humidity Sensor Product Information
Specifications
Antennas
Di-Pole LoRa
Certifications
FCC Part15C, CE EN300220-2
Connector(s)
Micro-USB power supply
Dimensions
- LBTH Unit: 76.8 x 76.8 x 46.92 mm
- With Sensor: 76.8 x 105.87 x 46.92 mm
- Di-Pole Antenna: 9.56 x 38.63 x 115 mm
Humidity
20% to 80% (non-condensing)
Indicators LED
Sensor Mode
Measurement Accuracy
Temperature:
- Maximum: ±0.3 at -40ºC (±0.6 at -40ºF)
- Minimum: ±0.3 at +25ºC and ±0.3 at +75ºC (±0.6 at +25ºC and ±0.6 at +167ºF)
Humidity:
- 25°C ±2%RH
Measurement Range
- Temperature: -40ºC to 75ºC (-40ºF to 167ºF)
- Humidity: 0% to 100% relative humidity
Mounting
DIN Rail, Wall Mount, Magnetic
MPN
LBTH
Power Consumption
12 mWatt
Power Supply
Internal batteries or micro-USB port
Radio
LoRa™ Radio 902-915 MHz Max TX Power +20dBm
Temperature Range
-35ºC to 80ºC (-31ºF to 176ºF)
