Home / LoRa Wireless Temperature & Humidity Sensor with Contact Sensor

This product is discontinued and no longer available.

LoRa Wireless Temperature & Humidity Sensor with Contact Sensor: Base Sensor

Leave a review

SKU: GC-AK-LBTHD

MPN: LBTHD

Manufacturer: DISCONTINUED

Sensor Version

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

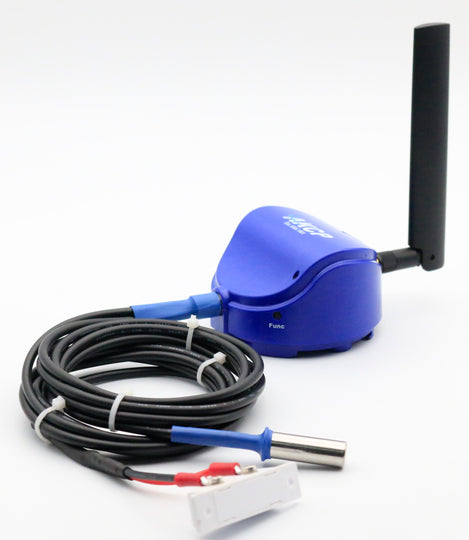

The LoRa™ Temperature and Humidity Sensor with Door Contact is a wireless sensor with an external LoRa antenna to increase broadcasting strength through walls and buildings (up to 250 meters indoors). The dual temperature and humidity sensor is designed for use within IT cabinets, secured storage, and closed spaces. The connected door contact provides a security check and can be matched with the data captured from the temperature and humidity sensor for additional environment monitoring. For example, ignore temperature changes when a door remains open for an extended time.





The sensor connects to the L-DCIM gateway (sold separately) with AKCPro software for data collection and tracking. Receive alerts when parameters are outside the specified ranges and synchronize video feeds with sensor data using the camera integration.

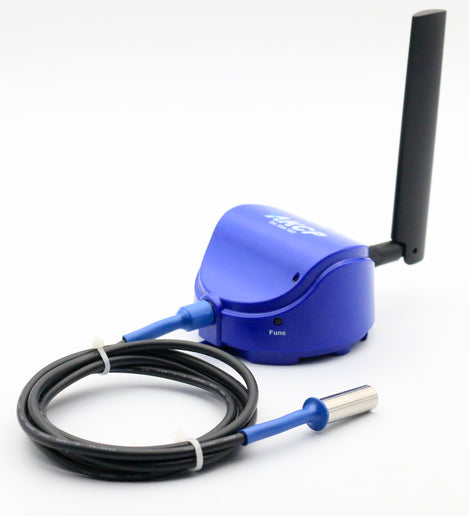

The weatherproof IP54 rated enclosure allows the sensor to operate in all environments and offers various mounting possibilities. For the best placement of the sensors, they are available with multiple cable lengths of 5 Ft., 10 Ft., 15 Ft., as well as a base sensor option with a stationary sensor attached to the unit and a 5 Ft. cable for the door contact.

The sensor can be powered by four (4) internal batteries or by an external micro-USB power source, leaving the batteries for back-up support. The batteries are guaranteed a 10-year life-span when broadcasting every 15 minutes.



Common Applications Include:

  • Data Centers
  • Pharmaceuticals
  • Hospitals
  • Warehousing
  • Cold Storage
  • Distribution Centers



Order Summary



Product Image

SKU

Sensor Version

Manufacturer Part # (MPN)
GC-AK-LBTHD Product Image

GC-AK-LBTHD

DISCONTINUED

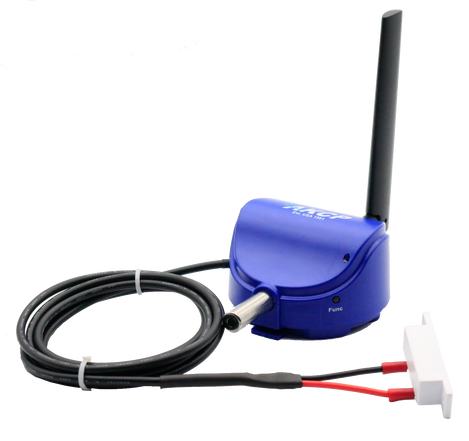

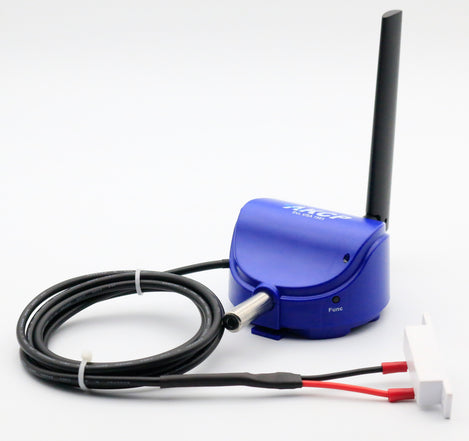

 Base Sensor LBTHD
GC-AK-LBTHD Product Image

GC-AK-LBTHD-5

DISCONTINUED

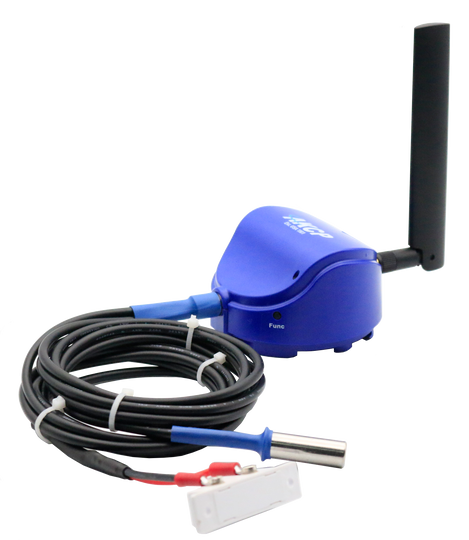

 5 Ft. Cable LBTHD-5
GC-AK-LBTHD Product Image

GC-AK-LBTHD-10

DISCONTINUED

 10 Ft. Cable LBTHD-10
GC-AK-LBTHD Product Image

GC-AK-LBTHD-15

DISCONTINUED

 15 Ft. Cable LBTHD-15

Features

Features of the LoRa™ Temperature & Humidity Sensor with Door Contact


  • Battery or USB Powered
  • 10 year guaranteed battery life
  • Multiple cable lengths for optimal sensor placement
  • IP54 rated casing for all environments
  • DIN rail, magnets, or wall mounting options
  • LoRa™ radio technology
    - Increased signal penetration
    - Maximized signal distance
    - "Listen before talk" to minimize packet collisions
    - Frequent broadcasting

Documents and Drivers

Documentation

LoRa Temp. & Humidity Sensor with Door Contact Product Information View (PDF)

Specifications

ANTENNAS

Di-Pole LoRa

CERTIFICATIONS

FCC Part15C, CE EN300220-2

CONNECTOR(S)

Micro-USB power supply

DIMENSIONS

LBTD Unit: 76.8 x 76.8 x 46.92 mm
With Sensor: 76.8 x 105.87 x 46.92 mm
Di-Pole Antenna: 9.56 x 38.63 x 115 mm

INDICATORS LED

Sensor Mode

MEASUREMENT ACCURACY

Temperature:
- Maximum: ±0.3 at -40ºC (±0.6 at -40ºF)
- Minimum: ±0.3 at +25ºC and ±0.3 at +75ºC (±0.6 at +25ºC and ±0.6 at +167ºF)
Humidity: 25°C ±2%RH

MEASUREMENT RANGE

Temperature: -40ºC to 75ºC (-40ºF to 167ºF)
Humidity: 0% to 100% relative humidity

MOUNTING

DIN Rail, Wall Mount, Magnetic

MPN

LBTHD

POWER CONSUMPTION

12 mWatt

PRODUCT POWER SUPPLY

Internal batteries or micro-USB port

RADIO

LoRa™ Radio
902-915 MHz
Max TX Power +20dBm

TEMPERATURE RANGE

Operating Temp: -35ºC to 80ºC (-31ºF to 176ºF)
Humidity: 20% to 80% (non-condensing)
