Home / Mercury 10″ PN Kit - PROFINET Diagnostic Tools

Mercury 10″ PN Kit - PROFINET Diagnostic Tools: 10/100 Ethernet - No cellular modem

$11,260.00

Leave a review

SKU: GC-MERCURY-10-100-KIT

MPN: 101-824320-US

Manufacturer: Procentec

Delivery: Ships within 7-14 business days
Qualifies for Free shipping

Ethernet Type

Modem Option

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp The Mercury 10” PROFINET Kit is a portable device providing Industrial Ethernet diagnostics for troubleshooting, monitoring, and commissioning PROFINET networks. In addition to the great Mercury features, this kits adds EtherTAP hardware and analysis license, and a license for the PROFINET Commissioning Wizard.

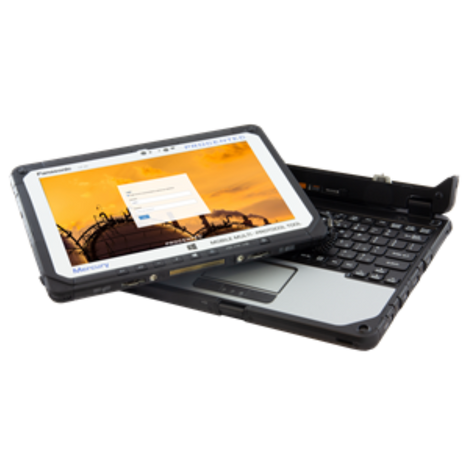

Mercury 10” device

Mercury is a rugged tablet that can be used also as a laptop. It has the Osiris software that provides high tech troubleshooting and maintenance capabilities for industrial Ethernet networks. The 10” screen provides easy to view topologies, tables and graphs. The dashboard is customizable and the software interface is easy to use. It has a remote and wireless connection and mobility for anywhere and anyplace. Device lists and alarm lists can be exported to make it easy to document issues or do further analysis. The Q-Factor feature has a weighted algorithm to score the quality of the network.

EtherTAP

EtherTAP provides a reliable network tap for Ethernet based networks. This monitoring device sends feed information to Osiris for analysis. The analysis license for Osiris is included. The device is available with 10/100 Ethernet or 1G Ethernet option.

Commissioning Wizard

The Commissioning Wizard is integrated into the Osiris software. It automates commissioning of PROFINET networks making it easy to prepare certification reports. The license for the wizard is included.

Browser Requirements

  • Must support HTML5 and JavaScript
  • Minimum versions for supported browsers
    - Chrome version 46 or higher (Optimal Performance)
    - Edge version 25 or higher
    - Firefox version 42 or higher
    - Safari version 5 or higher

Mercury 10" PROFINET Kit includes:

  • 1 x Mercury 10” (101-830220) (4G modem included with 4G Modem option)
  • 1 x PN Commissioning Wizard (101-700201),
  • 1 x EtherTAP: PROFINET Analysis License (101-700204 ) ,
  • 1 x EtherTAP 10/100 (513-00011A), (EtherTAP 1G included with Ethernet 1G option)
  • 1 x Netilities (39020),
  • 1 x TAP Din Rail Mount (70010057),
  • 1 x RJ45 to RJ45 3 meter Cable (123-637GRR3),
  • 1 x RJ45 to M12 3 meter Cable (123-642EMR3),
  • 1 x 360 degree hand strap (101-820221),
  • 1 x Carrying Case (101- 820222),
  • 1 x Osiris Software (101-700100)

Order Summary



SKU

Ethernet Type

Modem Option

Manufacturer Part # (MPN)
GC-MERCURY-10-100-KIT 10/100 Ethernet No cellular modem 101-824320-US
GC-MERCURY-10-100-4G-KIT 10/100 Ethernet 4G cellular modem 101-824330-US
GC-MERCURY-10-1G-KIT 1G Ethernet No cellular modem 101-825320-US
GC-MERCURY-10-1G-4G-KIT 1G Ethernet 4G cellular modem 101-825330-US

Features

Features of the Mercury 10" PROFINET Kit


  • Topology: galaxy, tree or customized view
  • Dynamic interactions for complete overview
  • Device information
  • Device connections with NAMUR status
  • Network scoring mechanism
  • Traffic light feature
  • Customizable dashboard

Documents and Drivers

Documentation

Mercury Brochure View (PDF)
Osiris on Atlas, Mercury and PC User Manual View (PDF)

Specifications

CABLE LENGTH

Ethernet cable maximum: 100 m

CONNECTOR(S)

  • USB: 1x USB 3.0, 1x USB 2.0
  • Expansion Slot: Micro SD/SDXC Memory Card
  • Ethernet: RJ-45

CORE

Intel® Core™ i5-7Y57 vPro™ processor

DIMENSIONS

203 x 18 x 132 mm

HUMIDITY

Maximum 98% relative air humidity

INTERFACE(S)

  • Bluetooth: Version 4.1 + EDR Class 1
  • WLAN: Intel® Dual Band Wireless-AC 8265

MEMORY

RAM: 4 GB (Max. 8 GB)

MOUNTING

handheld (handstrap and stylus supplied)

MPN

101-824320-US, 101-824330-US, 101-825320-US, 101-825330-US

OPERATING SYSTEM

Windows 10 Pro

PROTOCOLS

  • Supported: OPC UA, PROFINET, PROFINET I&MO
  • Supported (detect only): PROFINET, Modbus TCP, Ethernet/IP
  • Used: ARP, ICMP, DCP, SNMP, PROFINET I&M0

SECURITY/PROTECTION

IP 65 (MIL STD 810G and IEC 60529)

SPEED

Ethernet: 10/100/1000 Mbps

STORAGE CAPACITY

128 GB Solid State Drive (Serial ATA)

TEMPERATURE RANGE

  • Operating: -29°C to 60°C (-20°F to 140°F)
  • Storage: -51°C to 71°C (-60°F to 160°F)
