Mercury Multi-Protocol Diagnostic Tool Kit - Pro

Leave a review

SKU: GC-MERCURY-PRO-KIT

MPN: 101-823220

Manufacturer: Anybus Diagnostics

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

The Mercury Kit Pro is a complete solution for multi-protocol diagnostics in facilities of mixed architecture or ones transitioning between networks. The kit offers a robust tablet for troubleshooting, maintenance, and monitoring of Industrial Ethernet, PROFINET, and PROFIBUS networks. The new Osiris software provides a cross-platform package that allows for a clear overview of the networks health, preventing unexpected downtime.

Designed for field work and maintenance, the tablet is water and dust resistant for harsh environments and lightweight with an adjustable hand strap for easy mobility. It can connect remotely or wirelessly with Wi-Fi and Bluetooth making it perfect on the go.



PROFIBUS

On PROFIBUS networks the kit uses the same software as the ProfiTrace along with Osiris. The Mercury uses this software to analyze and detect any possible faults within the network. The built-in oscilloscope makes it easy to troubleshoot errors with a live view of the network’s health showing common problems like noise, reflections, and termination. The device also offers current lists and reports on devices and their status.



Included Software:

      • ProfiTrace 2
      • ProfiCaptain
      • SCOPEware



    Industrial Ethernet

    The Mercury works on the same easy to use software as the Atlas This provides user a friendly diagnostic interface with customizable topology views and a quality score (Q-factor) of your network. With the interactive topology, you are able to see a graphical view of the network showing diagnostics of all devices and how they are connected. The data collected follows the NAMUR NE 107 standard and gives the option of exporting device and alarm lists as CSV files.

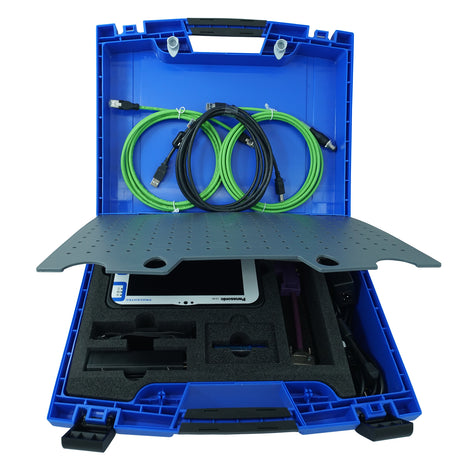

    The Mercury Kit Pro Includes:



    Qty

    Kit Item
    1 Mercury Rugged Tablet
    1 Power Cord
    1 360 Degree Hand Strap
    1 Carrying Case
    1 RJ45 to RJ45 3 Meter Cable
    1 RJ45 to M12 3 Meter Cable
    1 USB Cable
    1 ProfiCore Ultra 2
    1 ProfiCore TAP Connectors
    1 ProfiTrace 2 Software
    1 ProfiTrace SCOPE ware
    1 ProfiCaptain
    1 OSIRIS Software Standard Package (pre-installed and tested)

    Features

    Mercury Features:

    • Portable device
    • Wi-Fi and Bluetooth connected
    • Pre-installed software
    • Easy to use interface
    • Remote monitoring
    • Network topology
    • Customizable dashboard views
    • Traffic light feature


    Features with Industrial Ethernet Networks:

    • Topology views – galaxy, tree, customized
    • Device information
    • Device connections, with NAMUR status
    • Network scoring mechanism


    Features of PROFIBUS Networks:

    • Bus monitor for DP and PA with powerful statistics
    • Oscilloscope
    • Topology scan
    • Bar graphs
    • Reporting

    Documents and Drivers

    Documentation

    Mercury Brochure

    Mercury User Manual

    Specifications

    Connector(s)

    RJ-45

    Data Rate

    10/100/1000 Mbps

    MPN

    101-821220

    Protocols

    ARP, ICMP, DCP, SNMP, PROFINET I&M0, PROFIBUS
