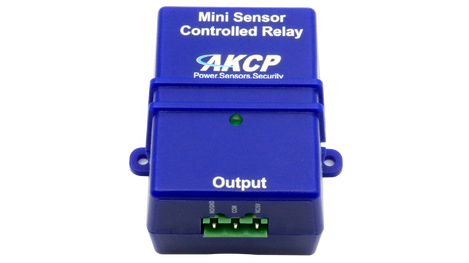

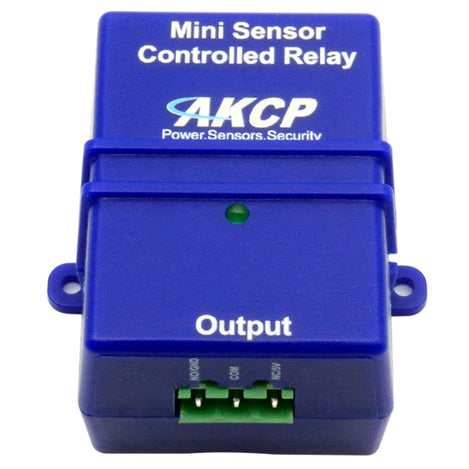

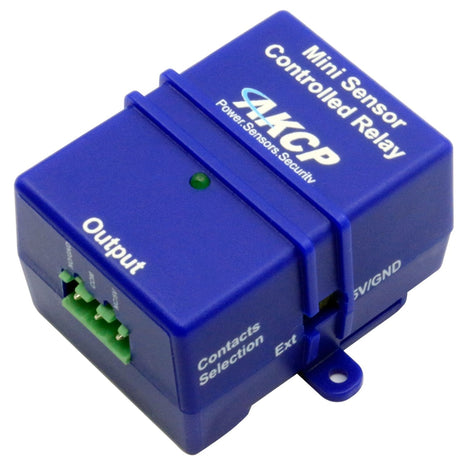

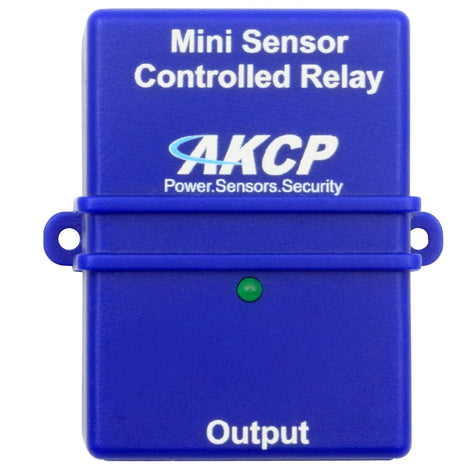

Mini Sensor Controlled DC Power Relay
Mini Sensor Controlled DC Power Relay
Product Images
Delivery: Ships within 7-14 business days
Shipping is Free on orders over $100
We've Got You Covered
1 year comprehensive warranty support for all products
30 day money back guarantee
*some exceptions apply
Product Information
Product Description
This mini sensor drives larger relays with a low current output from the sensorProbeX+ base unit. If your equipment has a relay that you would like to switch, based on a sensor input, this adapter will output 200mA - 5V DC based on a sensors status.
Use this smaller relay to drive the larger relay on your appliance.
Documents and Drivers
Documentation
Mini Sensor Controlled DC Power Relay Datasheet
Specifications
Cable
RJ-45 jack to sensor using UTP CAT5e/6 cable
Configuration
2 position switch configurations:
- 1. 5V and GND contacts (0.2A)
- 2. Free contacts
Dimensions
56 x 55 x 33.3 mm (2.20 x 2.17 x 1.31 inches)
Indicators LED
Relay active state
Mounting
DIN rail & Screw mounting

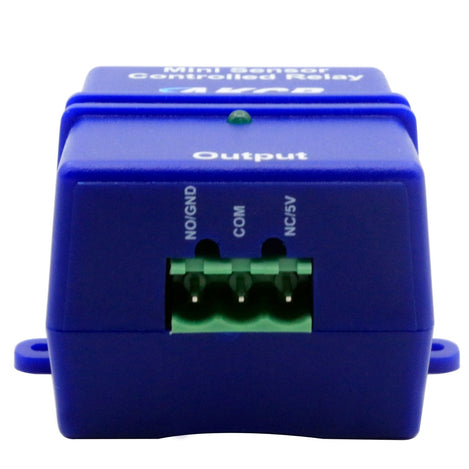

Output(s)
3 pin termninal Block
- NO, NC, COM
- 5V, GND, COM
Power
Powered by the controller unit. No additional power needed
Power Consumption
Typical 150 mWatt, 30 mA
Temperature Range
-40°C to +80°C (-40°F to +176°F)
Voltage
Free Contact:
- 24 VDC, Maximum 30 VDC
- 120 VAC
