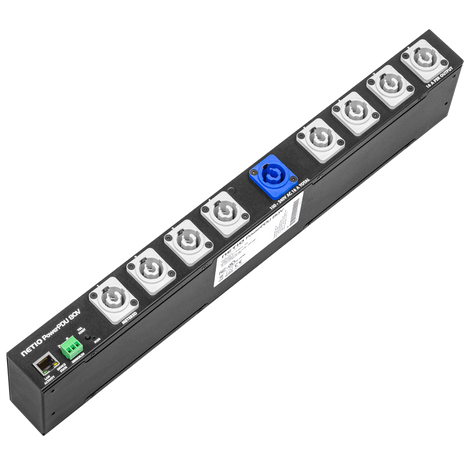

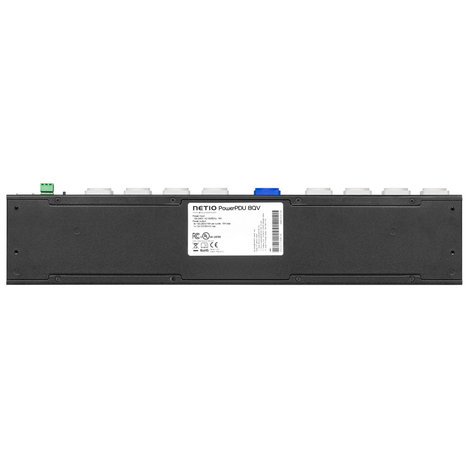

NETIO PDU 8QV - 8 Socket Smart PDU, PowerCON outlets & partial metering

$857.00

Leave a review

SKU: GC-NETIO-PDU8QV-NC

MPN: PowerPDU 8QV nc

Manufacturer: NETIO Products US INC

Delivery: Ships within 7-14 business days
Qualifies for Free shipping to the continental US

Product Information

Product Description

NETIO PowerPDU 8QV is a PDU (Power Distribution Unit) with 8 power outputs (US only) controlled and metered over a LAN. It fits into a 19” cabinet (1U). Each output can be controlled independently.

Electrical Measurements

PowerPDU 8QV supports two channels for electrical measurements: the PDU as a whole (all outputs combined), and the first output separately (Output1). A digital input (DI) can be used to control the outputs or read S0 pulses (electricity meter output).

Web Interface & NETIO Cloud

The device’s WEB interface can be used to control the outputs, configure the Scheduler for each output, and so on. With the NETIO Cloud service, the outputs can be controlled from anywhere. The NETIO Cloud service is provided for a fee, features SSL security and its servers are located in Europe.

Sample Web Interface Screen Display


Open APIs

Open API enables integration into third-party systems using a wide range of protocols (JSON, Modbus/TCP, SNMP, MQTT, Telnet, ...). NETIO PowerPDU 8QV can be controlled from multimedia AV systems (Crestron, RTI, Control4, …)


Use Cases

  • Restart over the Web
  • Energy savings (switching on/off at specified times)
  • Switching electrical outputs on/off with a mobile app
  • Power output switching and measurements using NETIO Cloud
  • Measuring the consumption history of the powered devices
  • Controlling the power (to TV sets, audio systems, lighting) from various AV systems in stores, smart homes, museums



AV Drivers

NETIO PowerPDU 8QV can be easily used with most popular AV systems

  • BrightSign: free plugin AN47
  • CONTROL 4
  • CRESTRON: free & paid driver
  • ELAN
  • KRAMER: free driver to control outputs
  • biamp
  • RTI
  • SAVANT
  • LOXONE: example AN53
  • Home Assistant: drivers by community
  • OpenHAB: drivers by community
  • And More!

Features

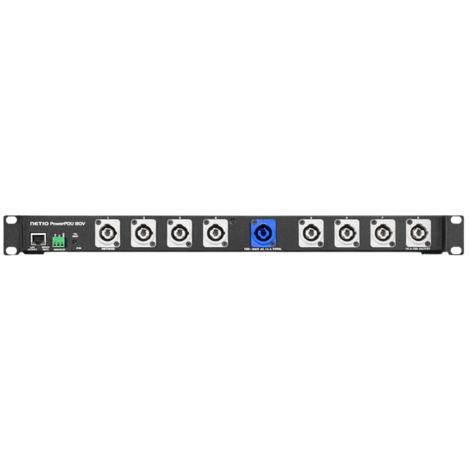

  • 8-outlet PDU designed for 19” rack installations
  • Independent control over each outlet via web, mobile app, NETIO Cloud, or Open API
  • high-accuracy power monitoring (V, A, W, Wh, TPF, Hz)
  • ZVS switching to manage high inrush currents
  • Programmable scheduling
  • configurable PowerUp states
  • Secure, remote access through the NETIO Cloud

Documents and Drivers

Documentation

NETIO PowerPDU 8QV Flyer

NETIO PowerPDU 8QV User Manual

NETIO PowerPDU 8QV Quick Installation Guide

Specifications

GENERAL

LAN (RJ45)

Yes

WiFi

No

Web

Built-in web server

Online demo

Yes

FW upgrade

Yes - web

Mobile app

NETIO Mobile2 (Android)

Cloud connection needed for installation

No

Control button for each output

No

Cloud service

NETIO Cloud (for a fee, SSL security)

FUNCTIONS

Lua support

No

Scheduler function (weekly calendar)

Yes

IP WatchDog function

No

Sending e-mails

No

POWER

Power input

IEC-320 C20, 110/230V (max. 16A)

Mechanical power switch

No

Power output

8x IEC-320 C13 (max 10A / output)

Number of controlled outputs

8

LED indication of output states

No

Digital inputs (DI)

1x input (contact) + S0 counter (4 bytes)

Power for DI

12V power (Max 50mA)

ELECTRICAL MEASUREMENTS

Number of channels for measurements

2 (All Outputs + output 1)

Parameters measured for the whole device

Grid frequency [Hz], Voltage [V], Total current [A], Total power input [W], Overall TruePF [-]), Overall phase shift [°] / Total Energy [Wh] / Total reverse energy [Wh],

Parameters measured for output 1

Current [A] / Power input [W] / TruePF [-] / Phase shift [°] / Energy [Wh] / Reverse energy [Wh]

Accuracy of electrical measurements

better than 1% (in the entire temperature range)

Internal consumption

1-3 W

SECURITY & SAFETY

SPD – surge protection

Yes, type 3 (125J (8/20us))

Switching element

relay SPST-NO, ZVS

ZVS (Zero Voltage Switching)

Yes

IOC (output state independent from FW updates)

Yes

PowerUp state of outputs

On / Off / LAST state

HARDWARE

Dimensions

439 x 41 x 90 mm

Mechanical mounting

19“ (1U) rack mount

Ingress protection

IP30

Sound output

No
