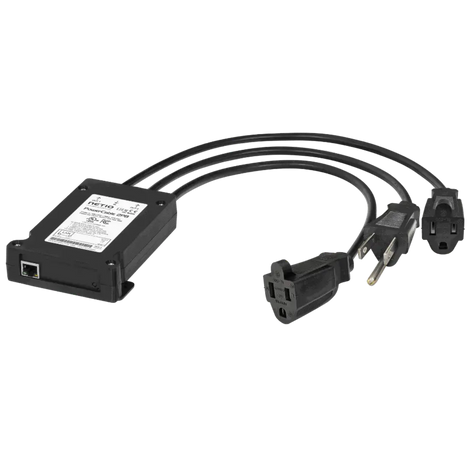

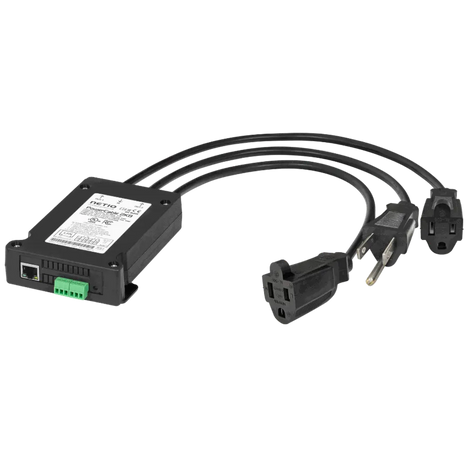

NETIO PowerCable Flat PDU, 2 US outlet (Power metering optional): No metering

$341.00

Leave a review

SKU: GC-NETIO-PC-2PB

MPN: PowerCable 2PB

Manufacturer: NETIO Products US INC

Delivery: Ships within 7-14 business days
Qualifies for Free shipping to the continental US

Power Metering

Product Information

Product Description

NETIO PowerCables 2KB & 2PB are flat PDUs (Power Distribution Unit) with LAN (via RJ45 Ethernet) & WiFi connectivity. The term, Flat PDU, refers to its ability to be installed in limited space such as behind a TV, or in a double ceiling. Its ideal for areas where space-saving design and remote control are essential.

  • AV equipment
  • digital signage
  • IT peripherals
  • industrial systems

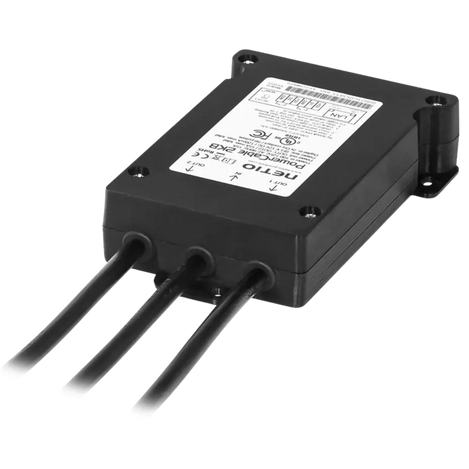

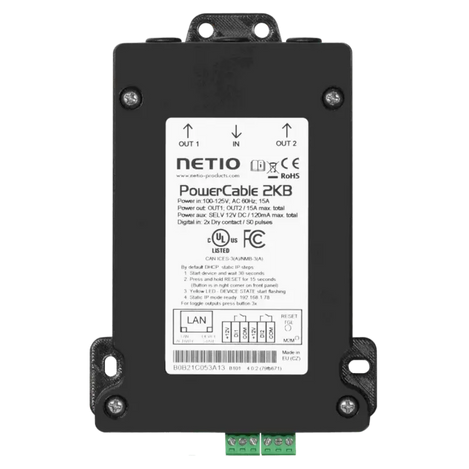

PowerCable 2KB is designed for environments that require compatibility with IT and industrial systems. It supports standard communication protocols such as SNMP, Modbus/TCP, Telnet, and HTTP(s) JSON, making it a perfect fit for server rooms, network monitoring tools, and automation systems.

Best For: IT administrators, industrial automation, monitoring tools.

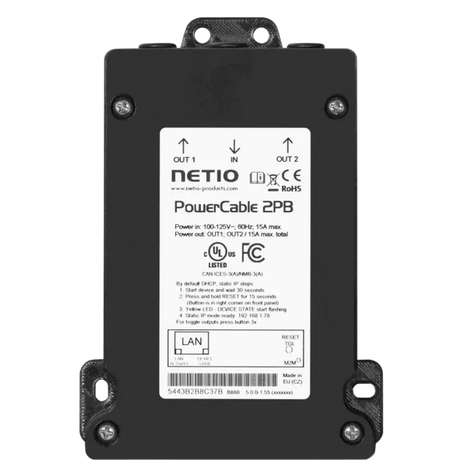

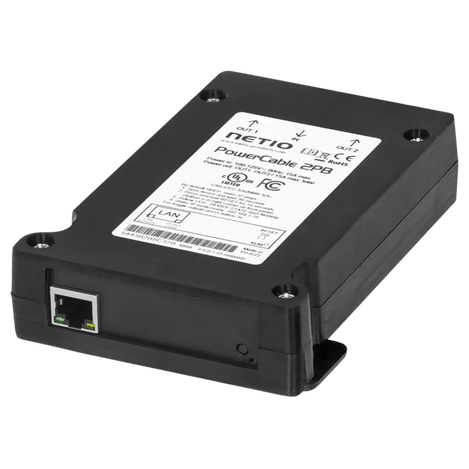

PowerCable 2PB caters to AV integrators and IoT system designers by offering compatibility with Crestron, Control4, RTI, and other automation platforms. It uses JSON over HTTP(s) and MQTT-flex protocols, making it particularly easy to integrate with smart building controls and AV control processors.

Best For: AV installers, smart buildings, digital signage, IoT developers.

Outputs

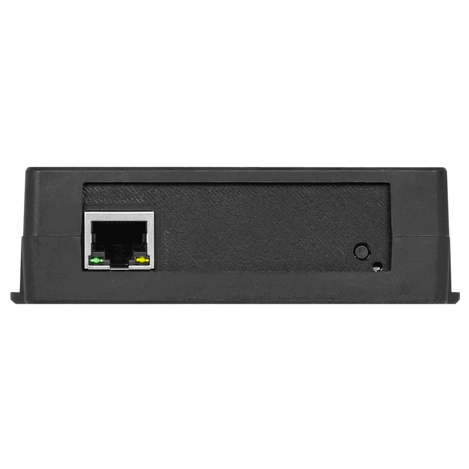

Both of these flat PDUs are connected to LAN via RJ45 (Ethernet) or WiFi. Each output can be switched manually (on/off) over the web, through NETIO Cloud service, or with a Mobile App (Locally or via NETIO Cloud).

Output/Input for Metering Option (2KB only)

With metering option, both power outputs are metered and can individually measure power consumption (A, kWh, TPF, W, V, Hz).

DI (Digital Inputs) with 4-byte pulse counters can be used to connect momentary switches (dry contact) or S0 outputs of electricity, water or similar meters.

Open APIs (protocols, M2M)

Open API enables integration into third-party systems using a wide range of protocols (JSON, Modbus/TCP, SNMP, MQTT, Telnet, ..).

NETIO Cloud service

For an additional fee, the NETIO Cloud service brings in the ability to control the outputs from anywhere. It also uses SSL/TLS security and servers in Europe.

AV drivers

AV drivers make it easy to connect NETIO sockets to professional Audio/Video control systems such as Utelogy, Crestron, Control4, etc.

Typical applications & Usage

Both PowerCables

  • Remote restarting such as all appliances connected to the same circuit branch
  • Controlling the charging of e-bikes, boats and other appliances up to 3.6 kW (230V/16A)
  • Controlling the outputs using Open API (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...)
  • Integration with various third-party programs and applications
  • Controlling device from the NETIO Mobile 2 app
  • NETIO Cloud service, provided for a fee, enables central control of outputs of multiple devices in various locations

Additional usages for PowerCable 2KB (metering option)

  • Electricity metering and distribution
  • Remote energy consumption monitoring in one or two circuit branches
  • Measuring electricity consumption above 16A



Order Summary

 SKU Metering Manufacturer Part # (MPN)
GC-NETIO-PC-2PB No metering PowerCable 2PB
GC-NETIO-PC-2KB With metering PowerCable 2KB

Features

  • Intelligent Switching - Control the power state of connected devices remotely.
  • Energy Efficiency - Schedule operation to reduce unnecessary energy use.
  • Compact and Discreet - Easily installs behind displays, servers, or control panels.
  • Safe Power Handling - Zero Voltage Switching (ZVS) ensures reliable operation of sensitive electronics.
  • Electricity Metering - with metering option (2KB)
  • Lua scripting - with metering option (2KB)

Documents and Drivers

Documentation

Power Cable 2PB Flyer

Power Cable 2KB Flyer

PowerCables 2PK and 2PK User Manual

PowerCable 2PB and 2KB Quick Installation Guide

Specifications

GENERAL

Outlets

2

Outlet Control/Metering

  • 2KB: Switched + Full Metering
  • 2PB: Switched

Outlet Type

North America NEMA 5-15r

Power Cable - Input

North America (US)

PDU Form Factor

Cable Mount PDU

Network Connectivity

LAN(RJ45) + WiFi

LAN (RJ45)

Yes

WiFi

Yes

Web

Built-in web server

FW upgrade

Yes - web

Mobile app

NETIO Mobile2 (LAN + Cloud)

Control button

Yes

CLOUD INFORMATION (additional fee)

Cloud connection needed for installation

  • 2KB: Yes
  • 2PB: No

Cloud Service (additional fee)

NETIO Cloud (SSL security)

Open API (M2M protocols)

JSON over HTTP (default), MQTT-flex (MQTT extension, SSL enabled), SNMP v1 & v3, Modbus/TCP, XML over HTTP, URL API (http get for writing only), Telnet (outputs only, backwards compatible with KSHELL), HTTP Push JSON, HTTP Push XML

FUNCTIONS

Lua scripting support

No

Condition & Rules

Yes

Scheduler function (weekly calendar)

Yes

IP (ping) WatchDog function

Yes (Condition & Rules)

IP WatchDog function

Yes

Power WatchDog function

  • 2KB: Yes
  • 2PB: No

Sending e-mails

No

POWER

Power input

Terminal block (Ø 2.5mm), 100-240VAC (50/60Hz) / max 12A

Power output

Terminal block (Ø 2.5mm)

Metered outputs

  • 2KB: 2 channels
  • 2PB: None

Digital Outputs:

2 total

Power outputs

  • 2KB: 2x Relay + ZCS (Out 1, 2: SPST-NO) – Max 16A
  • 2PB: 2x Relay + ZVS (Out 1, 2: SPST-NO) – Max 16A

DI (Digital Inputs)

  • 2KB: 2 (dry contact) + S0 counter (4 bytes)
  • 2PB: None

Internal consumption

Max 2 W

SECURITY & SAFETY

SPD – surge protection

Yes, type 3

ZVS (Zero Voltage Switching)

  • 2KB: No
  • 2PB: Yes

ZCS (Zero Current Switching)

  • 2KB: Yes
  • 2PB: No

IOC (output state independent from FW updates)

Yes

PowerUp state of outputs

On / Off / LAST state

HARDWARE

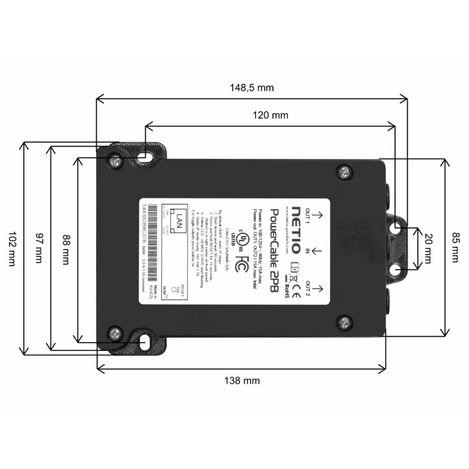

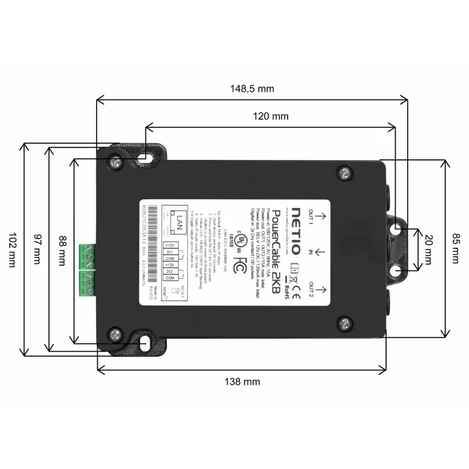

Dimensions

102 x 32 x 149 mm (4 x 1.25 x 5.8 in)

Weight

  • 2KB: 1.01 lb
  • 2PB: 0.98 lb

Mechanical mounting

19 in (1U) rack mount

Ingress protection

IP20

Sound output

No

Temperature Range

-20°C ~ 55°C (-4°F ~ 131°F)
