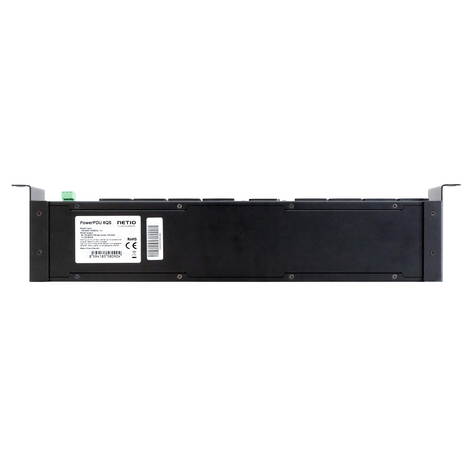

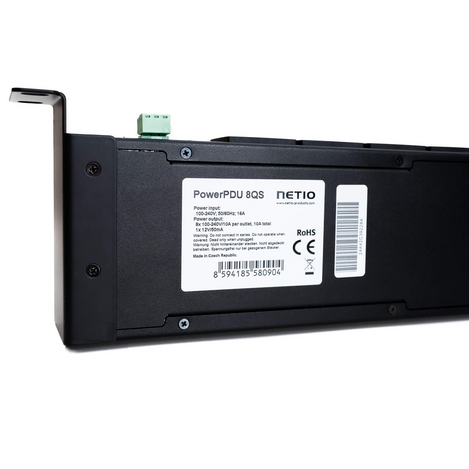

Netio PowerPDU 8QS, 8x IEC-320 C13 switched and metered PDU

$479.95

Leave a review

SKU: GC-NETIO-PDU8QS-US

MPN: PDU8QS

Manufacturer: NETIO

Stock Status: Out of Stock

Delivery: This item is currently out of stock. Estimated shipping date is Jul 8.
Qualifies for Free shipping

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

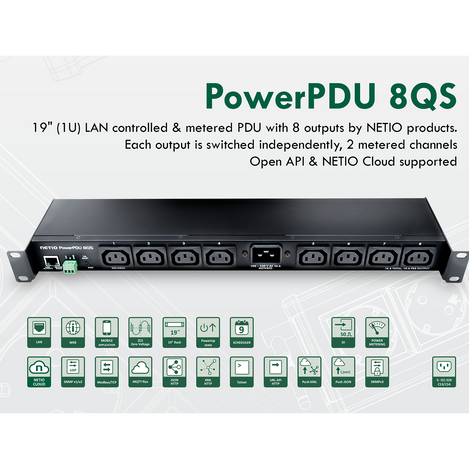

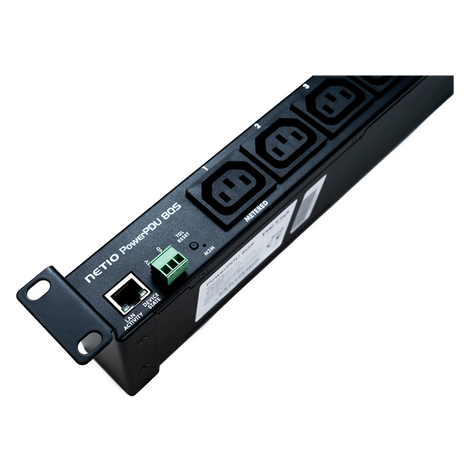

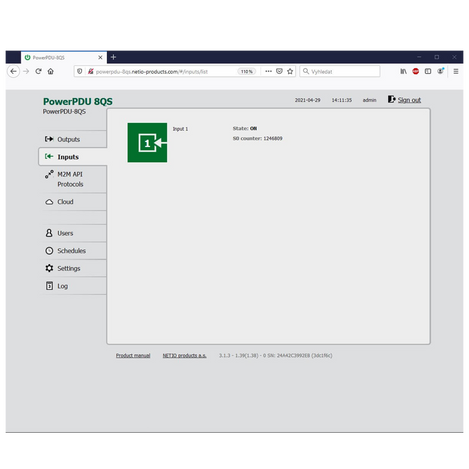

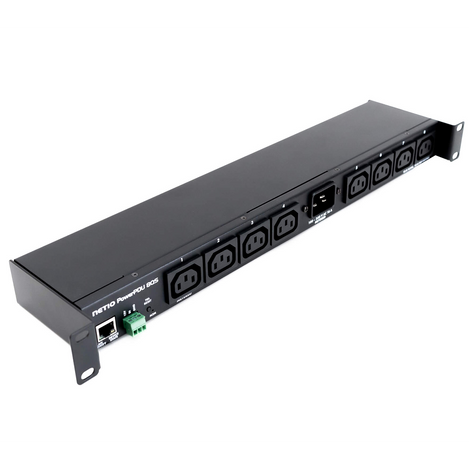

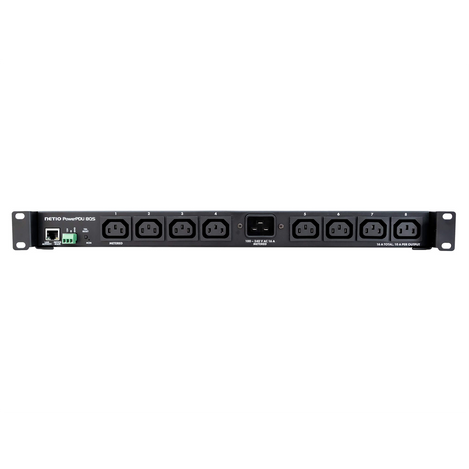

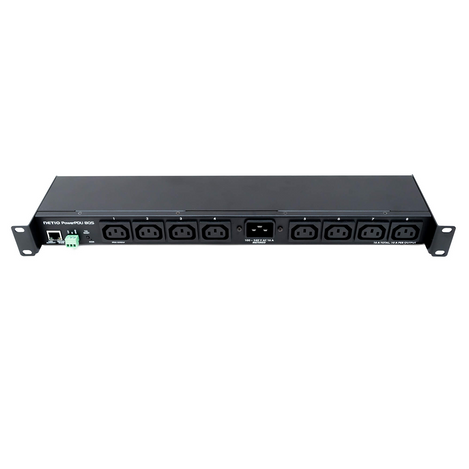

NETIO PowerPDU 8QS is a PDU (Power Distribution Unit) with eight power outputs (8x IEC-320 C13) controlled and metered over a LAN. It fits into a 19” cabinet (1U). Each output can be switched on/off individually. PowerPDU 8QS supports two channels for electrical measurements: the PDU as a whole (all outputs combined), and the first output separately (All Outputs + 1). A digital input (DI) can be used to control the outputs or count S0 pulses (electricity meter output).

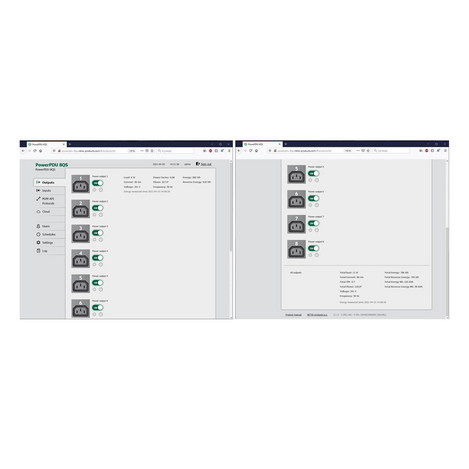

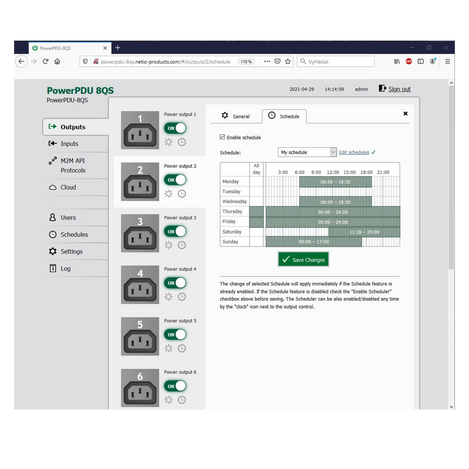

NETIO PowerPDU 8QS can be configured with a web browser (allows output control, connection to NETIO Cloud, Open API communication settings, etc.).

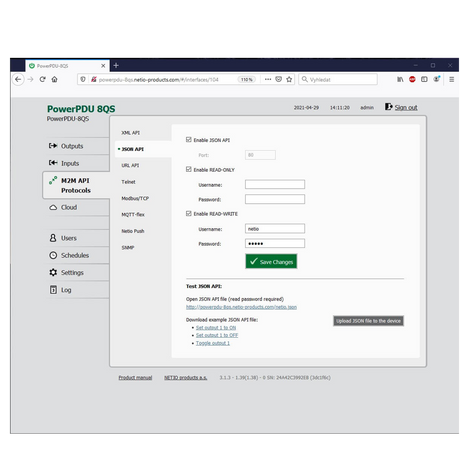

Thanks to the Open API, integration with third-party systems using various protocols (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...) is easy. Ready-made AV drivers make it simple to connect the NETIO PDU to professional Audio/Video systems such as Neets, Crestron, Control4, RTI, Savant and more.

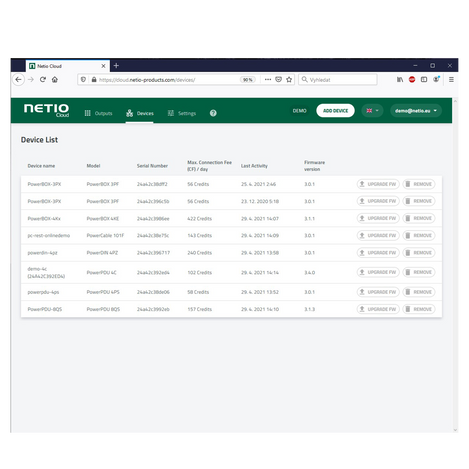

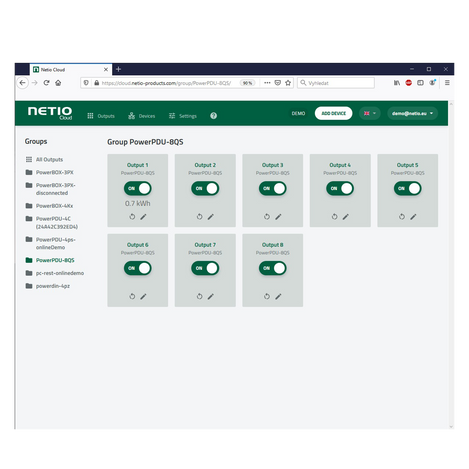

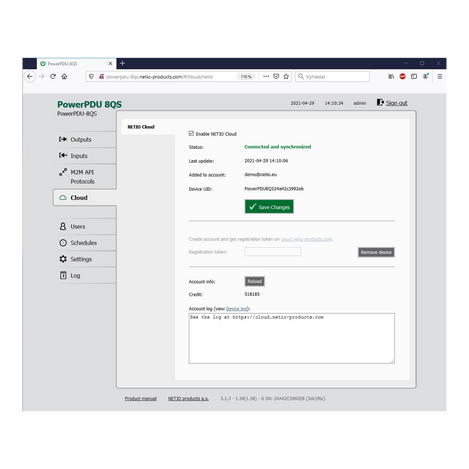

With the NETIO Cloud service, the outputs can be controlled from anywhere. The NETIO Cloud service, provided for a fee, uses SSL security and servers in Europe.

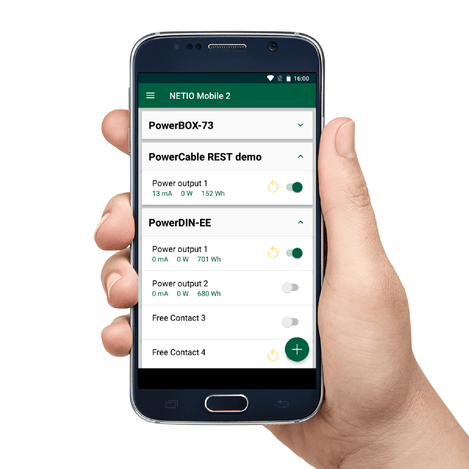

The NETIO Mobile2 app controls each output individually over LAN (local network).

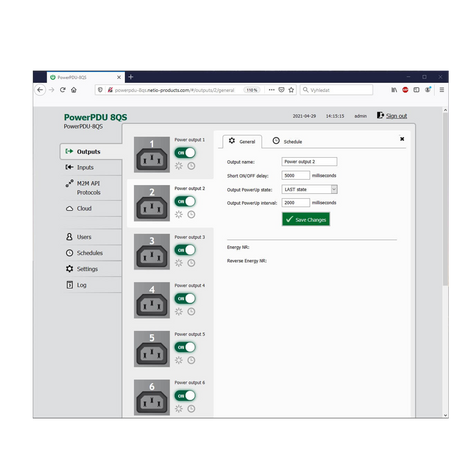

To switch the outputs on in a sequence, a power-up delay can be configured for each output.

Features

Features of the NETIO PowerPDU 8QS


    ZVS (Zero Voltage Switching)

    ZVS (Zero Voltage Switching) means switching the 110/230VAC output when the immediate voltage is zero.
    ZVS is a good solution for switching on/off devices such as switching power supplies.
    ZVS is not suitable for controlling inductive loads (transformers or motors), as it increases the probability of relay damage when such types of loads are frequently switched on/off.
    NETIO products without energy metering support ZVS (Zero Voltage Switching) when switching 110/230V relay outputs.
    ZVS is sufficient relay switching technology for most load types, such as switching power supplies in IT solutions.

    IOC (Independent Output Control)

    Independent Output Control function of the NETIO device uses an independent system that ensures a stable operation of the output even if the main system is being restarted, updated, or is booting.
    Thanks to IOC, the controlled output can power devices that, for technical reasons, must be powered without interruption (such as servers). The output control is completely independent from the WiFi or LAN communication subsystem.

    PowerUp State

    The PowerUp State parameter (sometimes also called Cold start) defines the behavior of the 110/230V power output during the first milliseconds to seconds after powering up the device, before the LAN/WiFi communication with a master system is established.
    For some applications, it is important to set the correct state of a power output immediately after power is turned on (or restored). With servers in particular it is important to avoid undesired momentary switching.
    Possible settings for NETIO device
  • On
  • Off
  • LAST state restores the last state before the power was disconnected

    • Electrical measurements – only PowerPDU 8QS

    PowerPDU 8QS measures relevant electrical parameters on the first Output and all outputs together.

Documents and Drivers

Documentation

NETIO PowerPDU 8QS Manual View (PDF)
NETIO PowerPDU 8QS Flyer View (PDF)
NETIO PowerPDU 8QS Quick Installation Guide View (PDF)

Specifications

DIMENSIONS

  • PowerPDU 8QS: 439 x 41 x 90 mm
  • Package: 514 x 73 x 204 mm

    • INCLUDED IN BOX

  • NETIO PowerPDU 8QS
  • QIG (printed Quick Installation Guide)
  • Metal brackets to 19" cabinet (1U) + screw set
  • Power cord according to the order code

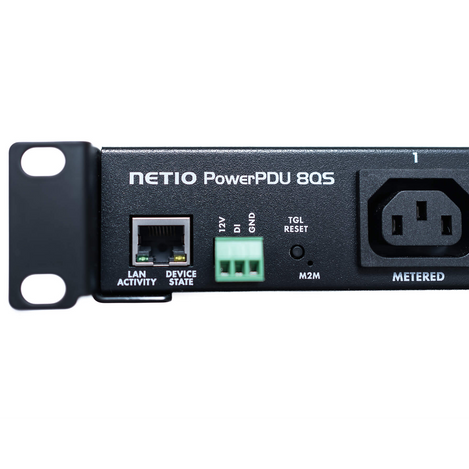

    • INTERFACES

  • LAN 10/100 Mbps (RJ-45)
  • 1x DI (Digital Input) with 12V DC (max 50mA)
  • LED indicators in the RJ45 jack & M2M LED

    • MPN

    PDU8QS

    POWER

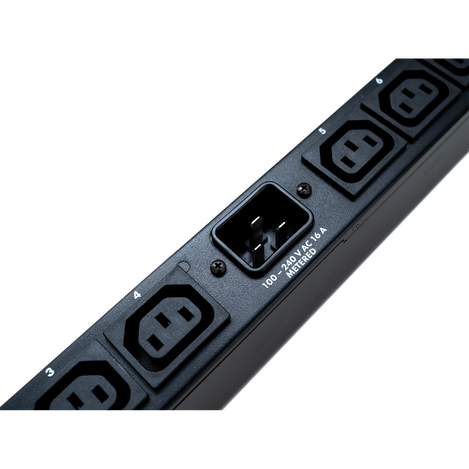

  • Power input: IEC-320 C20 (110/230V AC), max 16A

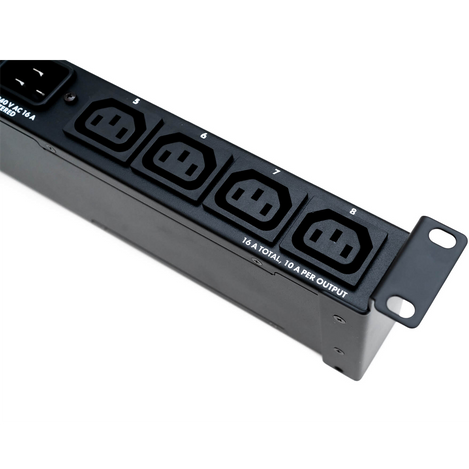

  • Power output: 8x IEC-320 C13, max 10A each

    • PRODUCT WEIGHT

  • PowerPDU 8QS: 1.3 kg
  • Package: 1.6 - 1.9 kg

    • PROTOCOLS

    Supported protocols: HTTP, DNS, NTP, uPNP, DHCP, ICMP, TCP/IP

    TEMPERATURE RANGE

    5A: -20 °C to 65 °C (-4°F to +149°F)
    16A:-20 to 50 °C (-4°F to +122°F)
