NIST2 Temperature & Humidity Sensor
NIST2 Temperature & Humidity Sensor
NIST2 Temperature & Humidity Sensor: THS01 1ft Fixed
Manufacturer: AKCP Co Ltd.
We've Got You Covered
The NIST2 temperature and humidity sensor can keep you current on conditions where both temperature and humidity can be critical, such as in Data Centers, remote sites and industrial controls. Combining temperature and humidity into the one sensor frees up an additional intelligent sensor port on your base unit.
Compatible with sensorProbe+ (SP+) base units, setup is simple with the unit's autosense function. Once plugged into the intelligent sensor port on the base unit, it automatically detects the presence of the sensor and configures it for you.
All you need to do is set your thresholds for low and high warning and critical parameters. The built in graphing function of the base unit gives you a pattern of temperature or humidity trends over time.
The THS00 is supplied with a free 5ft cable, it can be extended using standard CAT5 up to 300 meters (1,000ft) from the AKCP base unit. The sensor can be mounted with screws and adhesive.

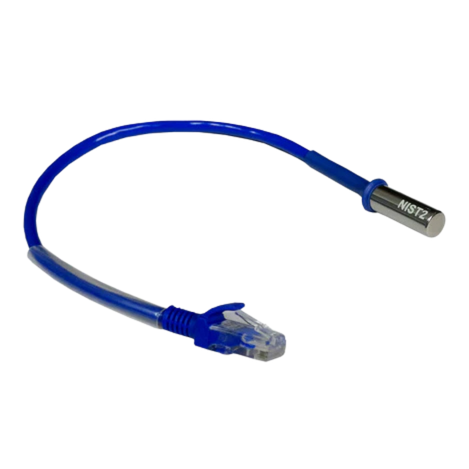

The THS01 is a 1ft fixed cable with a dual temperature and humidity sensor on the
THSxx custom lengths available
Custom lengths can be ordered to suit your needs. Call for information.
Manufacturer Part # (MPN)
|GC-AK-THS00-NIST2||5ft Extendable Cable||THS00-NIST2|
|GC-AK-THS01-NIST2||1ft Fixed Length||THS01-NIST2|
|GC-AK-THSxx-NIST2||Custom (Call to Order)|
- Temperature and Humidity Monitoring on a single sensor port
- Own SNMP OID for data collection via a network
- Temperature measurement from -55ºC – +75ºC
- Relative Humidity measurement from 0% – 100%
- Powered by base unit, no additional power needed
Documents and Drivers
NIST2 Temperature & Humidity Sensor Datasheet
- At 25°C
- Min : ±2%RH
- Max : ±5% RH
- THS00-NIST2: Run length is 1000 feet (300 meters) with approved low capacitance shielded cable or UTP
- THS01-NIST2: 1 Foot
RJ-45 jack to sensor using UTP CAT5e/6 cable
56mm x 55mm x 33.3mm (2.20in x 2.16in x 1.31in)
- ±0.5°C accuracy from -10°C to +75°C
- ±0.9°F accuracy from +14°F to +167°F
- -55°C to +75°C (-67°F to +167°F)
- 0 to 100% Relative humidity
sensorProbe+ series: 0.1°C (0.2°F) increments
- DIN rail mounting
- Screw mounting
Powered by the base units. No additional power needed
Typical 17.25mWatt, 1.45mA
1%RH increments, 0.01%RH sensor reading
Semiconductor, microprocessor controlled
