NIST3 Temperature & Humidity Sensor
NIST3 Temperature & Humidity Sensor
Product Images
NIST3 Temperature & Humidity Sensor
$190.00
SKU: GC-AK-THS01-NIST3
MPN: THS01-NIST3
Manufacturer: AKCP Co Ltd.
Stock Status: In stock
We Have You Covered
1 year comprehensive warranty support for all products
30 day money back guarantee
*some exceptions apply
Product Information
Product Description
This NIST3 temperature and humidity sensor will keep you informed when both temperature and humidity can be critical. Combining temperature and humidity into 1 sensor frees up an additional intelligent sensor port on your SP+ base unit.

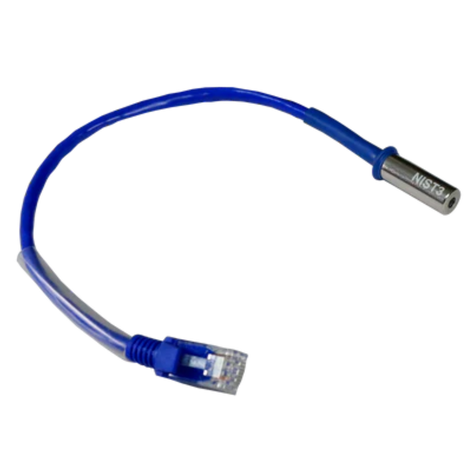

This sensor is housed in a metal tube that is thermally conductive and perforated to still provide accurate readings.
Available in fixed 1 ft cable length or in a custom extendable cable version.
Order Summary
SKU |
Cable Length
|
Manufacturer Part # (MPN) |
|---|---|---|
| GC-AK-THS01-NIST3 | 1 Foot Fixed Length | THS01-NIST3 |
| GC-AK-THSxx-NIST3 | Custom (Contact us) | THSxx-NIST3 |
Features
- Temperature and Humidity Monitoring on a single sensor port
- Own SNMP OID for data collection via a network
- Temperature measurement from -55ºC – +75ºC
- Relative Humidity measurement from 0% – 100%
- Powered by base unit, no additional power needed
Documents and Drivers
Documentation
NIST3 Temperature & Humidity Sensor Datasheet
Specifications
Accuracy
At 25°C
- Min : ±2%RH
- Max : ±5% RH
Cable Length
1 foot fixed length - customer lengths available
Communications cable
RJ-45 jack to sensor using UTP CAT5e/6 cable
Dimensions
56 x 55 x 33.3 mm (2.2 x 2.17 x 1.31 inch)
Measurement Accuracy
sensorProbe+ series
- ±0.5°C accuracy from -10°C to +75°C
- ±0.9°F accuracy from +14°F to +167°F
Measurement Range
- -55°C to +75°C (-67°F to +167°F)
- 0 to 100% Relative humidity
Measurement Resolution
sensorProbe+ series
- 0.1°C increments
- 0.2°F increments
Mounting
- DIN rail mounting
- Screw mounting
Power
Powered by the base units. No additional power needed
Power Consumption
Typical 17.25mWatt, 1.45mA
Resolution
1%RH increments, 0.01%RH sensor reading
Sensor Type
Semiconductor, microprocessor controlled
