CAN@net NT 100 - CAN to Ethernet Gateway with MQTT

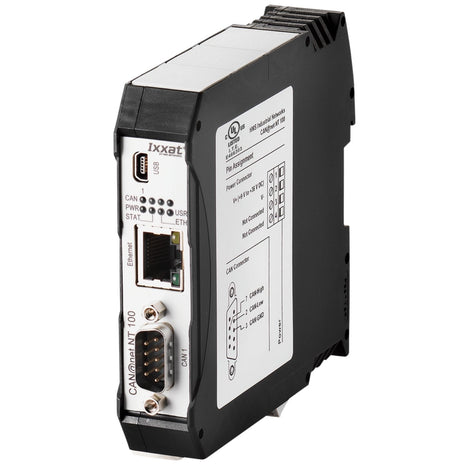

Ixxat is CAN Ethernet Bridge, the side of the unit has 1 rj45 Ethernet connector and 1 CAN db9 connector. Pin assignment for the CAN Connector and Power Connector are on the label.
CAN@net NT 100 - CAN to Ethernet Gateway with MQTT
Product Images
CAN@net NT 100 - CAN to Ethernet Gateway with MQTT
$624.00
SKU: GC-IXT-NT100
MPN: 1.01.0332.10000
Manufacturer: Ixxat
We Have You Covered
Product Information
Product Description
The Ixxat CAN@net NT 100 is a multifunctional gateway, bridging CAN and Ethernet networks for remote access and enhanced reliability. With efficient network management, the device has 1 CAN channel, and supports long-distance communication with several message processing and cloud connection functionalities.
Versatile connectivity for CAN-based networks
The CAN@net NT 100 simplifies the connection of computers to CAN-based networks. It provides versatile integration options for diverse requirements for a wide range of CAN applications.
Effortless network expansion
Facilitates system expansion and flexible network topologies, like tree or star structures, allows users to scale systems as needed without significant infrastructure changes.
Cost savings due to simple wiring
Optimized topologies enable simpler wiring in CAN systems which reduces the need for complex cabling, leading to cost savings in installation and maintenance.
Efficient CAN-Ethernet gateway
In gateway mode, the CAN@net NT 100 easily connects to computers via TCP/IP, facilitating the integration of multiple CAN systems through LAN or the Internet all while enhancing system accessibility.
Easy expansion as CAN-Ethernet-CAN bridge
In bridge mode, the device enables easy access and message exchange between CAN systems over Ethernet, allowing for long-range communication and control within extensive networks.
Enhanced and robust performance
With its CAN interfaces, the CAN@net NT 100 offers increased bandwidth and improved data transfer rates, ensuring dependable and efficient operation for critical applications.
Optimized network efficiency
The CAN@net NT 100 streamlines network traffic and enhances efficiency by
- offering advanced filter,
- ID translation, and
- data mapping and multiplexing functionalities.
Customizable actions
Additional programming of action rules, using LUA, enables tailored responses to specific network events.
Possibility for Cloud integration
Available MQTT protocol support allows for direct transmission of information to the cloud, facilitating IoT and remote monitoring applications.
Increased system protection
The CAN@net NT 100 enables easy network segmentation, whilst the integrated galvanic isolation enhances the protection of the device against damage to electronics caused by voltage peaks.
Seamless PC operation with VCI driver support
As the CAN@net NT 100 is supported by Ixxat VCI driver packages, It becomes easy to integrate with existing VCI-based applications and custom programs. This support allows for seamless Ethernet access to CAN systems.
User-friendly configuration and maintenance
The availability of a Windows configuration tool allows for easy setup and maintenance via USB or Ethernet, and makes the system accessible and manageable without required programming skills.
Features
- Versatile connectivity for CAN-based networks
- Effortless network expansion
- Easy expansion as CAN-Ethernet-CAN gateway
- Cost savings due to simple wiring
- Efficient CAN-Ethernet gateway
- Enhanced and robust performance
- Optimized network efficiency
- User-friendly configuration and maintenance
- Increased system protection
- Customizable actions
- Possibility for Cloud integration
- Seamless PC operation with VCI driver support
- Certifications: CE, UL, FCC, UKCA, WEEE Category IT and telecommunications equipment
Documents and Drivers
Documentation
CAN@net NT 100/200/420 User Manual
CAN-Gateway Configuator V6 for CAN@net NT and CANbridge NT User Manual
CAN@net NT C-API ixcan User Guide
CAN@net Generic Protocol Software Design Guide
CAN@net NT Manual Generic Protocol Software Design Guide
Application Note - How to change from CAN@net II to CAN@net NT 100
Downloads
VCI V4 - Windows 11, 10 [Driver, canAnalyser-Mini, Manuals, LabView and other add-ons]
Specifications
General
Content of Delivery
- CAN@net NT 100 device
- user manual
- Mini USB cable
- CAN-Gateway (free download)
- Configurator tool (free download)
- CAN driver VCI (free download)
- simple CAN monitor "canAnalyser Mini" (free download)
Dimensions (W x H x D)
99 x 114.5 x 22.5 mm (3.9 x 4.5 x 0.8 in)
Weight
157 g (5.5 oz)
Mounting
DIN rail mount (bracket included)
Current Consumption Type Value at Vcc Nom (mA)
110 mA (24 V DC), 230 mA (12 V DC)
Input Voltage (V)
9 V to 36 V DC, with overvoltage and polarity protection
Power Connector
2-pole
Isolation
1 kV DC for 1 sec.
Isolation Voltage (kV)
1 kV DC kV
Temperature
Operating: -40°C ~ 85°C (-40°F ~ 185°F)
Storage: -40°C ~ 85°C (-40°F ~ 185°F)
Humidity
10 to 95 %, non-condensing
Enclosure
IP 20 - Polyamide for top hat rail mounting
Configuration
Configured and updated with a straightforward Windows configuration tool through USB or Ethernet. This tool simplifies setting up filters, mapping, multiplexers, or translation rules, requiring no programming expertise.
Certifications
- CE, UL, FCC, UKCA
- WEEE Category - IT and telecommunication equipment
Connectors / Input / Output
1 x D-Sub 9 connector, 1 x RJ45 connector, 1 x Mini USB port, 1 x screw terminal (power)
CAN Mode
CAN high-speed (ISO 11898-2:2016)
CAN Baud Rate
5 kBit/s to 1 MBit/s
Connectors / Input / Output
1 x D-Sub 9 connector, 1 x RJ45 connector, 1 x Mini USB port, 1 x screw terminal (power)
CAN Mode
CAN high-speed (ISO 11898-2:2016)
CAN Baud Rate
5 kBit/s to 1 MBit/s
