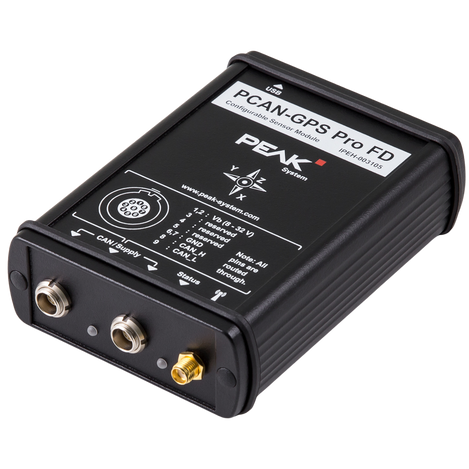

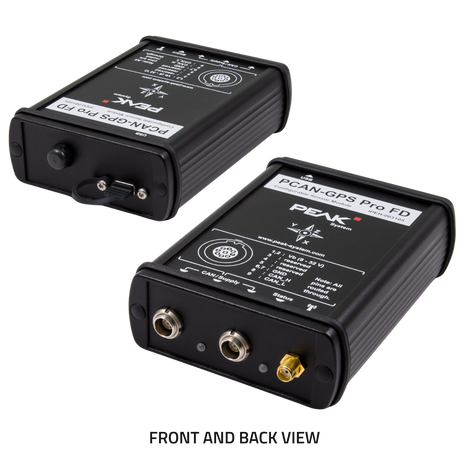

PCAN-GPS Pro FD - CAN FD Combo Sensor Module with GPS Position
SKU: GC-CAN-GPS-PRO-FD
MPN: IPEH-003105
Peak System Technik
Qualifies for free shipping to the continental US
Stock Status: In stock
Product Description
The PCAN-GPS Pro FD is a rugged, configurable sensor module that outputs position, orientation, and acceleration data via CAN/CAN FD. It integrates:
-
3D accelerometer
-
3D gyroscope
-
Magnetometer
- GNSS receiver (up to 25 Hz update rate)
Dual LEMO circular connectors support easy integration into CAN-based measurement chains.
Configuration (sensor parameters, data acquisition, CAN messaging) is done over USB using the provided Windows® software. Once set up, the device operates standalone as a CAN node. Built for harsh environments.
Package Contents
- 1x PCAN-GPS Pro FD in aluminum casing
- External antenna with 3m cable and magnetic fastening for satellite reception
- PCAN-GPS Pro FD Configuration for Windows® 11 (x64/ARM64), 10 (x64)
- Manual in PDF format
Features
- STM32H745 microcontroller with Arm® Cortex® M7 and M4 dual core and 2 MByte flash
- High-speed CAN connection (ISO 11898-2)
- Complies with CAN specifications 2.0 A/B and FD
- CAN termination can be activated
- CAN connection and supply via 9-pin LEMO circular connectors with Alpha coding (30°)
- High-speed USB 2.0 via USB-C connector
- Receiver for navigation satellites u-blox NEO-M9N
- Supported navigation and supplementary systems: GPS, Galileo, BeiDou, GLONASS, SBAS, and QZSS
- Simultaneous reception of 4 navigation systems
- Gyroscope and three-axis accelerometer ISM330DLC from ST
- Electronic three-axis magnetic field sensor IIS2MDC from ST
- 2 RGB LEDs for status signaling
- Configuration with a Windows® software via USB
- Supercap for preserving the RTC and the GPS data to shorten the TTFF (Time To First Fix)

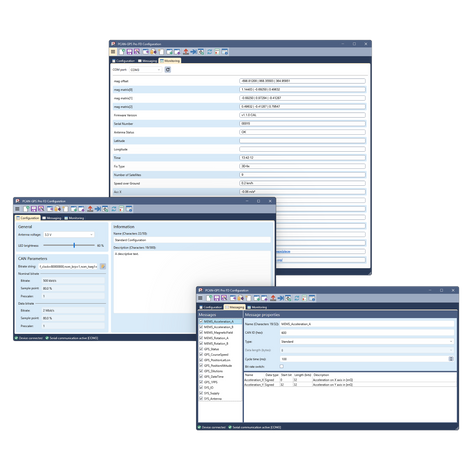

Features of the software PCAN-GPS Pro FD Configuration
- Windows® program for configuring the PCAN-GPS Pro FD via USB
- Setting the antenna supply: 3.3 V / 5.0 V / off
- Setting the LED brightness
- Setting the CAN CC or CAN FD bit rates, if required with bit rate string from separate "Bit Rate Calculation Tool" software for own bit rate parameters
- CAN messages:
- Predefined layout of sensor and device data in CAN messages
- Customization possibilities: CAN message enabled, CAN ID, cycle time
- Monitoring the current sensor states on an overview page
Documents and Drivers
Documentation
PCAN-GPS Pro FD User Manual
Downloads
PCAN-GPS Pro FD Configuration Software
Specifications
GENERAL
Power supply
Dimension (W x D x H)
Weight
Operating temperature
Storage & transport temperature
Relative humidity
Enclosure
CONNECTORS
I/O + Supply
Antenna
CAN (FD)
Protocols
Physical transmission
CAN bit rates
CAN FD bit rates
Transceiver
Internal termination
MICROCONTROLLER
Type
Clock frequency quartz
Clock frequency internally
Memory
