PCAN-MicroMod Analog / Digital Mix 3 Module

$329.00

Regular price: $369.00

Leave a review

SKU: GC-CAN-MICROMOD-MIX3

MPN: IPEH-002206

Manufacturer: PEAK-System

Stock Status: Out of Stock

Delivery: Ships within
5 to 7 business days
Qualifies for Free shipping

Best price guaranteed!* Learn more.


Call now for volume and discounted price match information.
Phone: (800) 975-4743 or (630) 245-1445
Email: sales@gridconnect.com

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

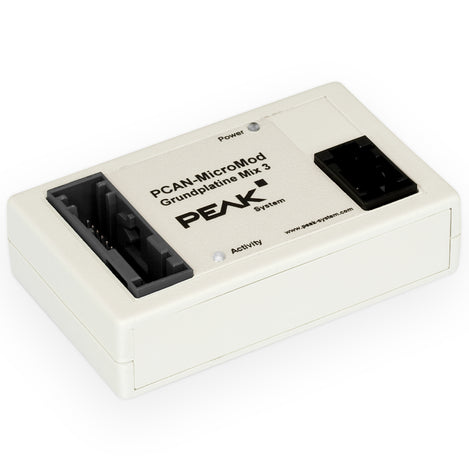

The MicroMod M3 Module is a packaged version of the MicroMod CPU. Since only a limited set of the Micromod's inputs and outputs can be brought out to the terminal blocks, several packaged versions are available in different configurations. The Mix 3 (M3) Version has a specific mixture of inputs and outputs for use in a number of automotive and industrial applications. See Specifications for additional details on the devices configuration.

Documents and Drivers

Documents:


PCAN-MicroMod Mix 3 User Manual (PDF)


Downloads:


PCAN-MICROMOD Configuration (ZIP)


CAN Download Support:


View the available Peak System downloads:

Specifications

CONNECTORS

Tyco automotive connectors

ENCLOSURE

Plastic Enclosure

INPUTS

  • 8 Analog Inputs
  • 0 to 4.1V
  • 10 bit resolution
  • Voltage Protection
  • Another 8 Analog Inputs
  • Schmitt trigger behavior (Vh = 4 V, Vl = 2,5 V)
  • Voltage level 5 - 18 V
  • Pull up or down on each channel
  • 4 Frequency Inputs
  • Frequency range 0 - 10 kHz

MPN

IPEH-002206

OUTPUTS

  • 8 Digital Outputs
  • High-side drivers, 350 mA continuous current, 500 mA short-circuit current
  • 4 outputs switchable in low-side drivers, 700 mA continuous current, 1 A short-circuit current
  • Short-circuit protection
  • 4 Frequency Outputs
  • Low-side drivers, 350 mA continuous current, 1 A short-circuit current
  • 2 outputs switchable to high-side drivers, 1,5 A continuous current, 5 A short-circuit current
  • Short-circuit protection
