PCAN-MicroMod FD DR CANopen Digital 1

$449.00

Leave a review

SKU: GC-CAN-MICROMOD-CANOPEN-FD-D1

MPN: IPEH-003100

Manufacturer: Peak System Technik

Stock Status: In stock

Delivery: Ships same or next business day
Qualifies for Free shipping to the continental US

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

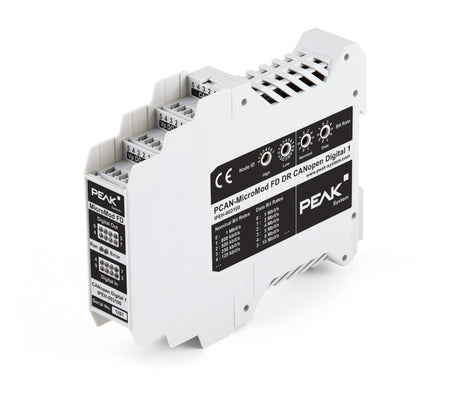

Authorized North America Distributor StampThe PCAN-MicroMod FD CANopen Digital 1 is an I/O module for operation in CANopen and CANopen FD networks. It can handle data transmissions from sensors, machines, and complex product plants. With extended temperature range and DIN rail mounting, this device is ideal for industrial environments.

There are 8 digital inputs and 8 digital outputs. The inputs are galvanically isolated in 2 groups up to 100 V from the device supply. The 8 digital outputs can be loaded up to 500 mA. Reliability is increased with thermal protection, short-circuit detection and open-load detection.

With rotary switches for Node ID and bit rates, no additional configuration software is needed for setup.



Features

  • CANopen and CANopen FD connection
  • 8 digital isolated inputs
  • 8 digital outputs
  • Thermal protection, short-circuit & open-load detection
  • Certified by CiA

Documents and Drivers

Documentation

PCAN-MicroMod FD DR CANopen Digital 1 User Manual

PCAN-MicroMod FD DR CANopen Digital1 CiA Certificate

Downloads

CANopen EDS file for the PCAN-MicroMod FD DR CANopen Digital 1

PEAK-Flash
Easy-to-use tool for updating the firmware of PEAK-System hardware products as well as CAN and LIN adapters.

Specifications

Certifications

CE, CANopen

Connector(s)

6 x screw terminal block 5-pin, Phoenix contact

Current

Consumption: max. 20 mA a t24V

Data Bits

  • CANopen Rate Nominal: 20, 50, 125, 250, 500, 800, 1000kbit/s
  • CANopen FD Rate Nominal: 250 ,500, 800, 1000 kbit/s
  • CANopen Rate Data: 1 ,2, 4, 5, 8, 10 Mbit/s

Dimensions

111x 22.6 x 99 mm

Humidity

8 I/O digital inputs with isolation for 2 groups of 4 inputs up to 100 V against device supply

Input/Output

8 I/O digital outputs with thermal protection, short circuit detection, open load detection

Isolation

Galvanic isolation up to 500V against power supply

Mounting

DIN rail

MPN

IPEH-003100

Protocols

  • OSI layer 2: CAN FD ISO11898-1:2015,CAN 2.0 A/B
  • Higher OSI layers: CANopen FD (based on CANFD), CANopen (based on CAN2.0)

Security/Protection

IP20, Ingress (IEC 60529)

Specifications

CANopen:

  • CiA® 301 Version 4.2.0–CANopen application layer and communication profile
  • CiA® 401 Version 3.0.0–CANopen device profile for generic I/O modules
  • CiA® 1301 Version 1.0.0–CANopen FD application layer and communication profile
  • Pending:CiA® 401-B/F–CANopen FD device profile for generic I/O modules

Temperature Range

  • Storage: -40°C to +70°C (-40°F to +158°F)
  • Operating: -40°C to +85°C (-40°F to +185°F)

Termination

Switchable on board (120 Ω between CAN-High and CAN-Low)

Transceiver

NXP TJA1044GT

Voltage

Operating: 12-36 V DC, 24 V nominal
