PCAN MiniDiag FD - Handheld Diagnostic Tool

$394.00

Regular price: $395.00

Leave a review

SKU: GC-CAN-MINIDIAG-FD

MPN: IPEH-003070

Manufacturer: PEAK-System

Stock Status: In stock

Delivery: Ships same or next business day
Qualifies for Free shipping

Best price guaranteed!* Learn more.


Call now for volume and discounted price match information.
Phone: (800) 975-4743 or (630) 245-1445
Email: sales@gridconnect.com

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

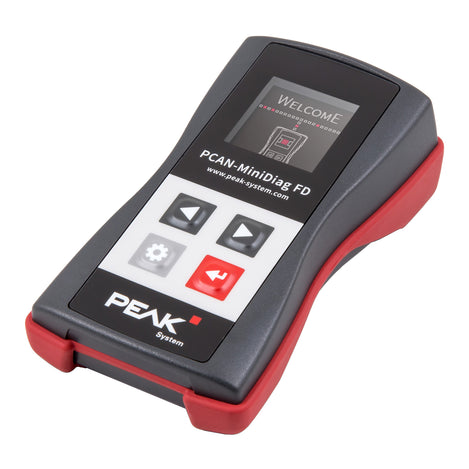

The PCAN-MiniDiag FD is a handheld diagnostic tool for CAN and CAN FD buses. The rugged, compact device has an OLED display and runs on three replaceable batteries. It is designed for harsh environments with an increased IP42 ingress protected case and membrane keyboard.

With the PCAN-MiniDiag FD, baud rate is automatically detected allowing for quick analysis of the network. The device uses bit timing measurements to determine the nominal bit rate for CAN and the data bit rate for CAN FD. Since the PCAN-MiniDiag FD runs in "listen-only" mode, connecting it to CAN networks will have no influence on the existing bus communications.

The MiniDiag provides the following information:

  • CAN bus termination resistance value
  • Bus load
  • Bit rate for both CAN and CAN FD
  • CAN and CAN FD error frame counts
  • CAN-High and CAN-Low voltage levels at the CAN connector



The PCAN-MiniDiag can be used with existing CAN networks and offers the new CAN FD (CAN with Flexible Data rate) protocol with higher data bandwidth. This allows for data transfers at a maximum of 64 data bytes per CAN FD frame, instead of the regular 8 data bytes, and has bit rates up to 10 Mbit/s. In this instance, CAN FD extensions are not applicable with existing networks at the CAN 2.0 A/B standard.



Package Contents :

  • PCAN-MiniDiag FD in plastic casing
  • Batteries (4x 1.5 V Micro AAA)
  • User manual (PDF format)
  • Quick Start Guide (PDF format)



Documents and Drivers

Documentation

PCAN MiniDiag FD Quick Start Guide View (PDF)
PCAN MiniDiag FD User Manual View (PDF)

Specifications

CERTIFICATIONS

CE

CONNECTOR(S)

D-Sub Connector

CURRENT

max. 100 mA

DIMENSIONS

119 x 64.9 x 36.5 mm (W x H x D)

DISPLAY

OLED (RGB) with 128 x 128 Pixel Resolution

HIGHSPEED CAN

ISO 11898-2

MPN

IPEH-003070

PINS

9-pole, assignment according to specification CiA® 303-1

PRODUCT POWER SUPPLY

3x Micro AAA with 1.2 or 1.5 Volt, replaceable

PRODUCT WEIGHT

164g (with batteries)

RADIO CHANNELS / BANDWIDTH

64 data bytes per CAN FD frame

SECURITY/PROTECTION

IP42

TEMPERATURE RANGE

  • Operating (with supplied batteries) : -10°C (-14°F) to +50°C (+122°F)
  • Operating (without supplied batteries) : -20°C (-4°F) to +70°C (+158°F)
  • Storage : -30°C (-22°F) to +80°C (+176°F)

TRANSCEIVER

MCP2558FD
