PCAN Repeater FD with 5 kV Isolation

$354.00

Leave a review

SKU: GC-CAN-REPEATER-FD

MPN: IPEH-004039

Manufacturer: Peak System Technik

Delivery: Ships within 7-14 business days
Qualifies for Free shipping to the continental US

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

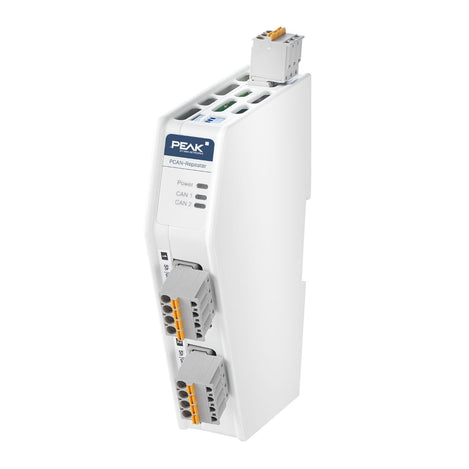

CAN CC and CAN FD repeater for decoupling bus segments

The PCAN-Repeater connects two CAN bus segments with up to 5 kV galvanic isolation, supporting both CAN CC and CAN FD at bit rates from 14 kbit/s to 8 Mbit/s. Its DIN rail housing and extended temperature range make it well-suited for industrial deployments.

No configuration is required

The repeater forwards all CAN messages and error frames 1:1 between ports, improving signal quality while remaining fully transparent to the bus, just like a length of cable. It's ideal for isolating two CAN segments or extending stub lines to support additional CAN nodes.

Note: Because CAN bus length is bit-rate dependent, the PCAN-Repeater cannot be used to extend total bus length. Each unit installed reduces the network's maximum physical length by an amount corresponding to its transit delay.

Pin Assignments

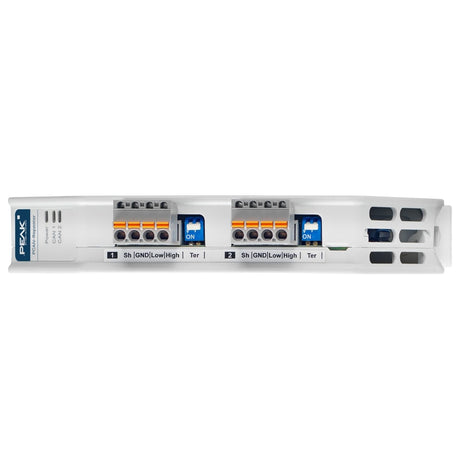

Both CAN ports are located on the front of the housing.

Package contents

  • PCAN-Repeater (IPEH-004039) in DIN rail plastic casing
  • 2 mating connectors 4-pin for CAN connections (Phoenix Contact: FKC 2,5/ 4-ST GY - 1756260)
  • 1 mating connector 3-pin for power supply connection (Phoenix Contact: FKC 2,5/ 3-ST GY - 1857772)
  • Manual in PDF format
  • Printed quick start guide

Features

  • Two High-speed CAN ports (ISO 11898-2) with up to 5 kV galvanic isolation between ports and from the power supply
  • Supports CAN CC (Classic 2.0) and CAN FD (ISO/non-ISO), 14 kbit/s to 8 Mbit/s
  • Zero-configuration, transparent 1:1 message and error-frame forwarding
  • Per-port selectable termination via front-panel switches
  • LED indicators for power, CAN traffic, and physical-layer errors
  • Automatic fault isolation and reconnection for shorted or failed segments
  • Low transit delay (~175 ns / ~35 meter equivalent)
  • DIN rail housing rated for -40 to +85 °C (-40 to +185 °F) industrial environments

Documents and Drivers

Documentation

PCAN-Repeater FD Quick Start Guide

PCAN-Repeater User Manual

MIgration Guide for switching from PCAN-Repeater DR to PCAN-Repeater FD

Specifications

Category

Specification

CAN Ports

Two High-speed CAN ports (ISO 11898-2)

CAN Protocol Support

CAN CC (Classic CAN 2.0) and CAN FD (ISO and non-ISO)

CAN Bit Rate

14 kbit/s up to 1 Mbit/s

CAN FD Data Field Bit Rate

14 kbit/s up to 8 Mbit/s (64 bytes max.)

CAN Transceiver

TI TCAN1044 or compatible

Connectors

  • 4-pin push-in spring terminal block (CAN)
  • 3-pin push-in spring terminal block (power supply), Phoenix Contact

Galvanic Isolation

Up to 5 kV (per IEC 60601-1) between both CAN ports, and between CAN and power supply

Termination

Selectable per CAN port via switches on housing front

Status Indicators

LEDs for power supply, CAN traffic, and physical-layer transmission errors

Fault Handling

  • Automatic disconnection of a defective CAN segment
  • Automatic reconnection once fault is resolved

Transit Delay

~175 ns (equivalent to ~35 m of cable)

Voltage Supply

10 to 30 V DC

Housing

Plastic, 27 mm width, DIN rail mount (EN 50022)

Operating Temperature

-40 to +85 °C (-40 to +185 °F)
