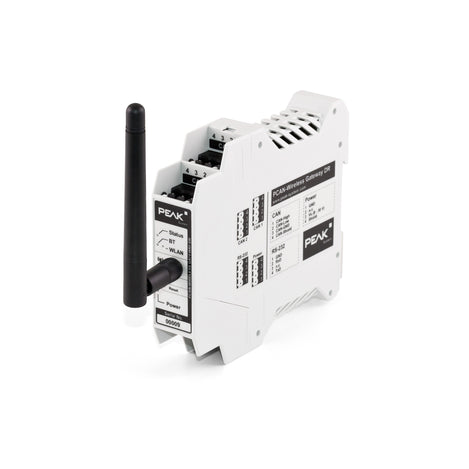

PCAN Wireless Gateway DR

$459.00

Leave a review

SKU: GC-CAN-WIRELESS-GW-DR

MPN: IPEH-004011

Manufacturer: PEAK-System

Delivery: Ships within 7-14 business days
Qualifies for Free shipping

Best price guaranteed!* Learn more.


Call now for volume and discounted price match information.
Phone: (800) 975-4743 or (630) 245-1445
Email: sales@gridconnect.com

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

The PCAN-Wireless Gateway DR connects different CAN busses over IP networks, providing two high-speed CAN interfaces and one WLAN connection. CAN frames can be wrapped in TCP or UDP message packets and are forwarded through the IP net from one device to another. With a DIN rail casing and support of extended temperature ranges, the PCAN Wireless Gateway DR is suitable for industrial environments.

The device's web interface will provide a variety of status information including the device settings, communication interfaces, and message routing. This gateway product requires 2 TCP connections, so a client socket and server socket is needed on each side of a pairing.

The Gateway offers three application options to operate;

  • PCAN Wireless Gateway DR to PCAN Wireless Gateway DR
  • PCAN Wireless Gateway DR to Virtual Gateway Software
  • PCAN Wireless Gateway DR to a custom program of TCP/UDP socket application

PCAN Wireless Gateway DR to PCAN Wireless Gateway DR
The connection of the CAN busses is by WLAN network and configuration of the routes is done via web interface.

PCAN Wireless Gateway DR to Virtual PCAN Software
This option provides access for Windows computers to devices over IP networks. The module is configured with two routes: one for receiving CAN data and one for sending data. Within the web interface, two matching routes are configured for sending and receiving data between the PC's IP address and PC.

In this application you can seamlessly use Peak System Software such as PCAN-Explorer and PCAN-View.

PCAN Wireless Gateway DR and PC via TCP/UDP Sockets
Operating between PCAN Wireless Gateway DR and PC via TCP/UDP sockets allows for communication with a socket interface of the remote site. A custom application can be written using standard TCP/UDP sockets (such as with Windows, Linux, and Android). For sending data to the PCAN-Wireless Gateway DR, the custom application acts as a client to open a connection to the server port on the device. For receiving data from the Gateway, it acts as a client and opens a connection to a server port of the custom application.

Features

PCAN-Wireless Gateway DR Features:

  • ARM9 Freescale iMX257 with 16 kByte Level 1 Cache and 128 kByte internal SRAM
  • 256 MByte NAND Flash and 64 MByte DDR2 RAM
  • Linux operating system (version 2.6.31)
  • RS-232 connector for serial data transfer (reserved for future use)
  • Connections for CAN, RS-232, and power supply via 4-pole screw-terminal strips (Phoenix)
  • Reboot and reset of the device to factory defaults with a reset button
  • Configuration of the network interfaces and the message forwarding through a web interface
  • Plastic casing (width: 22.5 mm) for mounting on a DIN rail (DIN EN 60715 TH35)
  • LEDs for device status, WLAN, and power supply
  • Voltage supply from 8 to 30 V
  • Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)


Wireless properties

  • WLAN IEEE 802.11 b/g
  • 2.4 GHz dipole antenna, connection via RP-SMA aerial socket
  • Data transmission using TCP or UDP
  • Bluetooth 2.1 + EDR, Class 1 (reserved for future use)


CAN properties

  • Two High-speed CAN channels (ISO 11898-2)
  • Bit rates from 5 kbit/s up to 1 Mbit/s
  • NXP PCA82C251 CAN transceiver
  • Galvanic isolation of the CAN channels up to 500 V against each other, against RS-232 and the power supply
  • Compliant with CAN specifications 2.0A and 2.0B

Documents and Drivers

Documentation
PCAN-Ethernet Gateway DR Manual View (PDF)
PCAN-Gateway Quick Start View (PDF)
Virtual PCAN-Gateway Manual View (PDF)
PCAN-Gateway Developer Documentation View (PDF)

Downloads
Virtual PCAN-Gateway Setup
PEAK-System installation package for device drivers and tools for Windows® 10, 8.1, 7 (32/64-bit) for PEAK PC interfaces.

Included tools: PEAK-CPL, PCAN-View, PLIN-View Pro, and Virtual PCAN-Gateway

Please note: Select the Virtual PCAN-Gateway from the available options during the installation.
Download (ZIP)
PCAN-Ethernet Gateway DR Package
This package is used to update the software and configuration website of the PCAN-Ethernet Gateway DR (IPEH-004010).
Download (ZIP)

PEAK-System PCAN Download Support
Packages Software APIs Documentation

Specifications

ANTENNAS

2.4 GHz dipole

CONNECTOR(S)

  • CAN
  • RS-232 connector for serial data transfer (reserved for future use)
  • power supply via 4-pole screw-terminal strips (Phoenix)

DIMENSIONS

22.5 x 99 x 114.5 (W x H x D)

ENCLOSURE

Plastic casing

INDICATORS LED

WLAN and power supply

INTERFACE(S)

web interface

MEMORY

  • ARM9 Freescale iMX257 with 16 kByte Level 1 Cache and 128 kByte internal SRAM
  • 256 MByte NAND Flash and 64 MByte DDR2 RAM

MOUNTING

DIN rail (DIN EN 60715 TH35)

MPN

IPEH-004011

PRODUCT POWER SUPPLY

Voltage supply from 8 to 30 V

PRODUCT WEIGHT

1 lb

PROTOCOLS

2 high-speed CAN channels (ISO 11898-2)

SUPPORTED OS

Linux version 2.6.31

TEMPERATURE RANGE

-40ºC to 85ºC (-40ºF to 185ºF)
