Perseus 140 Sensor Monitoring: No Kit (Perseus Monitoring 140 unit only)
$538.80
SKU: GC-HWG-PM-140
MPN: 600843
Manufacturer: HW Group sro
Kit Option
-
$538.80
-
$637.90
We Have You Covered
Product Information
Product Description
Perseus Monitoring 140 is a LAN-based monitoring device designed for remote environmental monitoring of critical on-site infrastructure. It supports up to 1000 variables from external sensors, leveraging 1-Wire UNI sensors via four RJ11 ports or RS-485 Modbus/RTU for industrial-grade connectivity. Multiple digital inputs/outputs (DI/DO) and a dedicated Water Leak Detection (WLD) port enhance its capabilities for data center monitoring and infrastructure protection.
Data Integration
The Perseus Monitoring 140 integrates data from external physical sensors and detectors with data from other HWg devices connected via LAN. Its open API provides seamless integration with XML, Modbus/TCP, and MQTT, enhancing interoperability for data center monitoring solutions.
Alerts
When anomalies occur, Perseus triggers SNMP alerts or email notifications, ensuring proactive monitoring and rapid response. Additionally, its data can be accessed through an open API that supports XML, Modbus/TCP, and MQTT.
Portal Connection
The LAN-based monitoring device integrates with the SensDesk Portal for centralized visibility, SNMP-based alerts, and in-depth analytics. When combined, they offer a powerful solution for professional applications with features such as graphs, SNMP, and device invalid alerts.
Unique Feature – Meters API
The Meters API allows Perseus Monitoring 140 to read sensor data from other devices (like the STE2 R2) on the network. This extra data can be used for further analysis or to trigger additional alerts.
Typical Applications:
- Remote machine monitoring
- Remote environmental monitoring of warehouse / storage spaces
- Remote monitoring of technical room (sites)
- Remote site data concentrators of all local sensors / meters
- Remote environmental monitoring within the cabinet or telco site
- Pharmaceutical / warehouse environment monitoring
- Remote base transceiver station monitoring
- Greenhouse monitoring

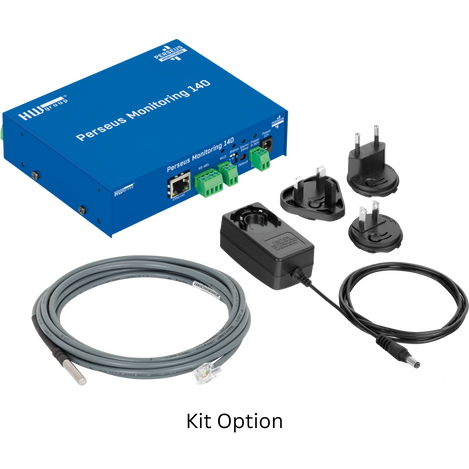

Kit Option Package includes
- Perseus Monitor 140 device x1
- Universal power supply x1
- Temperature sensor ( Temp-1Wire 3m IP67) x1
Order Summary
| SKU | Perseus Monitoring 140 | Power | Sensor | Manufacturer Part # (MPN) |
| GC-HWG-PM-140 | Yes | No adapter | No sensor | 600843 |
| GC-HWG-PM-140-T-SET | Yes | Universal adapter | Temperature | 600867 |
Features
- Ethernet: RJ45 (100BASE-T); WEB: Built-in web server
- 4xRJ11 port - max. 2 external sensors 1-Wire UNI per port
- RJ11 sensors: Temperature (with kit option)
- RS-485 (Modbus/RTU): 1x terminal block
- WLD: 1 zone for external Water Leak Detection sensing cable (cable not included)
- DO (Digital Outputs): 2x DO (relays)
- DI (Digital Inputs): 4x DI (dry contact)
- Device Alerts: SNMP trap, email
- Portal Alerts: Email, SMS / Calls, Device Invalid Alert
- Open API: SNMP, XML, Modbus/TCP, MQTT
- Professional product: IPv6, SNMP Traps, SNMP v3
- Security: Radius - IEEE 802.1X, Admin and user accounts, HTTPs (customer certificate)
- Meters API (LAN): HWg devices XML, Modbus/TCP, SNMP, MQTT
- Data processing: Condition & Actions, Virtual sensors, Scheduler
Documents and Drivers
Documentation
Perseus Monitoring 140 Flyer
Perseus Monitoring 140 User Manual
CERTIFICATES
Perseus Monitoring 140 EU declaration of conformity
Specifications
FEATURES
Alerts
SNMP trap, email, (SMS / Calls with external SMS GW)
Professional product
IPv6, SNMP Traps, SNMPv3
Security
Radius - IEEE 802.1X, Admin and user accounts, HTTPs (customer certificate)
INTERFACES
Sensors
4× RJ11 port – 1-Wire / 1-Wire UNI
Meters API
HWg XML, Modbus/TCP, MQTT, SNMP
RS-485 (Modbus/RTU)
1× 4-pin terminal block (with 12V)
WLD
1 zone for external Water Leak Detection sensing cable (cable not included)
DO (Digital Outputs)
2× DO (relays)
DI (Digital Inputs)
4× DI (dry contact)
TECHNICAL SPECS
Ethernet
RJ45 (100BASE-T)
Power
9-30V (12V, 1.5A)
Operating temperature
-30 °C to 85 °C (-22 °F to 185 °F)
Enclosure
Metal case
Dimensions
35 × 111 × 140 mm (1.4 x 4.4 x 5.5 in)
