Perseus 145 Sensor Monitoring with Cellular LTE Backup: No Kit (Perseus 145 unit only)

$838.80

Leave a review

SKU: GC-HWG-PM-145

MPN: 600844

Manufacturer: HW Group sro

Delivery: Ships within 7-14 business days
Qualifies for Free shipping to the continental US

Kit Option

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Perseus Monitoring 145 is a powerful remote monitoring device designed for environmental monitoring and industrial applications. It supports LAN and LTE connectivity, ensuring uninterrupted data collection even during Ethernet outages. With the ability to handle up to 1000 sensor variables, it integrates seamlessly with various external sensors via RJ11 (1W-UNI) and RS-485 (Modbus/RTU) ports. Additional digital inputs/outputs (DI/DO) and a dedicated Water Leak Detection (WLD) port provide flexible monitoring options.



Seamless Data Integration

  • Collects data from external sensors and HW Group devices over LAN.

  • Enables custom automation through Lua scripting, scheduled events, and calendar-based rules.

  • Supports real-time analysis of monitored conditions for proactive response.



Reliable Alerts & Open API Access

  • Sends instant SMS and email alerts or SNMP Trap notifications when critical thresholds are met.

  • Provides seamless system integration with Open API support (XML, Modbus/TCP, MQTT).



Enhanced Monitoring with SensDesk Portal

  • Connects to SensDesk Portal for advanced remote monitoring, including real-time graphs, SNMP management, and device status alerts.



Advanced Meters API for Network-Wide Monitoring

  • Reads sensor data from other HW Group devices over LAN (e.g., STE2 R2) to enhance analysis and alerting.



Built-in LTE Modem & SMS Gateway

  • Functions as an LTE modem and SMS gateway, ensuring real-time notifications and device connectivity, even in remote or network-limited locations.



Typical Applications:

  • Remote environmental monitoring (warehouses, data centers, storage spaces).
  • Machine condition monitoring in industrial facilities.
  • Data collection from remote sensors in cabinets, telco sites, and off-grid locations.
  • Pharmaceutical storage monitoring to ensure regulatory compliance.
  • Greenhouse monitoring for temperature, humidity, and CO2 levels.
  • Base transceiver station (BTS) monitoring for telecom infrastructure.

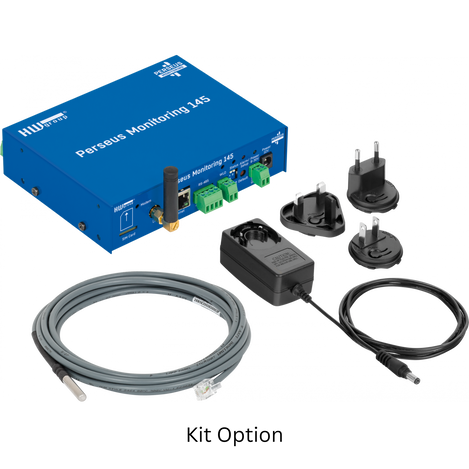

Kit Option Includes

  • Perseus Monitoring 145 unit x1
  • Universal power adaptor x1
  • Temperature sensor (Temp-1Wire 3m IP67) x1
  • LTE antenna (quadbank pigtail) x1



Order Summary

 SKU Perseus 145 Power Sensor LTE Antenna Manufacturer Part # (MPN)
GC-HWG-PM-145 Yes No adapter No sensor No antenna 600844
GC-HWG-PM-145-T-SET Yes Universal adapter Temp-1Wire 3m IP67 Yes 600868

Features

  • Ethernet: RJ45 (100BASE-T); WEB: Built-in web server
  • LTE: Global
  • 4xRJ11 port - max. 2 external sensors 1-Wire UNI per port
  • RJ11 sensors: Temperature, Relative Humidity (Indoor / Outdoor), Voltage, Current (0-30A or 4-20mA) and much more (Kit includes temperature sensor; other sensors sold separately)
  • RS-485 (Modbus/RTU): 1x terminal block
  • WLD: 1 zone for external Water Leak Detection sensing cable (cable sold separately)
  • DO (Digital Outputs): 2x DO (relays)
  • DI (Digital Inputs): 4x DI (dry contact)
  • Detectors: Smoke, door contact, fan failure detector, power presence, etc
  • Device Alerts: SNMP trap, email, SMS / Calls
  • Portal Alerts: Email, SMS / Calls, Device Invalid Alert
  • Open API: SNMP, XML, Modbus/TCP, MQTT
  • Professional product: IPv6, SNMP Traps, SNMP v3
  • Security: Radius - IEEE 802.1X, Admin and user accounts, HTTPs (customer certificate)
  • Meters API (LAN): HWg devices XML, Modbus/TCP, SNMP, MQTT
  • Data processing: Condition & Actions, Virtual sensors, Scheduler

Documents and Drivers

Documentation

Perseus Monitoring 145 Flyer

Perseus Monitoring 145 User Manual

Perseus Monitoring 145 First Steps

CERTIFICATES

Perseus Monitoring 145 EU declaration of conformity

Specifications

FEATURES

Alerts

SNMP trap, email, SMS / Calls

LTE

Global

Open API

SNMP, XML, Modbus/TCP, MQTT

Professional product

IPv6, SNMP Traps, SNMPv3

Security

Radius - IEEE 802.1X, Admin and user accounts, HTTPs (customer certificate)

INTERFACES

Sensors

4× RJ11 port – 1-Wire / 1-Wire UNI

Meters API

HWg XML, Modbus/TCP, MQTT, SNMP

RS-485 (Modbus/RTU)

1× 4-pin terminal block (with 12V)

WLD

1 zone for external Water Leak Detection sensing cable (cable not included)

DO (Digital Outputs)

2× DO (relays)

DI (Digital Inputs)

4× DI (dry contact)

TECHNICAL SPECS

Ethernet

RJ45 (100BASE-T)

Power

9-30V (12V, 1.5A)

Operating temperature

-30°C – 65°C (-22°F ~ 149°F)

Enclosure

Metal case

Dimensions

35 × 111 × 140 mm  (1.4 x 4.4 x 5.5 in)
