Perseus 150 Sensor Monitoring for Rack Systems
Perseus 150 Sensor Monitoring for Rack Systems
Product Images
Perseus 150 Sensor Monitoring for Rack Systems: No Kit (Perseus 150 unit only)
$838.70
SKU: GC-HWG-PM-150
MPN: 600845
Manufacturer: HW Group sro
Kit Option
-
$838.70
-
$953.10
-
$1,198.80
We Have You Covered
Product Information
Product Description

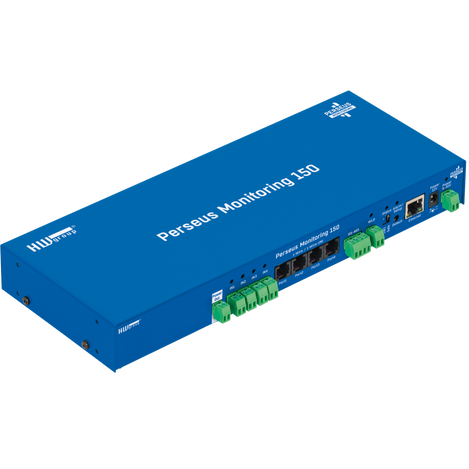

Perseus Monitoring 150 is a 1U device designed for remote monitoring in 19” rack systems, such as data centers and AV installations.
It connects to various external sensors, including:
- Temperature & humidity sensors
- Current & voltage meters
- Relay/dry contact detectors
- Water leak detection (WLD) cables
It also supports third-party meters via LAN or Modbus/RTU.
This system gathers data from connected sensors and other HWg devices over LAN. It uses local conditions, Lua scripting, and scheduling tools to analyze measurements effectively.
Alerts & Data Access
- Sends alerts via email or SNMP Trap.
- Provides real-time data through an Open API (XML, Modbus/TCP, MQTT).
Perseus 150 can also integrate with the SensDesk Portal, making it a powerful solution for professional monitoring applications.
A key feature of the Perseus series is the Meters API, which allows it to pull sensor data from other devices (e.g., STE2 R2) over LAN for enhanced analysis and alerting.
Typical Applications:
- Remote site data concentrators from all local sensors / meters
- Remote environmental monitoring inside the cabinet or telco site
- Data Center / Single rack monitoring
- Remote technical room monitoring
- Telecommunication installations
- Remote infrastructure monitoring
Kit Option Packages

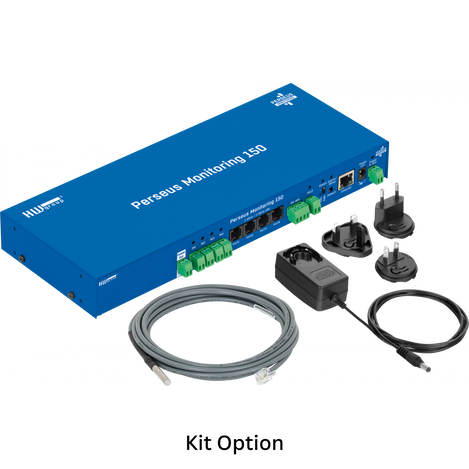

Include Kit
- 1x Persus Monitoring 150
- 1x Universal Power Adapter
- 1x Temperature sensor (Temp-1Wire 3m IP67)

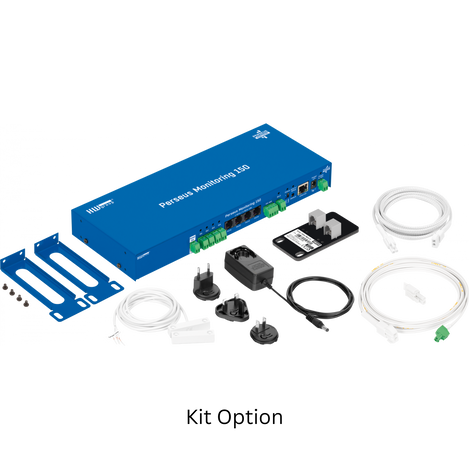

Include Kit with RM2 Brackets
- 1x Persus Monitoring 150
- 1x Universal Power Adapter
- 1x Temperature sensor (Temp-1Wire Rack19)
- 1x WLD sensing cable A 2m
- 1x Door contact MK4
- 1x RM2 brackets 19" Set
Order Summary
| SKU | Perseus 150 | Power | Sensors | RM2 Brackets 19" | Manufacturer Part # (MPN) |
| GC-HWG-PM-150 | Yes | PoE, No adapter | No sensor | No brackets | 600845 |
| GC-HWG-PM-150-T-SET | Yes | Universal adapter | Temperature (Temp-1Wire 3m IP67) | No brackets | 600864 |
| GC-HWG-PM-150-T-SET-RM | Yes | Universal adapter |
|
Yes | 600869 |
Features
- Ethernet: RJ45 (100BASE-T); WEB: Built-in web server
- 8xRJ11 port: - max. 2 external sensors 1-Wire UNI per port
- RJ11 sensors: Temperature (included in Kit and Kit with RM2 Brackets options), Relative Humidity (Indoor / Outdoor), Voltage, Current (0-30A or 4-20mA) and much more (sensors sold separately)
- RS-485 (Modbus/RTU): 1x terminal block
- WLD: 1 zone for external Water Leak Detection sensing cable (included in Kit with RM2 Bracket option)
- DO (Digital Outputs): 4x DO (relays)
- DI (Digital Inputs): 16x DI (dry contact included in Kit with RM2 Bracket option)
- Detectors: Smoke, door contact (included in Kit with RM2 Brackets option), fan failure detector, power presence, etc. (detectors sold separately)
- Device Alerts: SNMP trap, email, (SMS / Calls with external SMS GW (sold separately))
- Portal Alerts: Email, SMS / Calls, Device Invalid Alert
- Open API: SNMP, XML, Modbus/TCP, MQTT
- Professional product: IPv6, SNMP Traps, SNMP v3
- Security: Radius - IEEE 802.1X, Admin and user accounts, HTTPs (customer certificate)
- Meters API (LAN): HWg devices XML, Modbus/TCP, SNMP, MQTT
- Data processing: Condition & Actions, Virtual sensors, Scheduler
Documents and Drivers
Documentation
Perseus Monitoring 150 Flyer
Perseus Monitoring 150 User Manual
CERTIFICATES
Perseus Monitoring 150 EU declaration of conformity
Specifications
FEATURES
Alerts
SNMP trap, email, SMS / Calls with SMS GW (sold separately)
Open API
SNMP, XML, Modbus/TCP, MQTT
Professional product
IPv6, SNMP Traps, SNMPv3
Security
Radius - IEEE 802.1X, Admin and user accounts, HTTPs (customer certificate)
INTERFACES
Sensors
8× RJ11 port – 1-Wire / 1-Wire UNI
Meters API
HWg XML, Modbus/TCP, MQTT, SNMP
RS-485 (Modbus/RTU)
| 1× 4-pin terminal block (with 12V) |
WLD
| 1 zone for external Water Leak Detection sensing cable (included in Kit with RM2 Brackets option) |
DO (Digital Outputs)
| 4× DO (relays) |
DI (Digital Inputs)
16× DI (dry contact)
TECHNICAL SPECS
Ethernet
RJ45 (100BASE-T)
Power
| 9-30V (12V, 1.5A) |
Operating temperature
-30°C - 85°C (-22°F ~ 185°F)
Enclosure
Metal case
Mounting

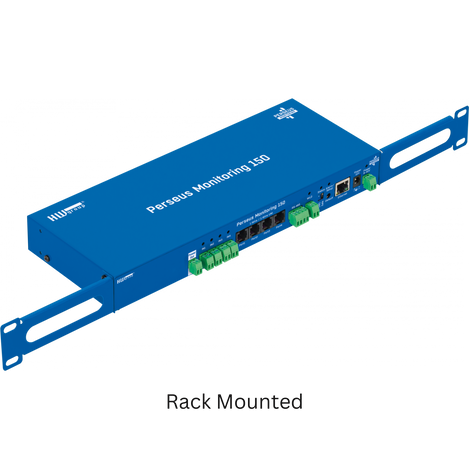

| 1U/19" rack |
Dimensions
| 35 × 111 × 290 mm (1.4 x 4.4 x 11.4 in) |
