Perseus 155 Sensor Monitoring with Cellular LTE Backup
Perseus 155 Sensor Monitoring with Cellular LTE Backup
Product Images
Perseus 155 Sensor Monitoring with Cellular LTE Backup: No Kit (Perseus 155 unit only)
$1,078.80
SKU: GC-HWG-PM-155
MPN: 600846
Manufacturer: HW Group sro
Kit Option
-
$1,078.80
-
$1,185.10
We Have You Covered
Product Information
Product Description
The Perseus Monitoring 155 is a sophisticated 1U solution designed for a 19" rack monitoring system. It provides multi-source data integration, automation, and reliable connectivity, making it ideal for data centers and AV installations.
Key Capabilities & Connectivity:
- Sensor & Detector Support: Connect external physical sensors (temperature, humidity, current, voltage, etc.), detectors (relay/dry contact), or WLD sensing cables for water leak detection.
- 3rd-Party Integration: Supports external meters and sensors via LAN or Modbus/RTU.
- LTE Backup: Ensures continued operation even if Ethernet fails.
Data Collection & Analysis:
- Multi-Source Data Integration: Combines readings from connected sensors and detectors, as well as data from other HWg devices over LAN.
- Automation & Scripting: Utilizes Lua scripting, scheduling, and local conditions to process and analyze collected data.
Alerts & API Integration:
- Alert Notifications: Sends alerts via Email, SNMP Trap, SMS, and calls.
- Open API Support: Access data through XML, Modbus/TCP, or MQTT for seamless integration into existing monitoring systems.
Portal Connectivity & Meters API:
- SensDesk Portal Support: Works with SensDesk technology for remote monitoring and management.
- LAN-Based Sensor Reading: The Meters API enables Perseus to pull sensor data from other LAN-connected devices (e.g., STE2 R2) for advanced analysis and alerting.
Built-in LTE Modem & SMS Gateway:
The integrated LTE modem not only ensures connectivity but also acts as an SMS gateway for Perseus and other connected HW group devices.
Typical Applications:
- Remote site data concentrators from all local sensors / meters
- Remote environmental monitoring inside the cabinet or telco site
- Data Center / Single rack monitoring
- Remote technical room monitoring
- Telecommunication installations
- Remote infrastructure monitoring

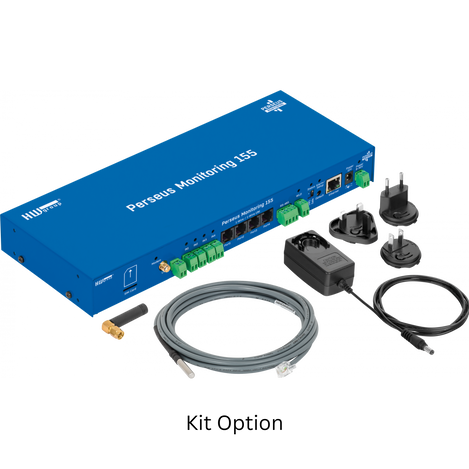

Kit Package Option
- 1x Perseus Monitoring 155 unit
- 1x Universal power adapter
- 1x Temp-1Wire 3m IP67 sensor cable
- 1x LTE antenna quadband pigtail
Order Summary
| SKU | Perseus 155 | Power | Sensors | LTE Antenna | Manufacturer Part # (MPN) |
| GC-HWG-PM-155 | Yes | No adapter | No sensor | No antenna | 600846 |
| GC-HWG-PM-155-T-SET | Yes | Universal adapter | Temp-1Wire 3m IP67 | Yes | 600865 |
Features
- Ethernet: RJ45 (100BASE-T); WEB: Built-in web server
- LTE: Global
- 8xRJ11 port: - max. 2 external sensors, 1-Wire UNI per port
- RJ11 sensors: Temperature, Relative Humidity (Indoor / Outdoor), Voltage, Current (0-30A or 4-20mA) and much more (temperature included in Kit option, others sold separately)
- RS-485 (Modbus/RTU): 1x terminal block
- WLD: 1 zone for external Water Leak Detection sensing cable (cable sold separately)
- DO (Digital Outputs): 4x DO (relays)
- DI (Digital Inputs): 16x DI (dry contact)
- Detectors: Smoke, door contact, fan failure detector, power presence, etc. (detectors sold separately)
- Device Alerts: SNMP trap, email, SMS / Calls
- Portal Alerts: Email, SMS / Calls, Device Invalid Alert
- Open API: SNMP, XML, Modbus/TCP, MQTT
- Professional product: IPv6, SNMP Traps, SNMP v3
- Security: Radius - IEEE 802.1X, Admin and user accounts, HTTPs (customer certificate)
- Meters API (LAN): HWg devices XML, Modbus/TCP, SNMP, MQTT
- Data processing: Condition & Actions, Virtual sensors, Scheduler
Documents and Drivers
Documentation
Perseus Monitoring 155 Flyer
Perseus Monitoring 155 User Manual
Certificates
Perseus Monitoring 155 EU declaration of conformity
Specifications
FEATURES
Alerts
SNMP trap, email, SMS / Calls
LTE
| Global |
Open API
SNMP, XML, Modbus/TCP, MQTT
Professional product
IPv6, SNMP Traps, SNMPv3
Security
Radius - IEEE 802.1X, Admin and user accounts, HTTPs (customer certificate)
INTERFACES
Sensors
8× RJ11 port – 1-Wire / 1-Wire UNI
Meters API
HWg XML, Modbus/TCP, MQTT, SNMP
RS-485 (Modbus/RTU)
| 1× 4-pin terminal block (with 12V) |
WLD
| 1 zone for external Water Leak Detection sensing cable (sold separately) |
DO (Digital Outputs)
4× DO (relays)
DI (Digital Inputs)
| 16× DI (dry contact) |
TECHNICAL SPECS
Ethernet
| RJ45 (100BASE-T) |
Power
| 9-30V (12V, 1.5A) |
Operating temperature
-30°C - 85°C (-22°F ~ 185°F)
Enclosure
| Metal case |
Mounting
1U/19" rack
Dimensions
35 × 111 × 290 mm (1.4 x 4.4 x 11.4 in)
