PLIN-LWL LIN Optical Coupler
PLIN-LWL LIN Optical Coupler

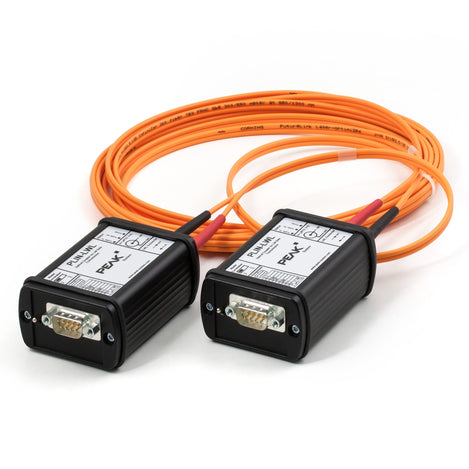

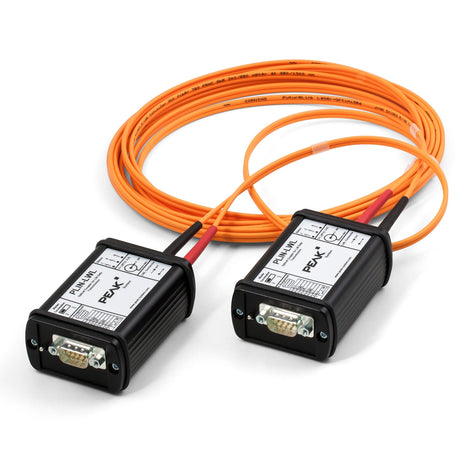

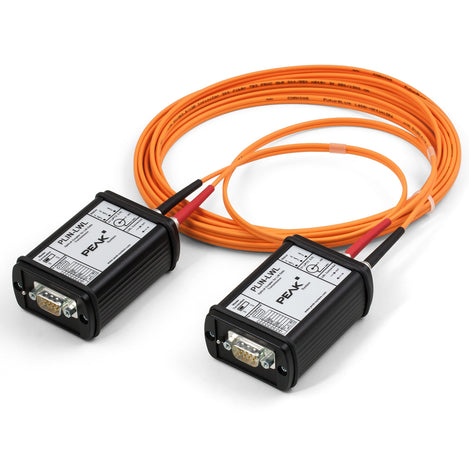

Product Images
PLIN-LWL LIN Optical Coupler: 5 Meter - No Power Supply
$1,059.00
SKU: GC-CAN-LIN-LWL-NOPS
MPN: IPEH-004049-5m
Manufacturer: Peak System Technik
Phone: (800) 975-4743 or (630) 245-1445
Email: sales@gridconnect.com
Cable Length
-
$1,059.00
-
$1,089.00
Power Supply
-
$1,059.00
-
$1,159.00
We've Got You Covered
1 year comprehensive warranty support for all products
30 day money back guarantee
*some exceptions apply
Product Information
Product Description
The PLIN-LWL LIN Optical Coupler allows for the replacement of a LIN network segment with a fiber optic line. The cables are designed for use in hazardous areas subject to explosions or electromagnetic susceptibility such as EMI/EMC measurements.
The Optical Coupler is available in 5 meter or 10 meter cable length with 62.5/125 µm duplex line ST connectors in an aluminum casing.
The module comes with the option of a 9VDC US 110V power supply. It is also recommended to use a shielded cable for the supply and for LIN with additional EMC requirements.
Order Summary
SKU |
Cable Length |
Power Supply |
Manufacturer Part # (MPN) |
|---|---|---|---|
| GC-CAN-LIN-LWL | 5m | 2x 9VDC US 110V power supplies | IPEH-004049-5m |
| GC-CAN-LIN-LWL-NOPS | 5m | No Power Supply | IPEH-004049-5m |
| GC-CAN-LIN-LWL-10M | 10m | 2x 9VDC US 110V power supplies | IPEH-004049-10m |
| GC-CAN-LIN-LWL-10M-NOPS | 10m | No Power Supply | IPEH-004049-10m |
Documents and Drivers
Documentation
PCAN-LWL User Manual
Downloads
Device Driver Setup - Windows® 11 & 10
Installation package with device drivers and tools for PC interfaces. Includes tools: PEAK-Settings, CAN monitor PCAN-View, LIN monitor PLIN-View Pro, Virtual PCAN-Gateway
Device Driver Setup - Outdated Windows Versions
Device driver for Linux
Device drivers for PEAK CAN interfaces running on Kernel 2.6 and higher.
PEAK-System PCAN DOWNLOAD SUPPORT
Specifications
Certifications
CE
Connector(s)
9 pin D-Sub
Dimensions
60 mm x 35 mm x 80 mm
EMC Directive
2014/30/EU
Enclosure
Aluminum casing
Indicators LED
LED display for power and transceiver status
MPN
IPEH-004049
Pins
9 pin D-Sub
Power Consumption
max. 50 mA (at 12V)
Power Supply
12V power supply unit or 9 pin D-Sub connector
Temperature Range
- Storage: -40ºC to 100ºC (-40ºF to 212ºF)
- Operational: -40ºC to 85ºC (-40ºF to 185ºF)
Transceiver
TJA1028T LIN
Voltage
Supply Voltage : 8 to 30 V DC
