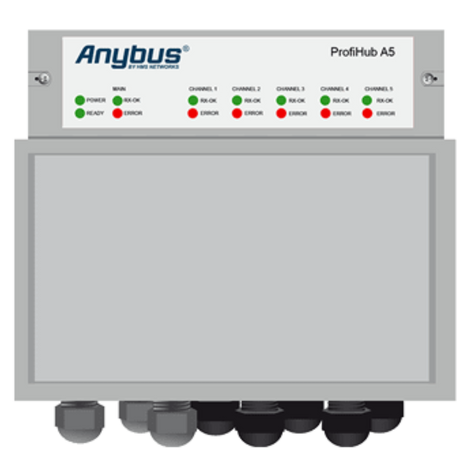

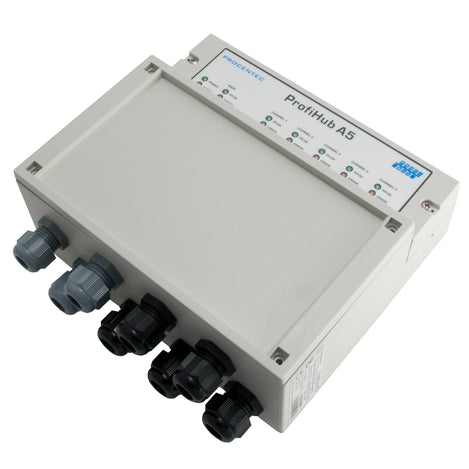

PROFIBUS Hub & Repeater ProfiHub A5

$2,349.00

Leave a review

SKU: GC-PB-PROFIHUB-A5

MPN: 16010

Manufacturer: Procentec

Stock Status: In stock

Delivery: Ships same or next business day
Qualifies for Free shipping

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

The ProfiHub A5 is an advanced, flexible and robust network component for PROFIBUS DP installations, providing the unique capability to implement long multi-device spur lines and backbone structures with star/tree segments in IP 65 applications.   The days of one long daisy chain installation are over!    With the ProfiHub A5, a whole new way of designing PROFIBUS DP Networks is possible.





With 5 Galvanic isolated channels (segments) and each channel capable of handling up to 31 devices, each ProfiHub A5 can accommodate a maximum of 155 devices.  With no limit in serial placement or cascading of ProfiHubs, you can arrange your network to meet your needs and budget.

Because the ProfiHub creates isolated segments, the slave devices can now be removed and added during operation!  Also electrical bus problems and EMC disturbances in a segment do not spread to the other segments. The intelligent logic and isolation circuits of the ProfiHub do not change the bit width. This also means there is no limit to how many ProfiHubs are connected in series!

Features

  • Each channel complies to the DP - RS 485 specifications
  • Each channel has status and error display
  • Integrated termination facility for each channel and main bus
  • Hot slave insertion and removal during operation
  • Grounding concept is configurable
  • Standard glands can be replaced with M12
  • Suitable for all DP cables

Documents and Drivers

Documentation

ProfiHub A5 Product Brief

ProfiHub A5 Manual

ProfiHub A5 Drilling Plan

Specifications

Cable Length

1200 m maximum cable line length for each channel

Channels

  • 5 Galvanic isolated channels (segments)
  • 31 devices per channel

Connector(s)

On-board DB9 female connector for maintenance activities

Dimensions

213 x 210 x 95 mm

Enclosure

IP65

MPN

16010

Product Weight

800 g

Security/Protection

Short Circuit Protection for all channels

Transmission Speed

  • 9600 bps to 12 Mbps
  • Automatic transmission speed detection
