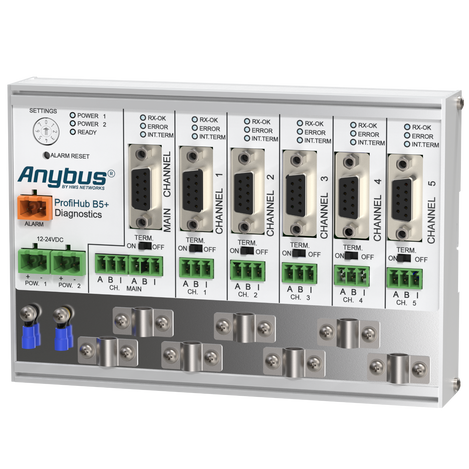

PROFIBUS Repeater & Hub with Redundancy - ProfiHub B5+R

$2,366.00

Leave a review

SKU: GC-PB-PROFIHUB-B5-R

MPN: 17020R

Manufacturer: Procentec

Stock Status: In stock

Delivery: Ships same or next business day
Qualifies for Free shipping to the US

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

The ProfiHub B5+R is a DIN rail mount PROFIBUS multi-channel repeater with five (5) galvanically isolated channels, in an IP20 enclosure. The B5+R supports Redundant PROFIBUS Channels.  Create star or tree-shaped networks or isolate a problem device on its own segment.  Up to 31 devices can be connected per channel (segment).  The B5+R also eliminates the need for spur lines, which are often sources of network problems in PROFIBUS DP networks.

Standard repeaters provide one new segment, but with the ProfiHub B5+R, 5 new segments are created.  Combined with the main or backbone channel, there are total of 5+1 = 6 segments connected to the B5+R.    Highly segmented PROFIBUS networks are more reliable since problems with individual devices stay within the segment and the galvanic isolation prevents the propagation of disturbances to the rest of the network.   The ProfiHub is often used for Motor Control Centers (MCCs) to help isolate each “bucket” from the next.  MCCs are notorious for injecting noise on PROFIBUS cables, and by isolating each bucket, the noise stays there and communications are not disrupted on the rest of the network.

The B5+R sports several Redundancy features which can further improve the reliability of the network.   Redundant power supplies are possible, and also the ability to create cable redundancy between ProfiHubs (or ComBricks) further improves reliability in the event of a cable break.

The B5+R comes with a Diagnostic Slave capability, allowing the host system to gather information about the health of the PROFIBUS Network from the ProfiHub as a slave device.   Diagnostic information provided to the PLC includes Statistics, Bus Channel information and network problems.  The Diagnostic slave is activated via the rotary switch, and using the diagnostic slave does not change the repeating operation of the ProfiHub.

5 Galvanic isolated channels (segments)

  • Each channel capable of handling up to 31 devices
  • 5 channels accommodate a maximum of 155 devices _ 31 devices on the Main Channel
  • No limit in serial placement or cascading of ProfiHubs
  • Switchable termination on each segment

Redundancy

  • Redundant power supply input
  • Redundancy cable option for 2 channels
  • Alarm contact related to the redundant power supply and channels

ProfiHub B5+R creates isolated segments for Spur line applications

  • slave devices can now be removed and added during operation
  • electrical bus problems and EMC disturbances in a segment do not spread to the other segments
  • intelligent logic and isolation circuits of the ProfiHub do not change the bit width
  • no limit to how many ProfiHubs are connected in series

ProfiHub B5+R creates isolated segments

Other benefits include:

  • Built-in Diagnostic Slave capability
  • Short circuit protection on each channel
  • Compact and robust construction
  • Screw terminals and DB9 connectors can be mixed
  • Conveniently arranged networks
  • Extendable installations
  • Cost savings through reduced installation complexity

Features

  • 5 Isolated Channels
  • 31 Devices per channel
  • DP - RS 485 specifications for each channel
  • Each channel has status and error display
  • Each channel has short circuit protection
  • Max 1200 m spur line length (depends on baudrate)
  • Configurable grounding system
  • Integrated termination facilities
  • Bus redundancy option in Hub mode
  • IP 20 classification

Documents and Drivers

Documentation

ProfiHub B5+R Product Brochure

ProfiHub B5+R User Manual

ProfiHub B5+R CAD Drawing

ProfiHub B5+R EMC Declaration

Specifications

Baud Rate

9.6 Kbps to 12 Mbps (automatic detection)

Cable Length

1200 m spur line length (depends on transmission speed)

Cascading Depth

No limit in cascading

Certifications

CE, FCC, UL, EN55024, EN55022 + C1

Channels

  • 5 Isolated channels (repeater segments)
  • 31 devices per channel

Connector(s)

DB9 and screw connectors

Current

Input 24 VDC: 73mA

Dimensions

167 x 113 x 35 mm

Enclosure

IP20 (IEC/EN 60529), Aluminum

Humidity

Relative air humidity: 95%

Indicators LED

Power and Communication Status

Mounting

DIN Rail

MPN

17020R

Power

Nominal power use: 1.75 W

Product Weight

484 g

Protocols

Transparent for all PROFIBUS DP protocols in Hub

Switch Option

Integrated Termination Switches

Temperature Range

‐25°C to +70°C (-13°F to +158°F)

Voltage

  • Operating: 12 to 24 VDC
  • Absolute Max Rated: 9 to 31 VDC
